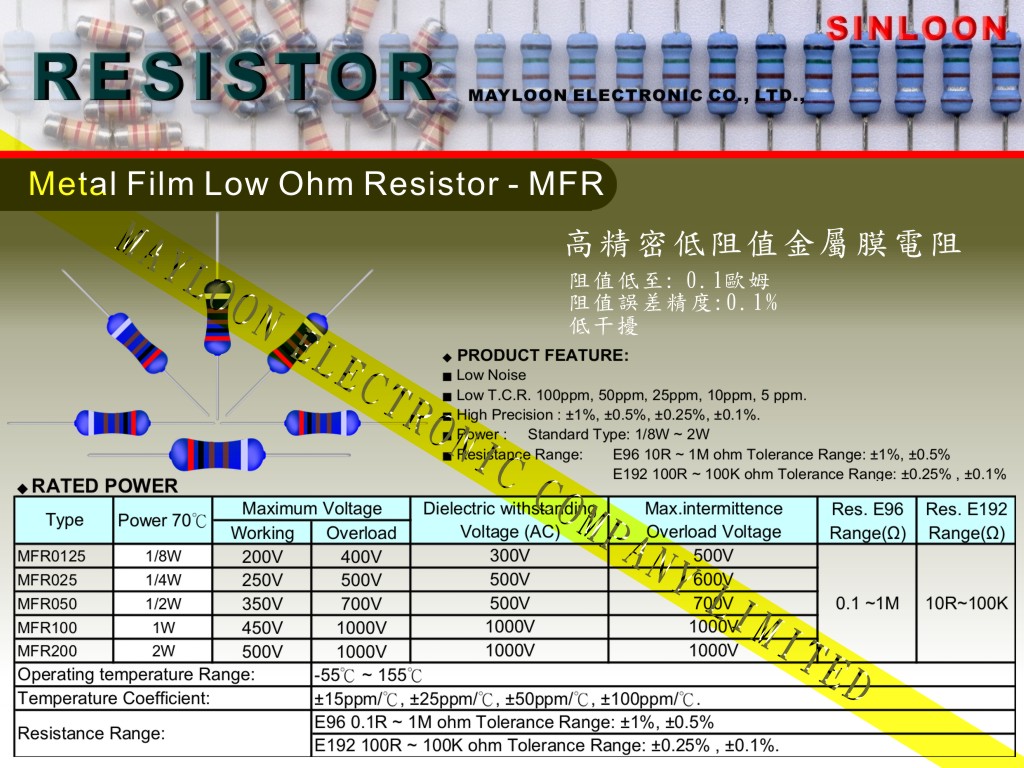

高精密低阻值金屬膜電阻
Metal Film Resistor - MFR Series
 PRODUCT FEATURE: |
|||||||||
| Low cost, high performance. | |||||||||
| High power with small size for significant space savings. | |||||||||
| Excellent long - term stability. | |||||||||
| Variety of packing - bulk, strip pack, 26mm and 52mm tape and reel, cut and formed or radial Pane | |||||||||
| DIMENSION (mm) |
SINLOON® | ||||||||
| Power: | STYLE | Dimension (mm) |  |
||||||
| L | ΦD | H | Φd | ||||||
| 1/4WS | MFS025 | 3.2±0.2 | 1.8±0.3 | 28±2 | 0.430.02 | ||||
| 1/2WS | MFS050 | 6.0±0.2 | 2.3±0.3 | 28±2 | 0.50.02 | ||||
| 1WS | MFS100 | 9±0.5 | 3.2±0.5 | 26±2 | 0.60.02 | ||||
| 2WS | MFS200 | 11.0±0.5 | 4.5±0.5 | 35±2 | 0.70.02 | ||||
| 3WS | MFS300 | 15.0±0.5 | 5.0±0.5 | 32±2 | 0.80.02 | ||||
| 1/8W | MFR0125 | 3.3±0.4 | 1.8±0.3 | 29±2.0 | 0.45±0.03 | ||||
| 1/4W | MFR025 | 6.3±0.5 | 2.3±0.3 | 29±2.0 | 0.55±0.03 | ||||
| 1/2W | MFR050 | 9.0±0.5 | 3.2±0.5 | 26±2.0 | 0.65±0.03 | ||||
| 1W | MFR100 | 11.5±1.0 | 4.5±0.5 | 35±2.0 | 0.78±0.03 | ||||
| 2W | MFR200 | 15.5±1.0 | 5.0±0.5 | 32±2.0 | 0.78±0.03 | ||||
| RATED POWER |
|||||||||
| Power 70℃ | Type | Maximum Voltage | Dielectric withstanding | Max.intermittence | Res. E96 | Res. E192 | |||
| Working | Overload | Voltage (AC) | Overload Voltage | Range(Ω) | Range(Ω) | ||||
| 1/4WS | MFS025 | 200V | 400V | 300V | 400V | 10 ~1M | 100R~100K | ||
| 1/2WS | MFS050 | 250V | 600V | 500V | 600V | 10 ~1M | 100R~100K | ||
| 1WS | MFS100 | 350V | 700V | 700V | 700V | 10 ~1M | 100R~100K | ||
| 2WS | MFS200 | 500V | 1000V | 1000V | 1000V | 10 ~1M | 100R~100K | ||
| 3WS | MFS300 | 500V | 1000V | 1000V | 1000V | 10 ~1M | 100R~100K | ||
| 1/8W | MFR0125 | 200V | 400V | 300V | 500V | 0.1 ~1M | 10R~100K | ||
| 1/4W | MFR025 | 250V | 500V | 500V | 600V | ||||
| 1/2W | MFR050 | 350V | 700V | 500V | 700V | ||||
| 1W | MFR100 | 450V | 1000V | 1000V | 1000V | ||||
| 2W | MFR200 | 500V | 1000V | 1000V | 1000V | ||||
| Operating temperature Range: | -55℃ ~ 155℃ |  |
|||||||
| Temperature Coefficient: | ±15ppm/℃, ±25ppm/℃, ±50ppm/℃, ±100ppm/℃. | ||||||||
| Resistance Range: | E96 0.1R ~ 1M ohm Tolerance Range: ±1%, ±0.5% | ||||||||
| E192 100R ~ 100K ohm Tolerance Range: ±0.25% , ±0.1%. | |||||||||
