Metal Film Resistor

小型金屬膜電阻-Miniature Style Resistor -TH - Resistor Series

Resistor 小型化金屬膜電阻

RODUCT FEATURE:
Low cost, high performance.
High power with small size for significant space savings.
Excellent long - term stability.
Variety of packing - bulk, strip pack, 26mm and 52mm tape and reel, cut and formed or radial Pane

DIMENSION (mm)							SINLOON®
Power:	STYLE	Dimension (mm)
Power:	STYLE	L	ΦD	H	Φd
1/4WS	MFS025	3.2±0.2	1.8±0.3	28±2	0.430.02
1/2WS	MFS050	6.0±0.2	2.3±0.3	28±2	0.50.02
1WS	MFS100	9±0.5	3.2±0.5	26±2	0.60.02
2WS	MFS200	11.0±0.5	4.5±0.5	35±2	0.70.02
3WS	MFS300	15.0±0.5	5.0±0.5	32±2	0.80.02
1/8W	MFR0125	3.3±0.4	1.8±0.3	29±2.0	0.45±0.03
1/4W	MFR025	6.3±0.5	2.3±0.3	29±2.0	0.55±0.03
1/2W	MFR050	9.0±0.5	3.2±0.5	26±2.0	0.65±0.03
1W	MFR100	11.5±1.0	4.5±0.5	35±2.0	0.78±0.03
2W	MFR200	15.5±1.0	5.0±0.5	32±2.0	0.78±0.03

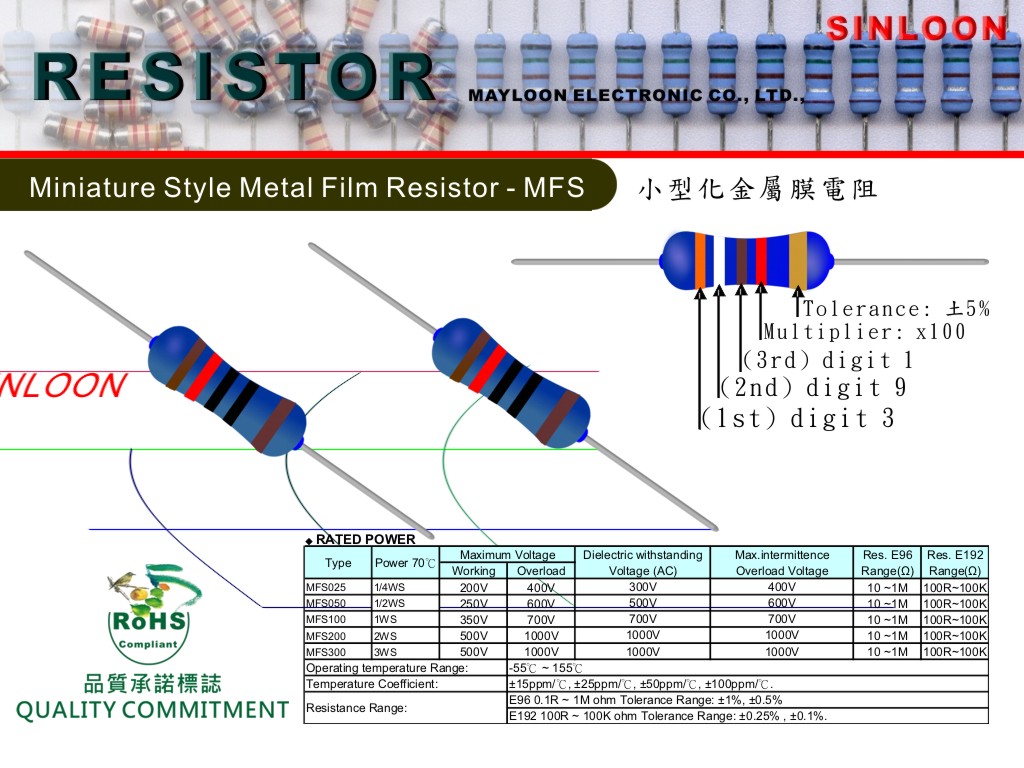

RATED POWER
Power 70℃	Type	Maximum Voltage		Dielectric withstanding		Max.intermittence	Res. E96	Res. E192
Power 70℃	Type	Working	Overload	Voltage (AC)		Overload Voltage	Range(Ω)	Range(Ω)
1/4WS	MFS025	200V	400V	300V		400V	10 ~1M	100R~100K
1/2WS	MFS050	250V	600V	500V		600V	10 ~1M	100R~100K
1WS	MFS100	350V	700V	700V		700V	10 ~1M	100R~100K
2WS	MFS200	500V	1000V	1000V		1000V	10 ~1M	100R~100K
3WS	MFS300	500V	1000V	1000V		1000V	10 ~1M	100R~100K
1/8W	MFR0125	200V	400V	300V		500V	0.1 ~1M	10R~100K
1/4W	MFR025	250V	500V	500V		600V
1/2W	MFR050	350V	700V	500V		700V
1W	MFR100	450V	1000V	1000V		1000V
2W	MFR200	500V	1000V	1000V		1000V
Operating temperature Range:			-55℃ ~ 155℃
Temperature Coefficient:			±15ppm/℃, ±25ppm/℃, ±50ppm/℃, ±100ppm/℃.
Resistance Range:			E96 0.1R ~ 1M ohm Tolerance Range: ±1%, ±0.5%
Resistance Range:			E192 100R ~ 100K ohm Tolerance Range: ±0.25% , ±0.1%.
