Metal Oxide Film Resistor

小型氧化膜電阻 -Miniature Style Resistor -TH - Resistor Series

Resistor 小型化金屬氧化膜電阻

INTRODUCTION
These Metal Oxide Resistors offer excellent performance in applications where stability and uniformity of
characteristics are desired. They provide lower cost alternatives to Carbon Composition Resistors and
General Purpose Metal Films. Metal Oxide also can replace many low power General Purpose Wire wound
applications, saving both money and time, with shorter delivery cycles.

DIMENSION (mm)							SINLOON®
Power:	STYLE	Dimension (mm)
Power:	STYLE	L	ΦD	H	Φd
1/2WS	MOS025	6.0±0.2	2.3±0.3	28±2	0.55±0.02
1WS	MOS100	9.5±0.5	3.2±0.5	26±2	0.65±0.03
2WS	MOS200	11.0±0.5	4.5±0.5	35±2	0.78±0.03
3WS	MOS300	15±0.5	5.0±0.5	32±2	0.78±0.03
5WS	MOS500	17±0.5	6.5±0.5	35±2	0.78±0.03
7WS	MOS700	24.5±1	8.5±0.5	35±2	0.78±0.03

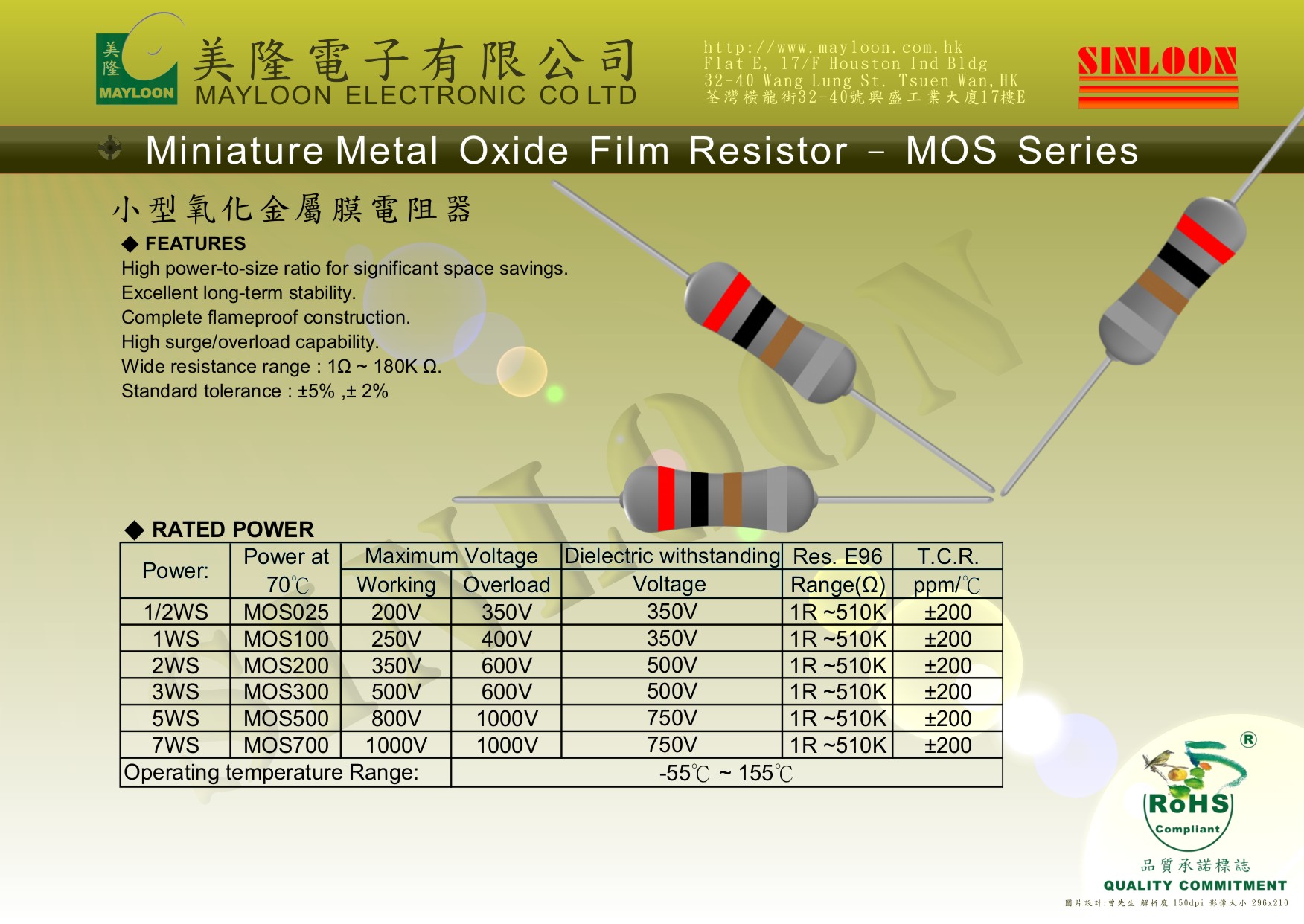

RATED POWER
Power:	Power at	Maximum Voltage		Dielectric withstanding		Res. E96	T.C.R.
Power:	70℃	Working	Overload	Voltage		Range(Ω)	ppm/℃
1/2WS	MOS025	200V	350V	350V		1R ~510K	±200
1WS	MOS100	250V	400V	350V		1R ~510K	±200
2WS	MOS200	350V	600V	500V		1R ~510K	±200
3WS	MOS300	500V	600V	500V		1R ~510K	±200
5WS	MOS500	800V	1000V	750V		1R ~510K	±200
7WS	MOS700	1000V	1000V	750V		1R ~510K	±200
Operating temperature Range:			-55℃ ~ 155℃
FEATURES
High power-to-size ratio for significant space savings.
Excellent long-term stability.
Complete flameproof construction.
High surge/overload capability.
Wide resistance range : 1Ω ~ 180K Ω.
Standard tolerance : ±5% ,± 2%
