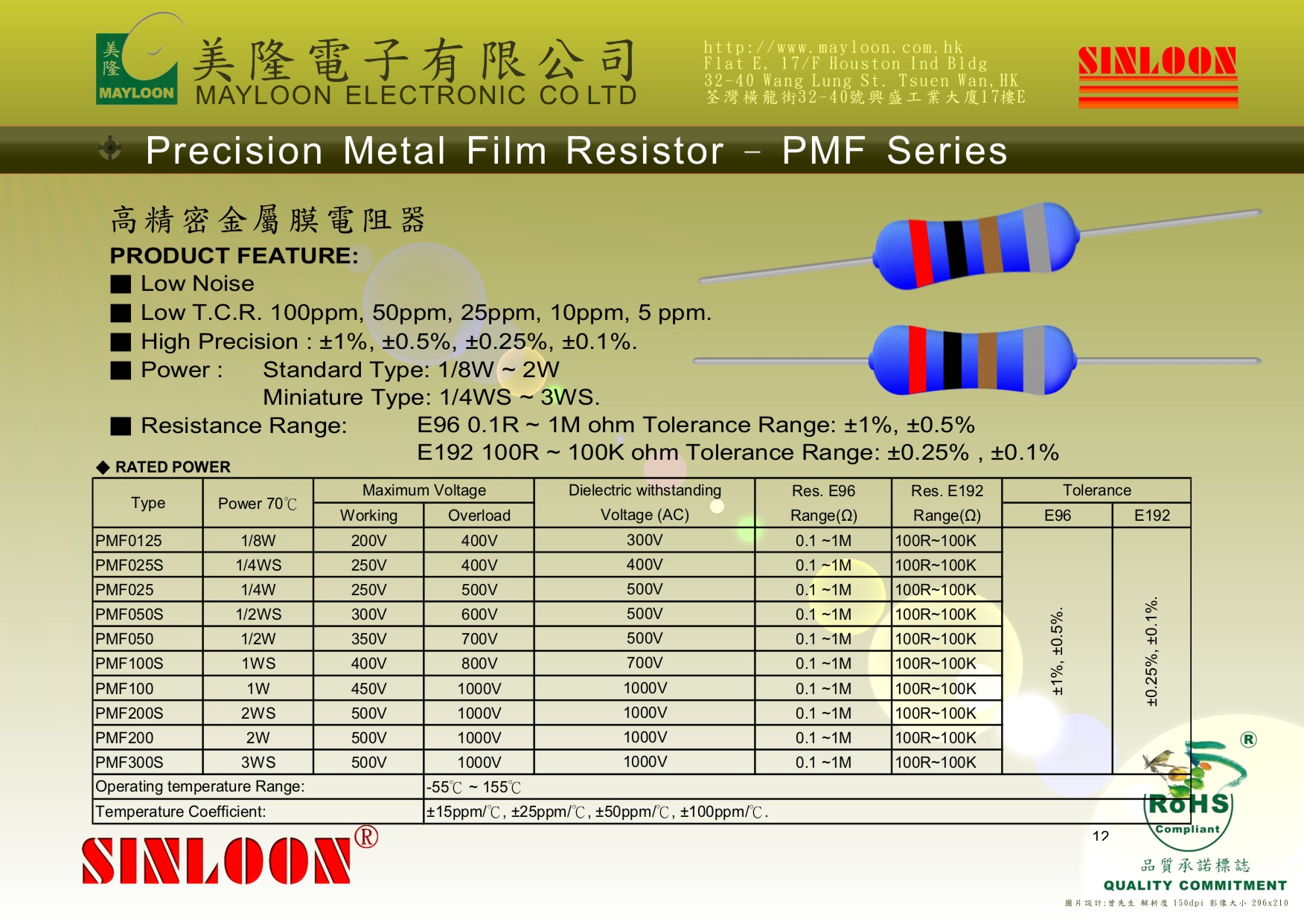

Resistor Precision Metal Film

Resistor 高精密金屬膜電阻

PRODUCT FEATURE:
Low Noise
Low T.C.R. 100ppm, 50ppm, 25ppm, 10ppm, 5 ppm.
High Precision : ±1%, ±0.5%, ±0.25%, ±0.1%.
Power :	Standard Type: 1/8W ~ 2W
	Miniature Type: 1/4WS ~ 3WS.
Resistance Range:		E96 0.1R ~ 1M ohm Tolerance Range: ±1%, ±0.5%
		E192 100R ~ 100K ohm Tolerance Range: ±0.25% , ±0.1%.

DIMENSION (mm)						SINLOON®
Power:	STYLE	Dimension (mm)
Power:	STYLE	L	D	H	d
1/8W	PMF0125	3.3±0.4	1.8±0.3	29±2.0	0.45±0.03
1/4WS	PMF025S	3.3±0.4	1.8±0.3	29±2.0	0.45±0.03
1/4W	PMF025	6.3±0.5	2.3±0.3	29±2.0	0.55±0.03
1/2WS	PMF050S	6.3±0.5	2.3±0.3	29±2.0	0.55±0.03
1/2W	PMF050	9.0±0.5	3.2±0.5	26±2.0	0.65±0.03
1WS	PMF100S	9.0±0.5	3.2±0.5	26±2.0	0.65±0.03
1W	PMF100	11.5±1.0	4.5±0.5	35±2.0	0.78±0.03
2WS	PMF200S	11.5±1.0	4.5±0.5	35±2.0	0.78±0.03
2W	PMF200	15.5±1.0	5.0±0.5	32±2.0	0.78±0.03
3WS	PMF300S	15.5±1.0	5.0±0.5	32±2.0	0.78±0.03

RATED POWER
Type	Power 70℃	Maximum Voltage		Dielectric withstanding		Res. E96	Res. E192
Type	Power 70℃	Working	Overload	Voltage (AC)		Range(Ω)	Range(Ω)
PMF0125	1/8W	200V	400V	300V		0.1 ~1M	100R~100K
PMF025S	1/4WS	250V	400V	400V		0.1 ~1M	100R~100K
PMF025	1/4W	250V	500V	500V		0.1 ~1M	100R~100K
PMF050S	1/2WS	300V	600V	500V		0.1 ~1M	100R~100K
PMF050	1/2W	350V	700V	500V		0.1 ~1M	100R~100K
PMF100S	1WS	400V	800V	700V		0.1 ~1M	100R~100K
PMF100	1W	450V	1000V	1000V		0.1 ~1M	100R~100K
PMF200S	2WS	500V	1000V	1000V		0.1 ~1M	100R~100K
PMF200	2W	500V	1000V	1000V		0.1 ~1M	100R~100K
PMF300S	3WS	500V	1000V	1000V		0.1 ~1M	100R~100K
Operating temperature Range:			-55℃ ~ 155℃
Temperature Coefficient:			±15ppm/℃, ±25ppm/℃, ±50ppm/℃, ±100ppm/℃.
Tolerance		E96	±1%, ±0.5%.
Tolerance		E192	±0.25%, ±0.1%.
