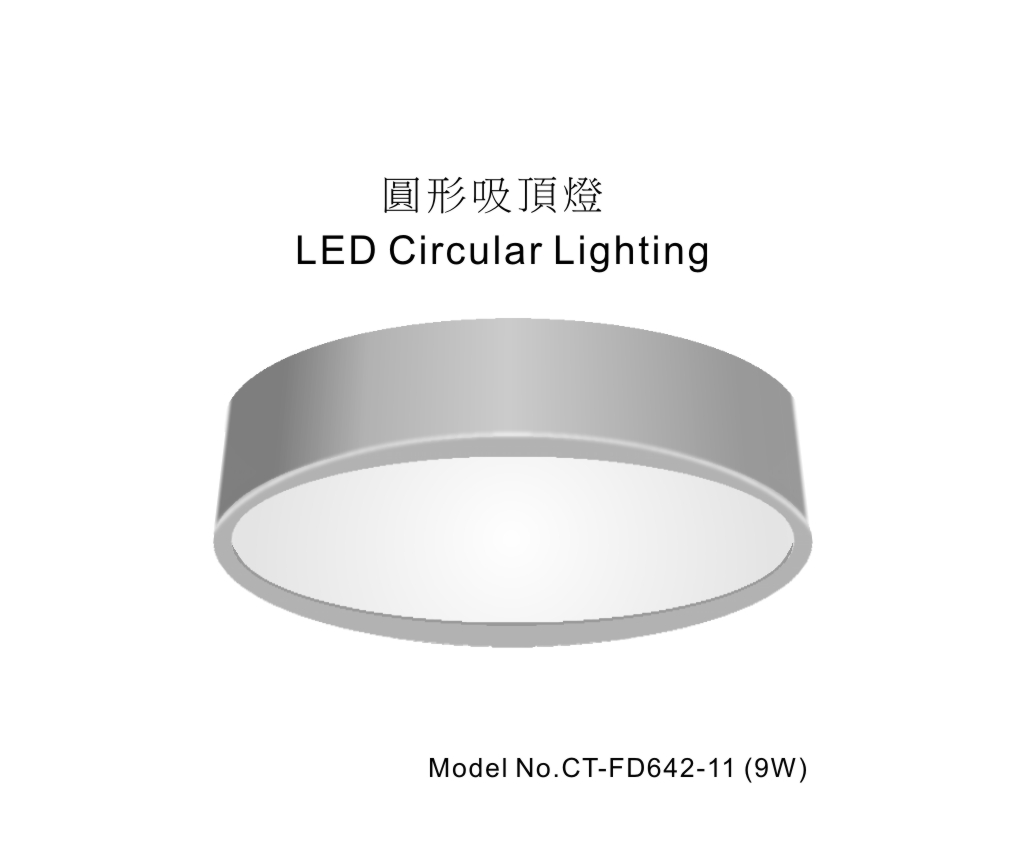

| 圓型明裝筒燈導光照明系列 | SINLOON® | ||||||||
| LED Circular Lighting | 超薄節能導光燈 | ||||||||
| Ultra-thin energy saving guide light | |||||||||
| Data Specification : |  |
 |
|||||||
 |
 |
CT-FD642-11 | |||||||
| Characteristic Parameters: | |||||||||
| 型號 Model: | CT-FD642-11 | ||||||||
| 尺寸 Dimension : | Φ180*40mm | ||||||||
| 發光尺寸 The Emitting Size: | Φ75mm | ||||||||
| 輸入電壓 Input Voltage (High efficiency): | AC110V~240V 50/60Hz | ||||||||
| 輪出電壓 Output Voltage: | 24V | ||||||||
| 電流 Current: | 0.3A | ||||||||
| 類型 LED Type: | SMD-3014 | ||||||||
| 數量 LED Quantity: | 80pcs/ | ||||||||
| 功率 System Power (W): | 9W ±5% (60lm/W) | ||||||||
| 光通亮 LED Flux (lm): | 560lm ±5% | ||||||||
| 燈具效率 Lighting Factor: | 55% | ||||||||
| 色溫 Color Temperature (K) | 3800K ±7%; 6000K ±8% | ||||||||
| 顯色指數 Color Rendering Index: | >75 | ||||||||
| 發光角度 Illumination Angle: | 120o | ||||||||
| 壽命 Lifespan: | 50000hrs | ||||||||
| 環境溫度 Ambient Temperature (℃): | -20℃ ~ 50℃ | ||||||||
| 重量 Weight (Kg): | <0.5/kg | ||||||||
| 認證 Certificate: | CCC, UL, CE, GC, RoHS, FCC, | ||||||||
| 開孔尺寸Dimension: |
|
||||||||
| * If you have any question which is not in this specification, please contact us. |  |
||||||||
