| SINLOON® | LED薄型平面告廣燈箱(單/雙面板)系列 | 明亮奪目塑造獨特風格 | |||||||
| Message Sign (Single/Double Panel) - Series | Model No. | A3012 (40W) | |||||||
| ' | ' | ' |  |
||||||

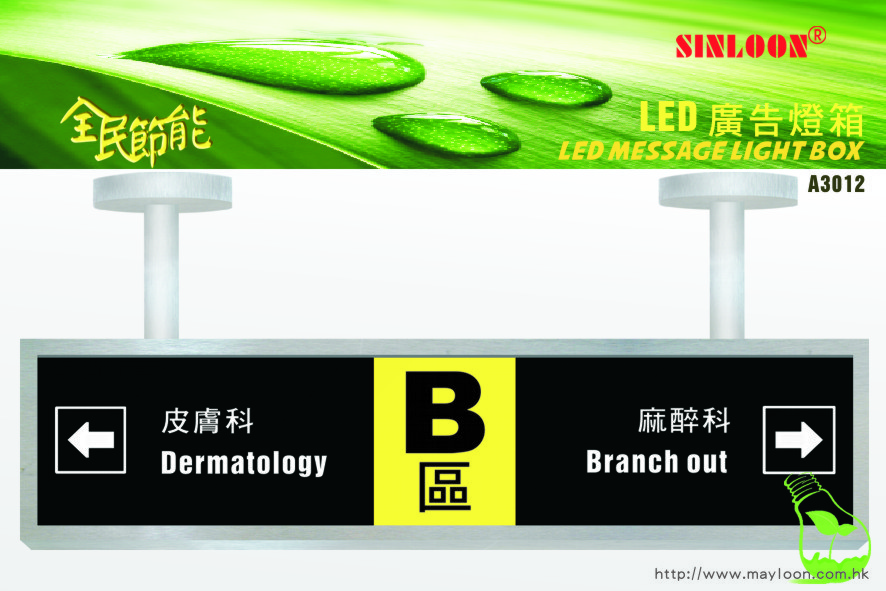

  LED Message Light Box A3012 (40W) |
|||||||||
| □ Feature: | |||||||||
| Frame measurement: | Standard size. | ' | ' | ||||||
| Frame material: | Aluminum metal | ||||||||
| Voltage Type: | Constant current (External adaptor) | ||||||||
| Temperature Color: | White | ' | ' | ||||||
| Input voltage: | AC110~240V 50/60Hz | ||||||||
| Light source: | LED SMD5630 type | ||||||||
| Shine: | To product light not flashing | ' | ' | ||||||
| Framework: | Arc angle shaped | ||||||||
| Panel: | Ultra-thin guiding light, Energy conservation | ||||||||
| □ Characteristic Parameters: | ' | ||||||||
| 型號 Model No.: | MLL-A3012D (Double Panel) | MLL-A3012S (Single Panel) | |||||||
| 尺寸 Dimension (L*W*T): | 312*1212*16.5mm | 312*1212*11.2mm | |||||||
| 發光尺寸 The Emitting Size: | 252*1152mm | 252*1152mm | |||||||
| 輸入電壓(外置電源) Input Voltage | AC110V~240V 50/60Hz | AC110V~240V 50/60Hz | |||||||
| 輪出電壓 Output Voltage: (AC/DC Adaptor) | 28.8V DC | 28.8V DC | |||||||
| 電流 Current: | 1.2A | 1.2A | |||||||
| 類型 LED Type: | SAMSUNG LED - SMD5630 | SAMSUNG LED - SMD5630 | |||||||
| 數量 LED Quantity: | 90pcs | 90pcs | |||||||
| 功率 System Power (W) | 40W ±5% | 40W ±5% | |||||||
| 亮度 Brightness (on the surface panel) | 6000 Lux | 12000 Lux | |||||||
| 色溫 Color Temperature (K) | Color: White 6000K ±8% | Color: White 6000K ±8% | |||||||
| 顯色指數 Color Rendering Index: | 80±2 | 80±2 | |||||||
| 發光角度 Illumination Angle: | 120o | 120o | |||||||
| 壽命 Lifespan: | 40000hrs (25℃) | 40000hrs (25℃) | |||||||
| 環境溫度 Ambient Temperature (℃): | -20℃ ~ 50℃ | -20℃ ~ 50℃ | |||||||
| 重量 Weight (Kg): | <5.5.0/kg | <4.5.0/kg | |||||||
| 認證 Certificate: | BSMI/CE/RoHS/FCC | BSMI/CE/RoHS/FCC | |||||||
| * If you have any question which is not is in the specification, please contact us. | |||||||||
| *在本規格書裡如果您未能找到或參數指標未能達到你的應用要求即未在本規格書裡表現出來請與我們聯絡. | |||||||||
 |
|||||||||
