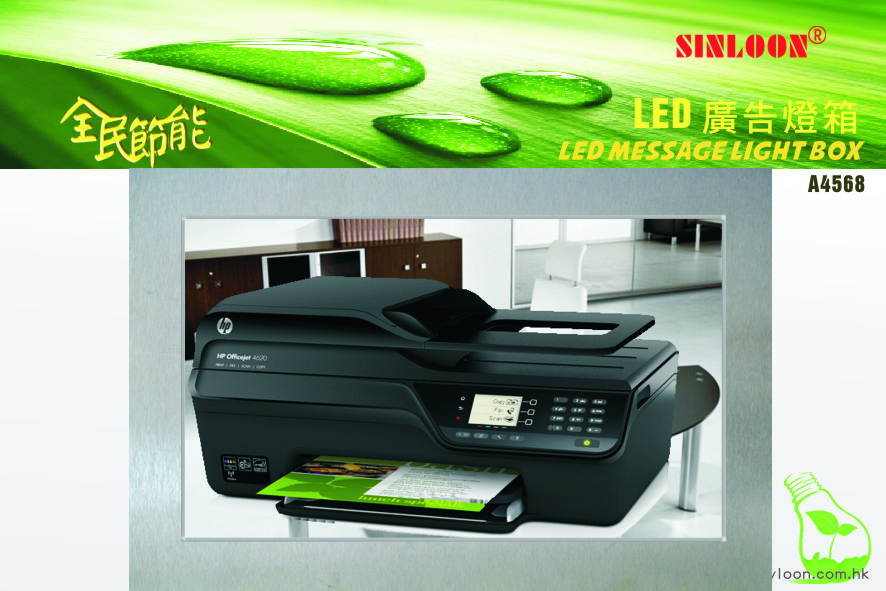

LED 廣告燈箱 54W

LED Message Box

SINLOON® LED薄型平面告廣燈箱(/雙面板)系列 明亮奪目塑造獨特風格
Message Sign (Single/Double Panel) - Series Model No. A4568 (54W)
' ' ' '
PDF File LED Message Light Box A4568 (54W)
Feature:
Frame measurement: Standard size. ' '
Frame material: Aluminum metal
Voltage Type: Constant current (External adaptor)
Temperature Color: White ' '
Input voltage: AC110~240V  50/60Hz
Light source: LED SMD5630 type
Shine: To product light not flashing ' '
Framework: Arc angle shaped
Panel: Ultra-thin guiding light, Energy conservation
Characteristic Parameters: '
型號 Model No.: MLL-A4568S (Single Panel)
尺寸 Dimension (L*W*T): 455*685*11.2mm
發光尺寸 The Emitting Size: 405*635mm
輸入電壓(外置電源) Input Voltage AC110V~240V  50/60Hz
輪出電壓 Output Voltage: (AC/DC Adaptor) 32V DC
電流 Current: 1.5A
類型 LED Type: SAMSUNG LED - SMD5630
數量 LED Quantity: 120pcs
功率 System Power (W) 54W  ±5%
亮度 Brightness (on the surface panel) 15000 Lux
色溫 Color Temperature (K) Color: White   6000K ±8%
顯色指數 Color Rendering Index: 80±2
發光角度 Illumination Angle: 120o
壽命 Lifespan: 40000hrs (25)
環境溫度 Ambient Temperature (): -20 ~ 50
重量 Weight (Kg): <6.5/kg
認證 Certificate: BSMI/CE/RoHS/FCC
* If you have any question which is not is in the specification, please contact us.
*在本規格書裡如果您未能找到或參數指標未能達到你的應用要求即未在本規格書裡表現出來請與我們聯絡.
