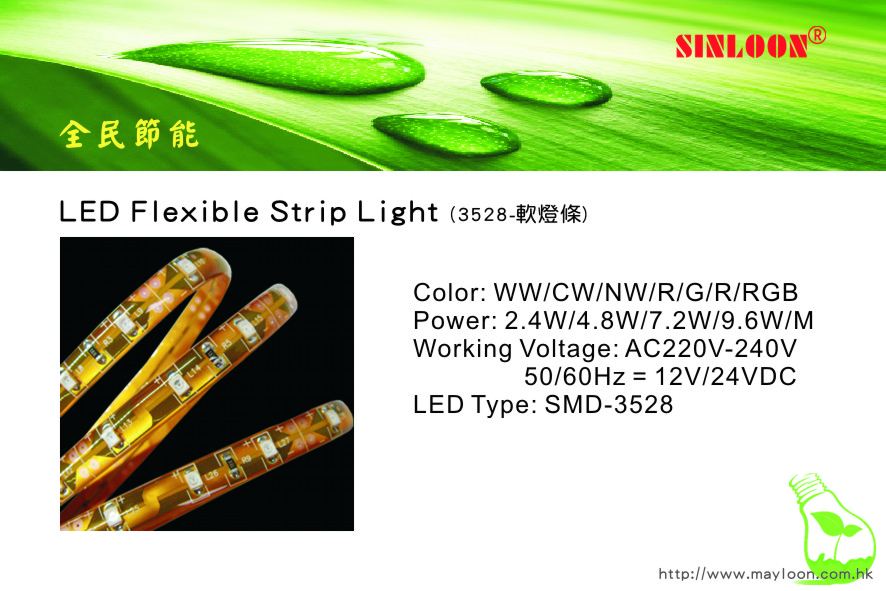

LED Flexible Strip Light

SINLOON^®	LED 貼片軟燈帶					Chip Type: 3528
	LED Flexible Strip Light					Power: 2.4W - 9.6W/M
LED Flexible Strip Light - 3528					-
Feature:
LED SMD-3528 Type			LED 軟燈條優點:					-
Banding angle 120^o			適用於潮濕的地方,小功率,低熱量.
Life span 50,000hrs			比傳統的照明壽命長達8倍耐用環保.
Waterproof IP20/IP65/IP66/IP68			有不同的發光色彩可供選擇,點綴節日氣氛.				-	-
LED any color for choice			兼容不同交流電源,低壓直流安全可靠.
Flexible SMD LED strip with FPT			防水級別可達 IP68
Low voltage DC12/24V safe and reliable			室內及戶外使用.
Suitable for indoor and outdoor applications.			每米長度功率由 2.4W-9.6W.

Characteristics:
Model No.	LED Q'TY.	Power/M	PCB (L*W)	Voltage	Lumen/ea	Angle	Color
FSL-3528Q30	30 pcs	2.4W	1000*8mm	DC12/24V	4-5lm	120^o	WW/CW/NW/R/G/B
FSL-3528Q60	60 pcs	4.8W	1000*8mm	DC12/24V	4-5lm	120^o	WW/CW/NW/R/G/B/RGB
FSL-3528Q90	90 pcs	7.2W	1000*8mm	DC12/24V	4-5lm	120^o	WW/CW/NW/R/G/B
FSL-3528Q120	120 pcs	9.6W	1000*8mm	DC12/24V	4-5lm	120^o	WW/CW/NW/R/G/B
FSL-3528Q240	240 pcs	9.6W	1000*15mm	DC12/24V	4-5lm	120^o	WW/CW/NW/R/G/B
Water Proof:	Case pipe filling glue.			Package:	5M / Reel
* If you have any question which is not is in the specification, please contact us.							-	-
*在本規格書裡如果您未能找或參數指標未能達到你的應用要求即未在本規格書裡表現出來請與我們聯絡.
