金屬膜晶圓電阻
MELF Metal Film Resistor - MMF Series
 FEATURES |
APPLICATIONS |
|||||||||
| SMD enabled structure | MMF Resistor are widely applied in high fidelity stereo | |||||||||
| Excellent Solder ability Termination | Electronic calculators, Computers, Testing instruments, | |||||||||
| Tolerance precision: ±1%. ±5%. | Meters, Auto controlled equipment, Military devices and | |||||||||
| Advanced Metal Film technology. | Aerospace equipment. | |||||||||
| Lead (Pb)-free and RoHS compliant . | (MMF金屬膜晶圓電阻器採用陶瓷棒經過特殊處理的金屬膜塗層, | |||||||||
| Pure Sn termination on Ni barrier layer. | 其瓷棒的兩端鍍有貴重金屬，以確保低噪音，低溫差。) | |||||||||
| Conformal Multi-layer Coating Humidity | ||||||||||
| Force fitted steel caps, tin plated on nickel barrier. | ||||||||||
| Tolerance ±5% is 3-band coded, ±1% and under is 4-band codes | ||||||||||
| Compatible with lead (Pb)-free and lead containing soldering processes. | ||||||||||

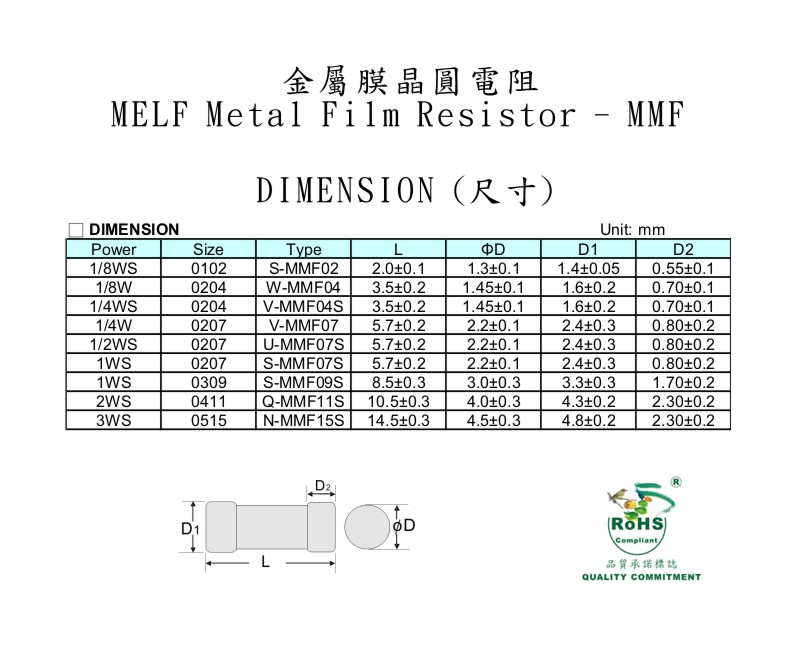

| DIMENSION | Unit: | mm | SINLOON® | |||||||
| Power | Size | Type | L | ΦD | D1 | D2 |  |
|||
| 1/8WS | 0102 | S-MMF02 | 2.0±0.1 | 1.3±0.1 | 1.4±0.05 | 0.55±0.1 | ||||
| 1/8W | 0204 | W-MMF04 | 3.5±0.2 | 1.45±0.1 | 1.6±0.2 | 0.70±0.1 | ||||
| 1/4WS | 0204 | V-MMF04S | 3.5±0.2 | 1.45±0.1 | 1.6±0.2 | 0.70±0.1 | ||||
| 1/4W | 0207 | V-MMF07 | 5.7±0.2 | 2.2±0.1 | 2.4±0.3 | 0.80±0.2 | ||||
| 1/2WS | 0207 | U-MMF07S | 5.7±0.2 | 2.2±0.1 | 2.4±0.3 | 0.80±0.2 | ||||
| 1WS | 0207 | S-MMF07S | 5.7±0.2 | 2.2±0.1 | 2.4±0.3 | 0.80±0.2 | ||||
| 1WS | 0309 | S-MMF09S | 8.5±0.3 | 3.0±0.3 | 3.3±0.3 | 1.70±0.2 | ||||
| 2WS | 0411 | Q-MMF11S | 10.5±0.3 | 4.0±0.3 | 4.3±0.2 | 2.30±0.2 | ||||
| 3WS | 0515 | N-MMF15S | 14.5±0.3 | 4.5±0.3 | 4.8±0.2 | 2.30±0.2 | ||||
| RATED SPECIFICATION | ||||||||||
| Type | Size | Rating | Maxinmun Voltage | Resistance Range (Ω) | T.C.R. | |||||
| Power | Working | Overload | ±1% | ±5% | (℃) | |||||
| S-MMF02 | 0102 | 1/8WS | 150V | 300V | 1R ~ 1M | 0.22R~2M | ±15ppm | |||
| W-MMF04 | 0204 | 1/8W | 150V | 300V | 1R ~ 1M | 0.22R~2M | ±25ppm | |||
| V-MMF04S | 0204 | 1/4WS | 200V | 400V | 1R ~ 1M | 0.5R~2M | ±50ppm | |||
| V-MMF07 | 0207 | 1/4W | 200V | 400V | 1R ~ 5M | 0.22R~5M | ±100ppm |  |
||
| U-MMF07S | 0207 | 1/2WS | 300V | 600V | 1R ~ 5M | 0.22R~5M | ||||
| S-MMF07S | 0207 | 1WS | 400V | 600V | 1R ~ 5M | 0.5R~2M | ||||
| S-MMF09S | 0309 | 1WS | 500V | 1KV | 1R ~ 1M | 0.1R~1M | ±50ppm | |||
| Q-MMF11S | 0411 | 2WS | 500V | 1KV | 1R ~ 1M | 0.1R~1M | ±100ppm | |||
| N-MMF15S | 0515 | 3WS | 500V | 1KV | 1R ~ 1M | 0.1R~1M | ||||
