瞬態電壓抑制二極體 (TVS)
5000W Surface Mount Transient Voltage Suppressor
TVS 5.0SMCJ Series Voltage Range: 11V ~ 190V
TVS 5.0SMCJ - Series (5KW 11V-190V SMC/DO-214AB)
| SINLOON® | TVS 瞬態電壓抑制二極管 | 5.0SMCJ Series | ||||||
| Voltage : 11V - 190V | 5000W Surface Mount Transient Voltage Suppressor | |||||||
| Maximum Ratings and Electrical Characteristics @TA=25℃ unless otherwise specified | ||||||||
| CHARACTERISTIC | Symbol | Value | Unit | |||||
| Peak Pulse Power Dissipation at TA = 25℃ (Note 1,2,5) Fig.3 | PPPM | 5000 Min. | W | |||||
| Peak Forward Surge Current (Note 3) | IFSM | 300 | A | |||||
| Power Dissipation on Infinite Heat sink qt TL = 75 (Note 4) Fig. 5 | PM(AV) | 6.5 | W | |||||
| Maximum Instantaneous Forward Voltage at 100A (Note 6) | VF | 3.5/5.0 | V | |||||
| Typical Thermal Resistance | RθJL | 15 | ℃/W | |||||
| RθJA | 75 | |||||||
| Operating and Storage Temperature Range | Tj, TSTG. | -65~+150 | ℃ | |||||
| Note: | 1. Non-repetitive current pulse per Figure 1 and derated above TA=25℃ per Figure 4. | |||||||
| 2. Mounted on 8.0mm2 (0.013mm thick) copper pad to each terminal. | ||||||||
| 3. 8.3ms single half sine-wave duty cycle = 4 pulses per minutes maximum. | ||||||||
| 4. Lead temperature at 75℃ | ||||||||
| 5. Peak pulse power waveform is 10/1000μS. | ||||||||
| 6. For unidirectional only. VF<3.5V for devices of VBR<200V and VF<5.0V for devices of VBR.201V | ||||||||
| TVS 瞬態電壓抑制器 特性: | ||||||||
| 1. 高效能保護器件 2. 吸收反向瞬態脈衝 3. 瞬態功率大 4. 漏電流低,轚穿電壓徧差小 5. 電路異常下反應快 | ||||||||

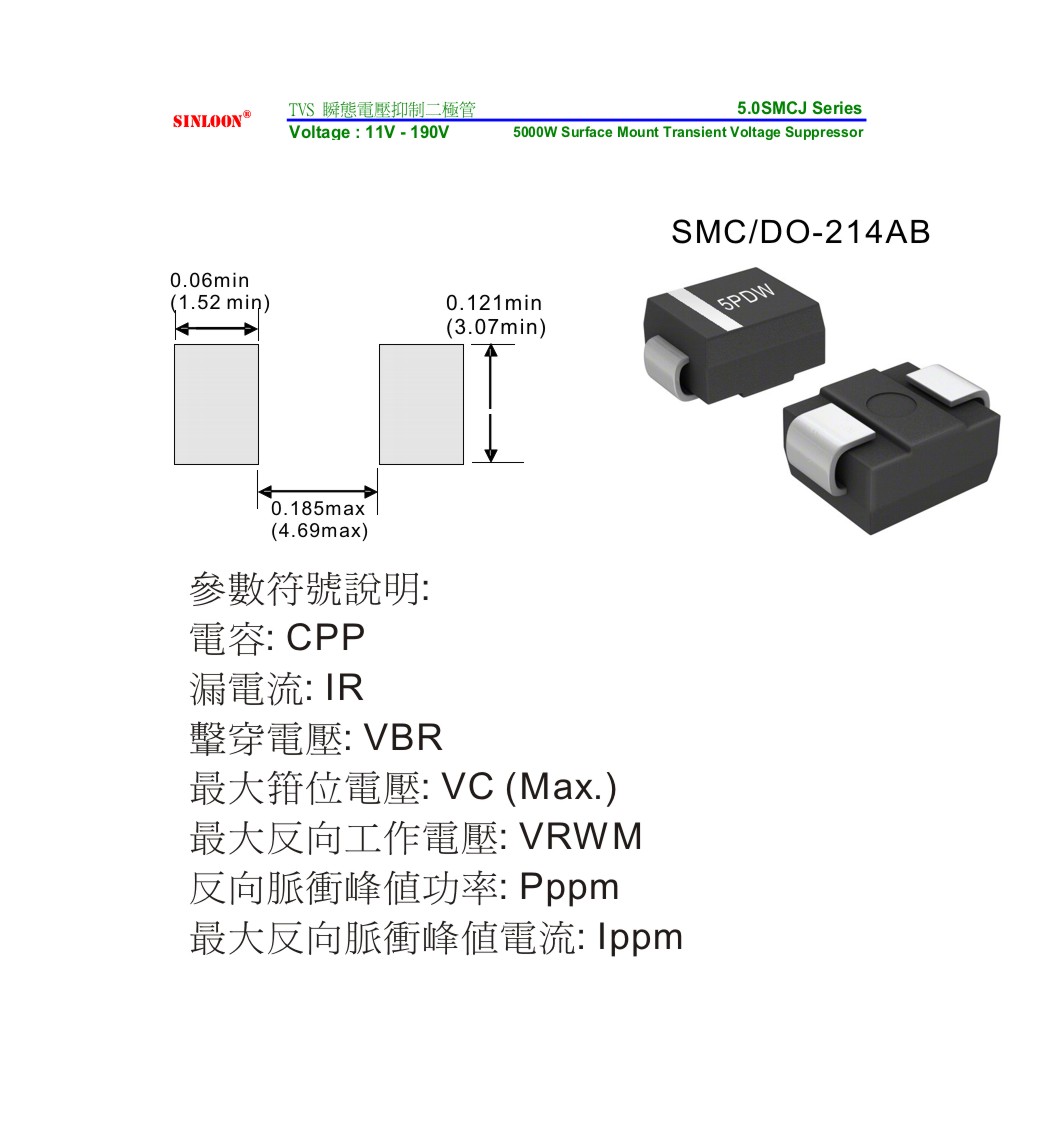

| 參數符號說明: | 最大反向工作電壓: VRWM |
|
||||||
| 電容: CPP | 轚穿電壓: VBR | 反向脈衝峰值功率: Pppm | ||||||
| 漏電流: IR | 最大箝位電壓: VC (Max.) | 最大反向脈衝峰值電流: Ippm | ||||||
