貼片開關二極管 CDBAV21W
CDBAV21W (1206 200V 0.2A)

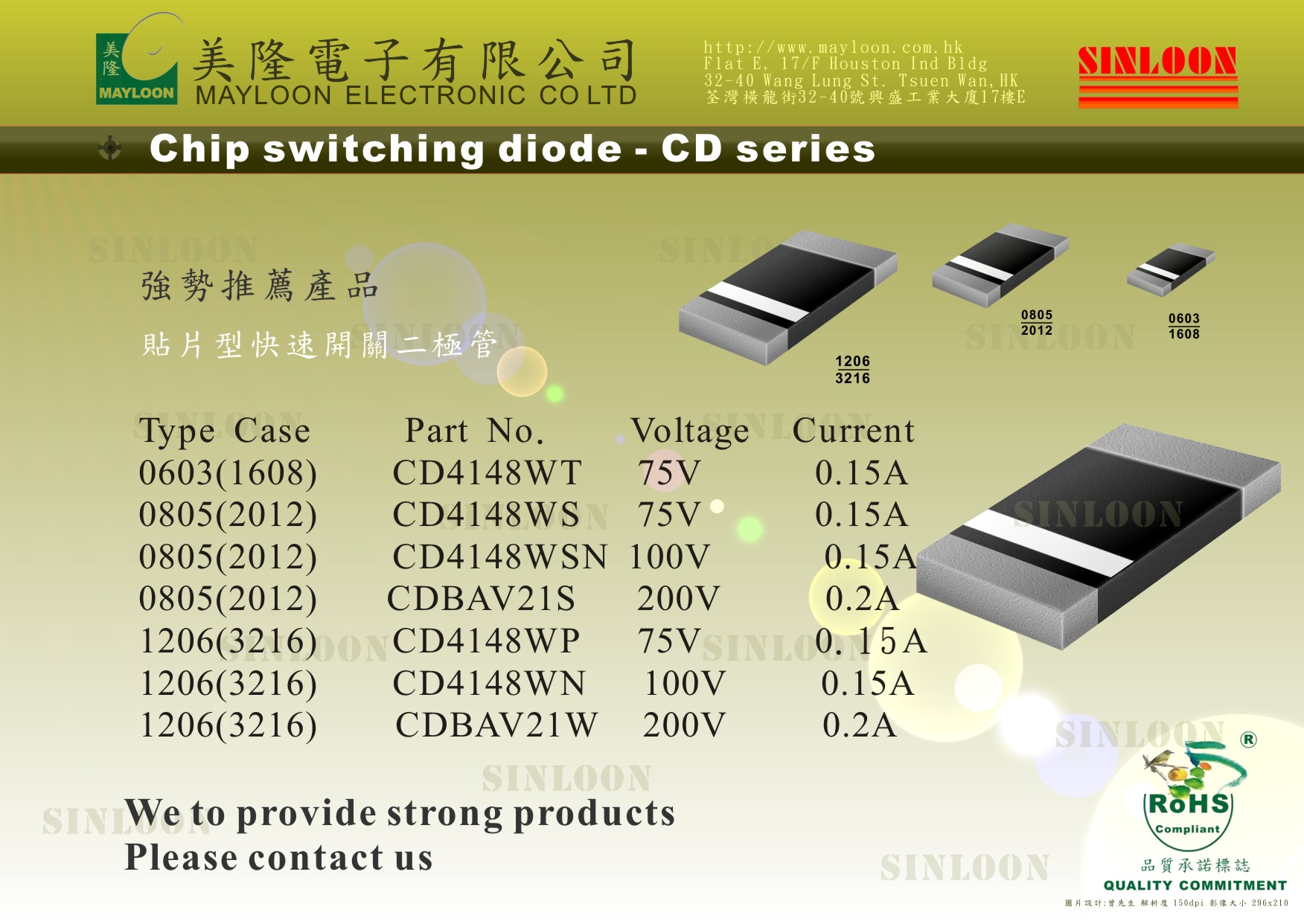

FEATURE
- Silicon epitaxial planer diode.
- SMD chip pattern, available in various dimension included 1206 & 0603.
- Lead free and RoHS compliance components.
- Size : 1206
- Weight: Approx 10mg
- Marking: 21 as VRRM 250V high voltage switching diode
| Parameter at Tamb = 25℃ | (貼片二極管特性參數) | SINLOON® | ||||||||
| 型號 | 類型 | VRRM | IFSM | IF(AV) | 型號 | 類型 | VRRM | IFSM | IF(AV) | |
| Part No. | Type | (V) | (mA) | (mA) | Part No. | Type | (V) | (mA) | (mA) | |
| BAV19WS | SOD-323 | 100V | 250 | 400 | CD4148WSN | 0805 | 100 | 500 | 150 | |
| BAV20WS | SOD-323 | 150V | 250 | 400 | CD4148WSP | 0805 | 75 | 500 | 150 | |
| BAV21WS | SOD-323 | 200V | 250 | 400 | CD4148WTN | 0603 | 90V | 500 | 150 | |
| BAV56 | SOT-23 | 75 | 200 | 300 | CD4148WTP | 0603 | 75 | 500 | 150 | |
| BAV56W | SOT-323 | 75 | 200 | 300 | CDBAV21W | 1206 | 200 | 500 | 200 | |
| BAV70 | SOT-23 | 75 | 200 | 300 | CDBAV21WS | 0805 | 200 | 500 | 200 | |
| BAV70W | SOT-323 | 75 | 200 | 300 | CDBAW56 | SOT-23 | 70 | 200 | 200 | |
| BAV99 | SOT-23 | 75 | 200 | 300 | CDBAV70 | SOT-23 | 70 | 200 | 200 | |
| BAV99W | SOT-323 | 75 | 200 | 300 | CDBAV99 | SOT-23 | 70 | 200 | 200 | |
| CD4148WN | 1206 | 100 | 500 | 150 | IN4148W | SOD-123 | 75 | 200 | 150 | |
| CD4148WP | 1206 | 75 | 500 | 150 | MMBD4148 | SOT-23 | 75 | 200 | 300 | |
 |
||||||||||
