微波自動感應照明燈管

微波感應

SINLOON^®	微波雷達感應LED燈管系列				型號/Type:	MLL-MT Series
	Microwave radar sensing LED Tube				Plastic Tube
Microwave Radar Sensor - LED Tube
□ Feature (特性)					□ Figure (外型)
○ Microwave body sensors.			微波雷達感應.		-
○ Non switch touching.			無開關接觸點.
○ Sensor distance			感測距離遠.
○ Intelligent control.			智能控制.		-
○ Strong anti-jamming capability.			抗干擾能力強.

□ Application (應用)					-
Lobbies (大堂), Stairs(樓梯), Hallways (走道), Corridors(走廊),
Balcony (陽台), Kitchen (廚房), Bathroom (洗手間),
House door(屋外門口), Night lamp (夜燈),Etc…(等等...)					-	-	-

□ Specification:
型號	功率	尺寸	電壓	顯色指數	色溫	光通量	安裝高度
Model No.	Power	Size (Φ*H)	Voltage	CRI	Color Temp.	Luminous	Installation
MT0610	10W	600*Φ26mm	85V~265V	>80Ra	3000K/6000K	930lm	3-10M
MT0915	15W	900*Φ26mm	85V~265V	>80Ra	3000K/6000K	1400lm	3-10M
MT1218	18W	1200*Φ26mm	85V~265V	>80Ra	3000K/6000K	1700lm	3-10M
MT1220	20W	1200*Φ26mm	85V~265V	>80Ra	3000K/6000K	1900lm	3-10M
Luminous tolerance:		±5%
Voltage Frequency:		50/60Hz

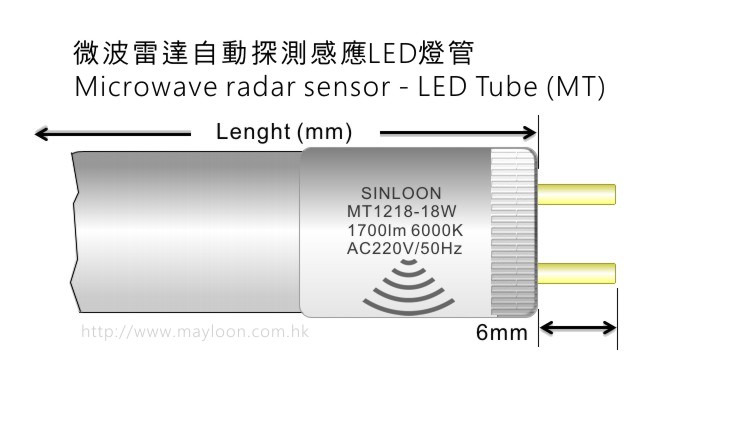

□ General Specification:					□ Dimension: (mm)

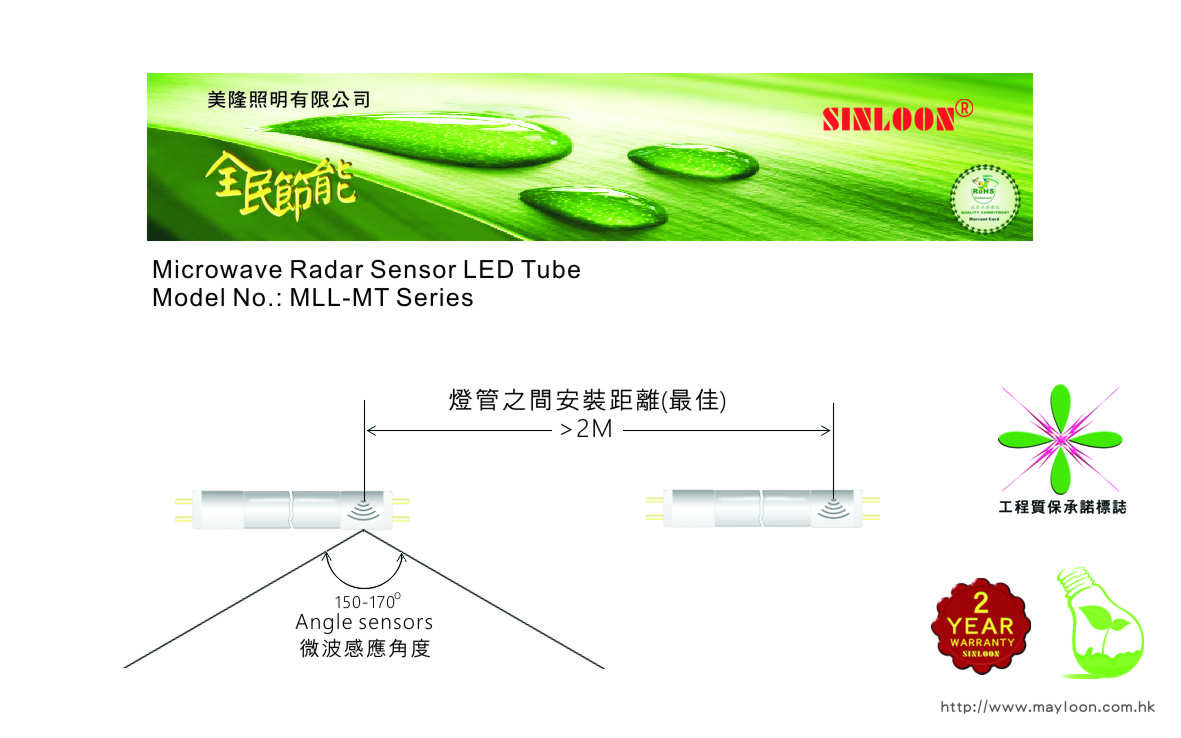

感應角度	Angle sensors:		150^。 ~170^。		Model No.	Length	Dim. (Φ)
感應距離	Sensor distance:		3 ~ 10M
延時時間	Extension time:		<2-200s To choose
工作溫度	Temperature:		<20℃~+60℃
波段頻率	Band frequency:		5.8GHz		MT0610	588mm	26mm
燈頭類別	Lamp holder type:		G13		MT0915	894mm	26mm
功率因數	Power Factor:		>85		MT1218	1198mm	26mm
輸入電壓	Wide range mains voltage:		AC85V ~ 265V 50/60Hz		MT1220	1198mm	26mm

□ Application Features:						-	-

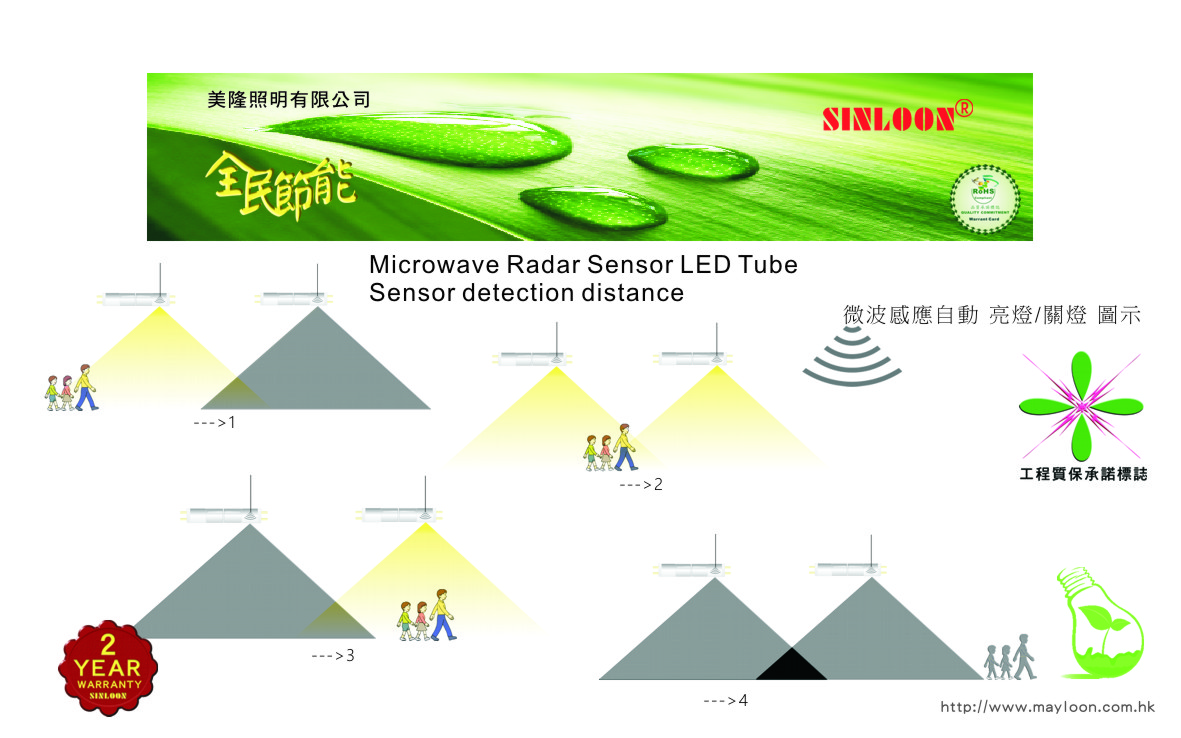

○ People entering the sensitive area of LED lights,
○ Lights automatically turn on, leave LED lights sensing area,
○ The first darken after a certain time, and then automatically turn off the lights.						-
○ High light efficiency> 92LM / W, No spot, Have CE certification.
□ 特點:
當有人進入感應區域範圍時,自動啓動亮燈功能,當人離開感應區域範圍後燈自動延時漸暗至熄滅止。
