Sensor Light LED Down 18W

E-mail 列印

微波感應

SINLOON® 微波感應LED嵌燈 MLL-MD190-15W

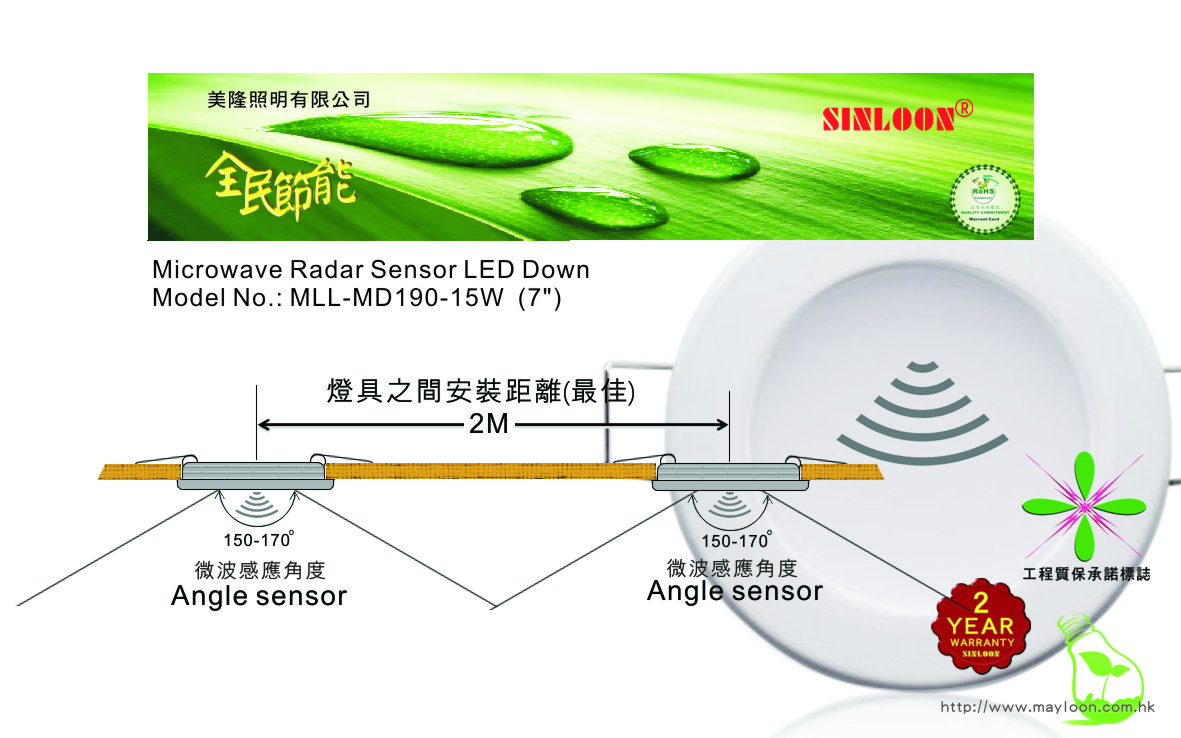

Microwave Sensor LED Downlight MLL-MD225-18W
Microwave Sensor LED Down light 4W/6W
eature: igure:
Frame measurement: Standard size. (標準尺寸) - 微波感應15W
微波感應18W
Frame material: Metal material (金屬外殼)
Voltage Type: External driver (外置電源)
Ambient Light: Instant start (片刻啓動) - LED Down Light - Install 微波感測距離
Input voltage: AC85~265V  50/60Hz (市電電壓)
LED Light source: LED SMD2835 chip diode (2835燈源)
Shine: To product light not flashing (無頻閃) - 微波感應開關 二次節能
Fixing Way: Downlight (嵌入式)
Characteristic Parameters:
型號 Model No.: MLL-MD190-15W MLL-MD225-18W
尺寸 Dimension (ΦDxT): Φ190*12mm Φ225*12mm
發光尺寸 The Emitting Size (Φd): Φ170mm  (7") Φ202mm (8")
輸入電壓 Wide range mains voltage:: AC85-265V AC85-265V
輪出電壓 Output Voltage: 40V-66V 40V-66V
電流 Current: 300mA 300mA
類型 LED Type: SMD2835 SMD2835
數量 LED Quantity: 75pcs 90pcs
功率/亮度 System Power (W) 15W ±5% 18W ±5%
光通亮 LED Flux (lm): 1025lm ±5% 1250lm ±5%
燈具效率 Lighting Factor: 65% 65%
功率系數 Power Factor: >0.9 >0.9
色溫 Color Temperature (K): 2800K(Warm White) - 6000K (Cool White)*1
顯色指數 Color Rendering Index: >80Ra >80Ra
發光角度 Illumination Angle: 120o 120o
壽命 Lifespan: 50000hrs 50000hrs
環境溫度 Ambient Temperature (): -20 ~ 55 -20 ~ 55
開孔尺寸 Hole Size: Φ175mm Φ210mm
重量 Weight (Kg): <0.5/kg <0.55/kg
感應角度 Angle sensors: 105~170o 105~170o

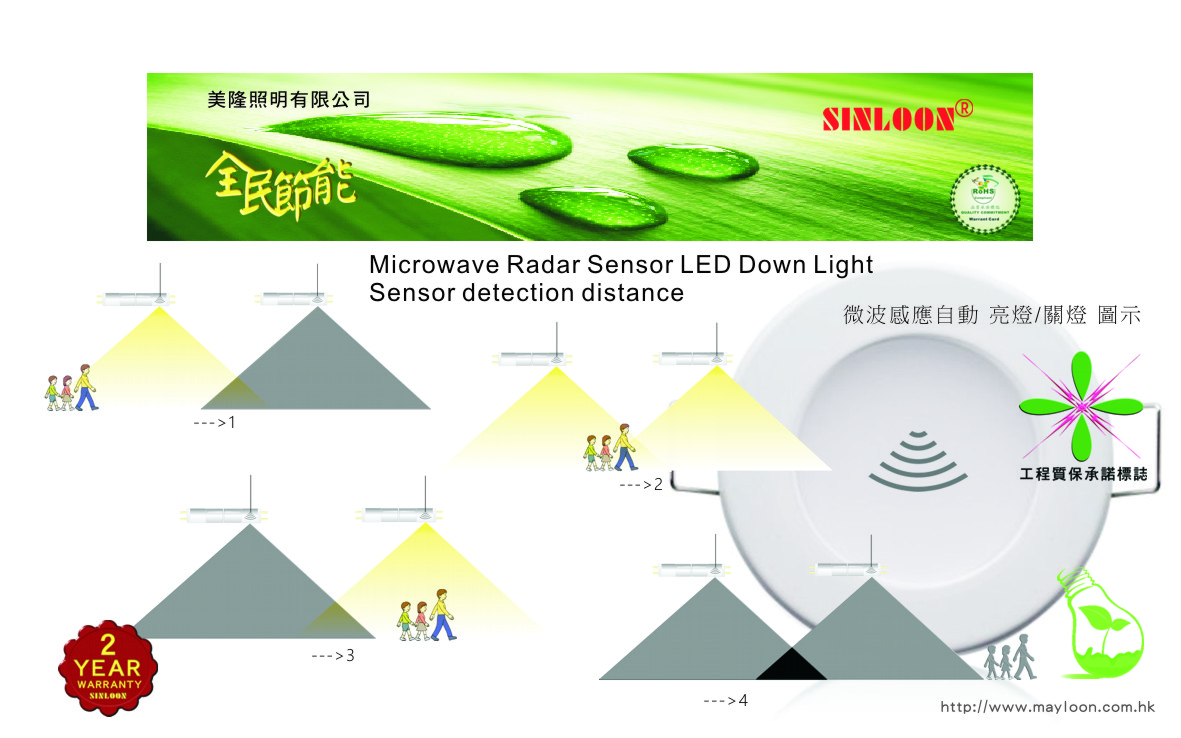

感應距離 Sensor distance: 10M-20M 10M-20M
延時時間 Extension time:<2-200s To choose <2~200s to choose <2~200s to choose
波段頻率 Band frequency: 5.8GHz 5.8GHz
功率因數 Power Factor: >85 >85
* If you have any question which is not is in the specification, please contact us.
*在本規格書裡如果您未能找到或參數指標未能達到你的應用要求即未在本規格書裡表現出來請與我們聯絡.
*1: 2700K-3500K (Warm white); 4000K-5500K (Nature white); 6000K-7500K ( Cool white).
imension:
規格尺寸 規格尺寸
* If you need others special frame size, please contact us. (如有需要其它特殊尺寸請與我們聯絡).
