LED Down Light

週一, 14 十二月 2015 13:14 LED 筒燈/天花燈 5W/ Lighting - LED Recessed Spot Light

知慳惜電

SINLOON^®		LED 筒燈/天花燈
		LED Down Light - 16
Data Specification: Download 5W



erformance & parameter of product

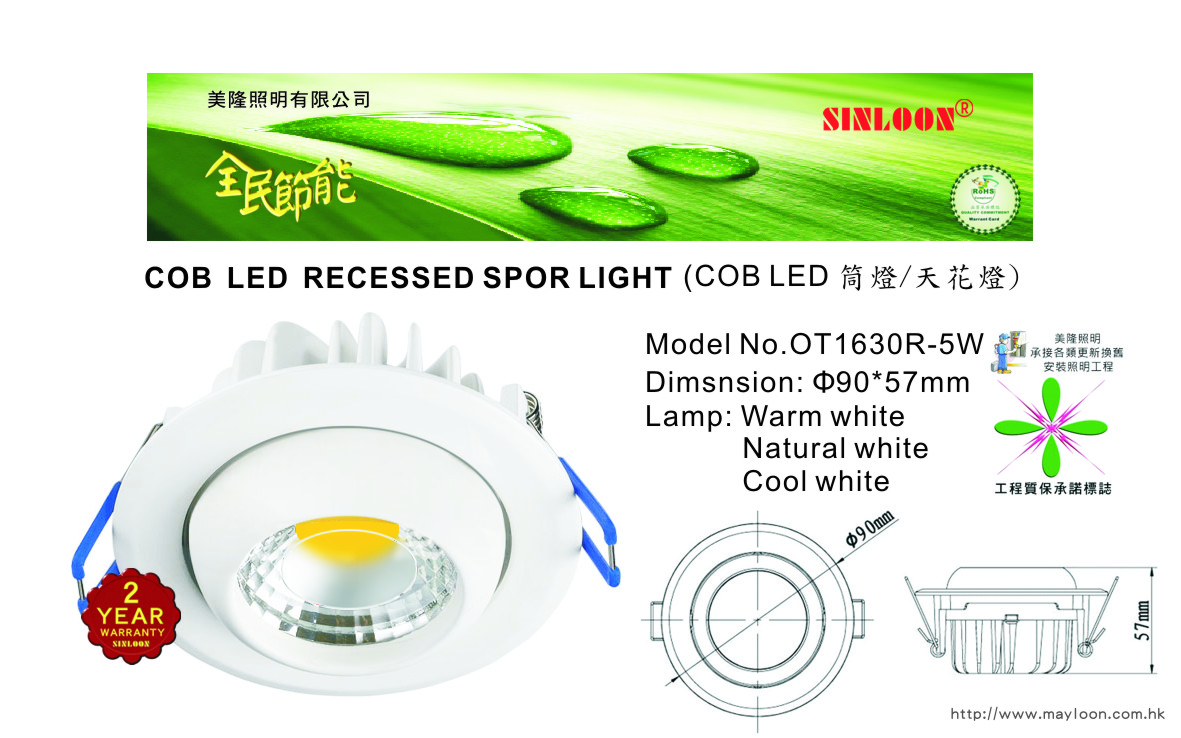

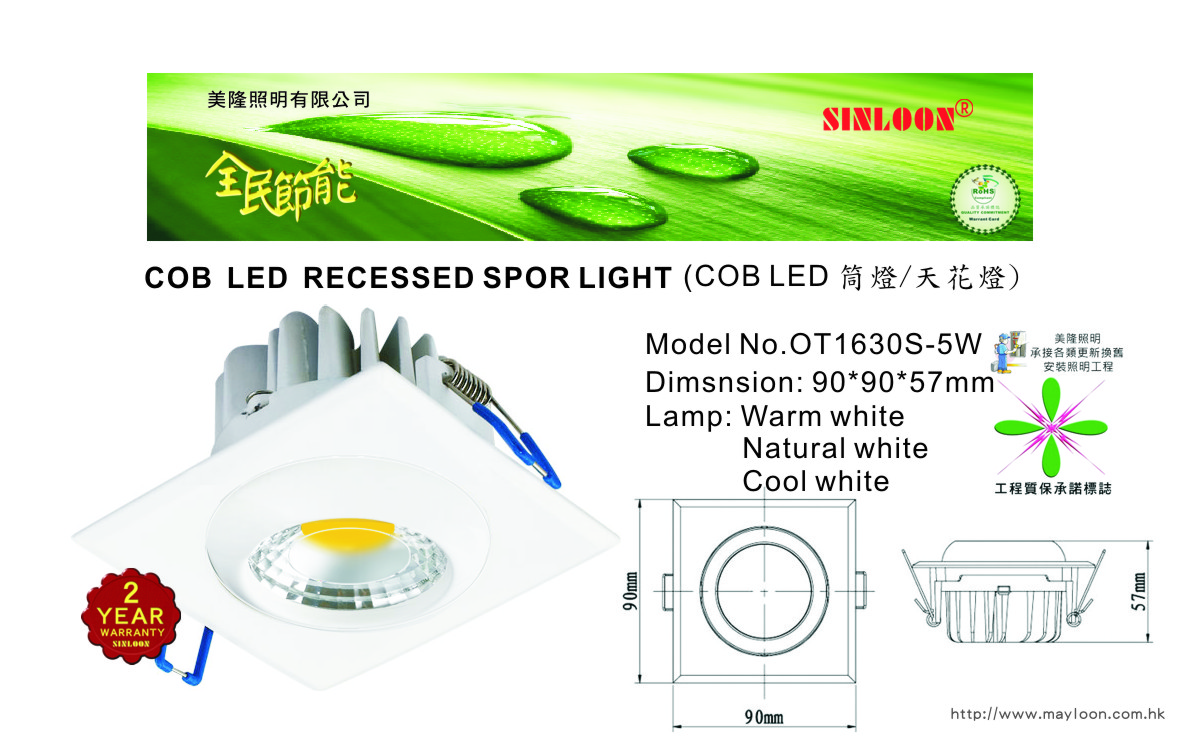

Model No.		Part Number		OT1630R-5W		OT1630S-5W
Performance Parameter		Lamp		Warm white/Natural white/Cool white
		Lumen (lm)		320lm/350lm/380lm		320lm/350lm/380lm
		Color temperature（K)		3000K/4200K/6500K
		CRI		≥70		≥70
		Type of LED		COB LED		COB LED
		Beam angle		87°		87°
		Decay rate (%)		less than 3% within 1000 working hours
		Total power (W)		5-6W		5-6W
		Lifespan (Hrs)		≥30000Hrs		≥30000Hrs
		High voltage testing		1750Vac/1min		1750Vac/1min
LED parameter		Lighting efficiency		100LM/W		100LM/W
		Chip quantity		25Pcs		25Pcs
		Series-parallel way		5S5P		5S5P
		Voltage		15-17VDC		15-17VDC
		Current		300mA		300mA
Driver Parameter		Input parameter		100～240VAC，50/60Hz
		Power factor		0.5		0.5
		Output parameter		9-18VDC, 300mA		9-18VDC, 300mA
Structure Parameter		Material		Cast-Aluminium		Cast-Aluminium
		Dimension		Ф90*57mm		909057mm
		Cut-out		Ф80mm		Ф80mm
		Protection class		calss I		calss I
		Ingress Protection		IP20		IP20
Environment Parameter		Application		Hotel,Home-lighting,Recreation place, Supermarket, Office building
		Operating temperature		-25℃ ～ 50℃、10% ～ 90% R.H.
		Storage temperature		-30℃ ～ 85℃、0% ～ 95% R.H.
Packing Specification		Quantity NW/GW		50 pcs 13.8/15.8Kg		50 pcs 14.5/16.5Kg
		Carton size:		52.5x21.5x35 cm		57.5x20.5x32.5 cm
-	-	-	-	-	-
---------------	---------------	------------------	------------------	------------------	------------------	------------------	------------------
