LED Down Light

週一, 14 十二月 2015 13:14 LED 筒燈/天花燈 8W Lighting - LED Recessed Spot Light

知慳惜電

SINLOON^®		LED 筒燈/天花燈
		LED Down Light - 60
Data Specification: Download OT6030/6130 8W Download OT6030/6330 8W



erformance & parameter of product

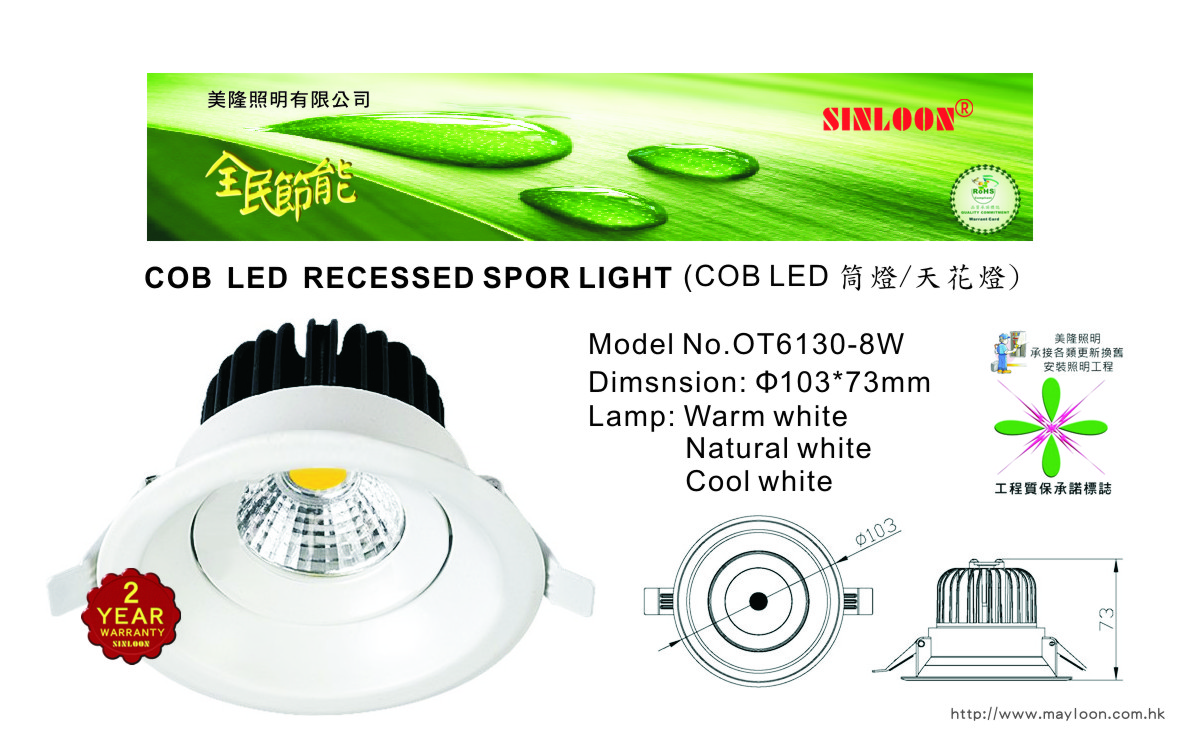

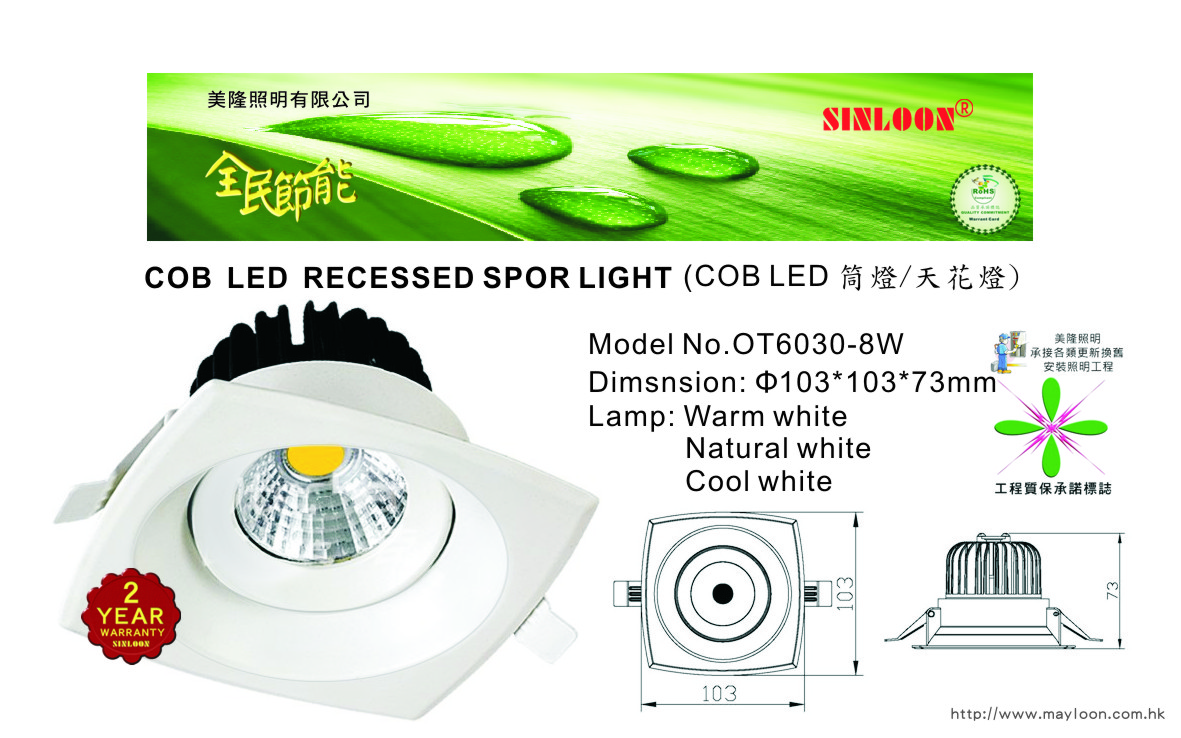

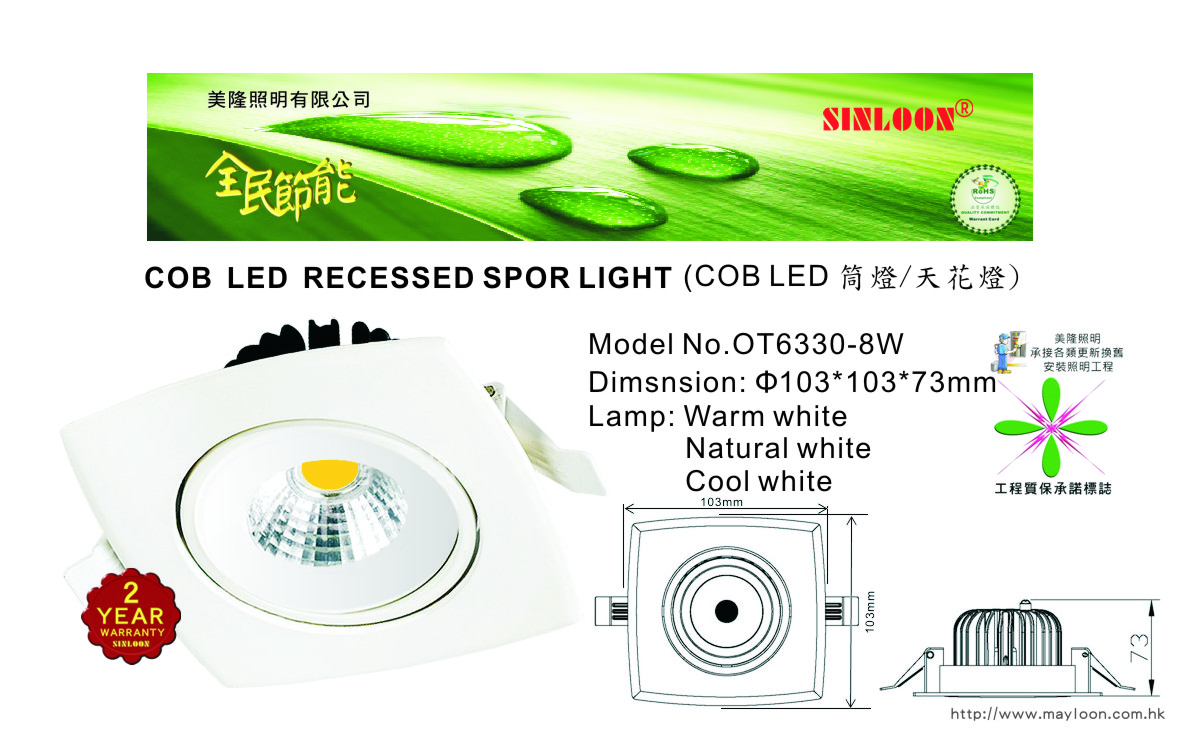

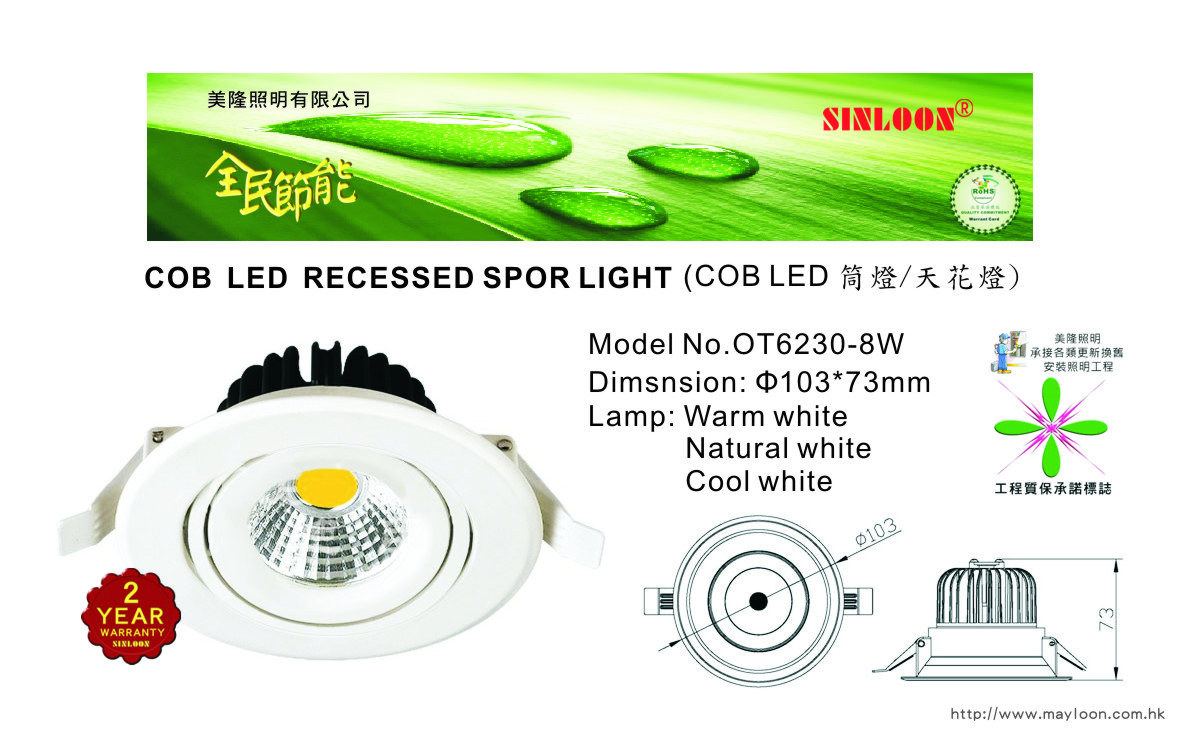

Model No.		Part Number		OT6030-8W		OT6130-8W		OT6230-8W		OT6330-8W
Performance Parameter		Lamp		Warm white/Natural white/Cool white				Warm white/Natural white/Cool white
		Lumen (lm)		480lm/500lm/530lm		480lm/500lm/530lm		480lm/500lm/530lm		480lm/500lm/530lm
		Color temperature（K)		3000K/4200K/6500K				3000K/4200K/6500K
		CRI		≥70		≥70		≥70		≥70
		Type of LED		COB LED		COB LED		COB LED		COB LED
		Beam angle		24°		24°		24°		24°
		Decay rate (%)		less than 3% within 1000 working hours				less than 3% within 1000 working hours
		Total power (W)		8-9W		8-9W		8-9W		8-9W
		Lifespan (Hrs)		≥30000Hrs		≥30000Hrs		≥30000Hrs		≥30000Hrs
		High voltage testing		1750Vac/1min		1750Vac/1min		1750Vac/1min		1750Vac/1min
LED parameter		Lighting efficiency		100LM/W		100LM/W		100LM/W		100LM/W
		Chip quantity		35Pcs		35Pcs		35Pcs		35Pcs
		Series-parallel way		7S5P		7S5P		7S5P		7S5P
		Voltage		21-23VDC		21-23VDC		21-23VDC		21-23VDC
		Current		350mA		350mA		350mA		350mA
Driver Parameter		Input parameter		100～240VAC，50/60Hz				100～240VAC，50/60Hz
		Power factor		0.8		0.8		0.8		0.8
		Output parameter		18-23VDC, 350mA		18-23VDC, 350mA		18-23VDC, 350mA		18-23VDC, 350mA
Structure Parameter		Material		Cast-Aluminium		Cast-Aluminium		Cast-Aluminium		Cast-Aluminium
		Dimension		10310373mm		Ф103*73mm		Ф103*73mm		10310373mm
		Cut-out		Ф90mm		Ф80mm		Ф80mm		Ф90mm
		Protection class		calss I		calss I		calss I		calss I
		Ingress Protection		IP20		IP20		IP20		IP20
Environment Parameter		Application		Hotel, Home-lighting, Recreation place, Supermarket, Office building. (酒店,家居,商場,商業辦公室)
		Operating temperature		-25℃ ～ 50℃、10% ～ 90% R.H.				-25℃ ～ 50℃、10% ～ 90% R.H.
		Storage temperature		-30℃ ～ 85℃、0% ～ 95% R.H.				-30℃ ～ 85℃、0% ～ 95% R.H.
Packing Specification		Quantity NG/WG		50 pcs 13/15Kg		50 pcs 12/14Kg		50 pcs 12.5/14.5Kg		50 pcs 13/15Kg
		Carton size:		550275425mm		550275425mm		575291375mm		575291375mm
-	-	-	-	-	-	-	-	-	-
--------------	--------------	--------------	--------------	--------------	--------------	--------------	--------------	--------------	--------------	--------------	--------------
