| SINLOON® | LED 路軌燈 - 37 | ||||||||
| LED Track Light - 37 | |||||||||
 Data Specification  LED Track Light - 37 series |
|||||||||
| 市場用途: |  |
 |
 |
||||||
| 商場店舖; 酒店; 飾櫃; 展示櫃等. | |||||||||
| Performance | Product Model: | OT-3730-10W | OT-3740-20W | OT-3750-30W | |||||
| Performance parameter | Lamp | Warm white / Natural white / Cool white (暧白/自然白/冷白) | |||||||
| Lumen (lm) | 550 lm / 570 lm / 600lm | 1100lm/1220lm/1300lm | 1550lm/1650lm/1780lm | ||||||
| Color temperature（K) | 3000K / 4200K / 6500K | ||||||||
| CRI | ≥70 | ≥70 | ≥70 | ||||||
| Type of LED | COB LED | COB LED | COB LED | ||||||
| Beam angle | 65° | 67.8° | 68° | ||||||
| Decay rate (%) | Less than 3% within 1000 working hours | ||||||||
| Total power (W) | 10-11W | 20-22W | 31-34W | ||||||
| Lifespan (Hrs) | ≥30000Hrs | ≥30000Hrs | ≥30000Hrs | ||||||
| High voltage testing | 1750Vac/1min | 1750Vac/1min | 1750Vac/1min | ||||||
| LED Parameter | Lighting efficiency | 100LM/W | 100LM/W | 100LM/W | |||||
| Chip quantity | 50 Pcs | 96 Pcs | 144 Pcs | ||||||
| Series-parallel way | 5S10P | 12S8P | 12S12P | ||||||
| Voltage | 15-17VDC | 37-39VDC | 37-39VDC | ||||||
| Current | 550mA | 550mA | 850mA | ||||||
| Driver Parameter | Input parameter | 100～240VAC，50/60Hz | |||||||
| Power factor | 0.8 | 0.9 | 0.9 | ||||||
| Output parameter | 18-24VDC,550mA | 24-49VDC,550mA | 24-44VDC,550mA | ||||||
| Structure Parameter | Material | Aluminium | Aluminium | Aluminium | |||||

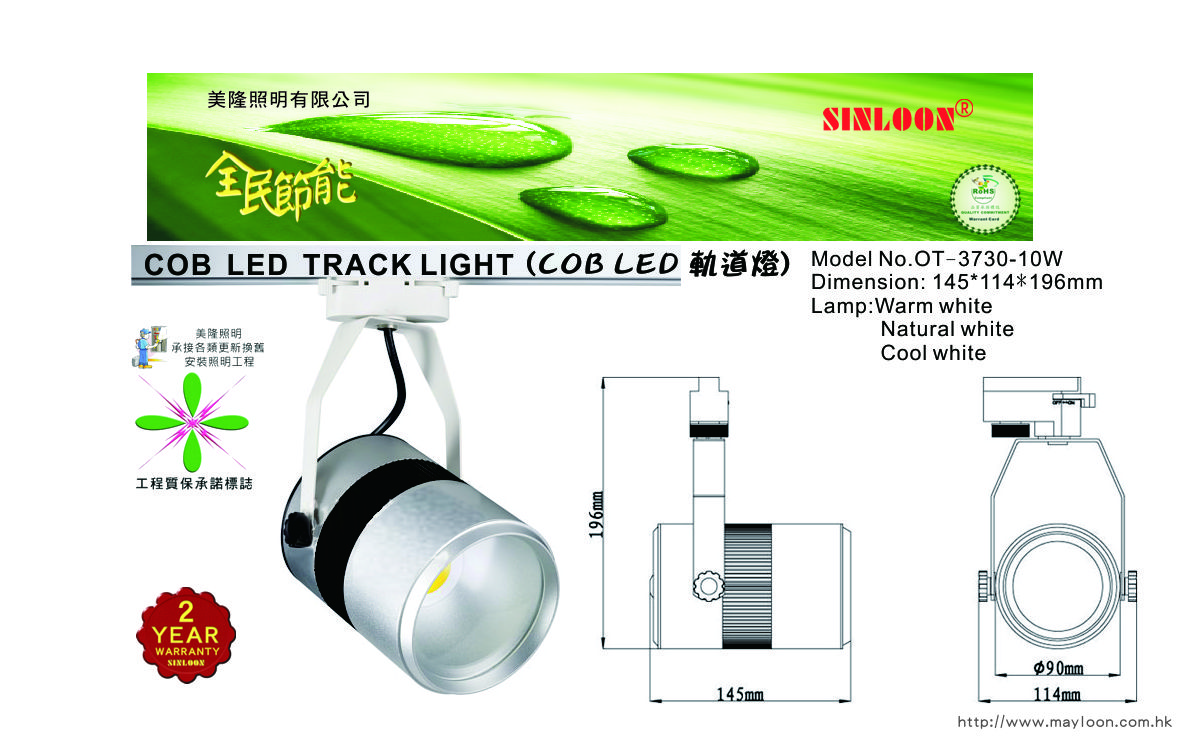

| Dimension | 145*114*196mm | 158*141*239mm | 182*173*264mm | ||||||
| Cut-out | / | / | / | ||||||
| Protection class | calss I | calss I | calss I | ||||||
| IP | IP20 | IP20 | IP20 | ||||||
| Environment Parameter | Application | Hotel、Home-lighting、Recreation place、Supermarket、Office building | |||||||
| Operating temperature | -25℃ ～ 50℃、10% ～ 90% R.H. | ||||||||
| Storage temperature | -30℃ ～ 85℃、0% ～ 95% R.H. | ||||||||
| Packing Specification | Q'ty. / Weight: | 20 pcs | 4/6kg | 20 pcs | 8/10Kg | 10 pcs | 6/8kg | ||
| Carton Size: | 28.5x28x50 cm | 31.5x31.5x52.5 cm | |||||||
| -------------- | -------------- | -------------- | -------------- | -------------- | -------------- | -------------- | -------------- | -------------- | -------------- |
| * Others data not in the specification of data, please contact us. |  |
||||||||
| 如果你要求的規格參數未在本規格書裡表現出來請與我們聯絡. | |||||||||
