| SINLOON® | T8 LED 單管支架系列 | Batten-A1 | |||||||
| T8 LED Tube single prop fixture - series | |||||||||
  : LED Batten Single - A1 |
|||||||||

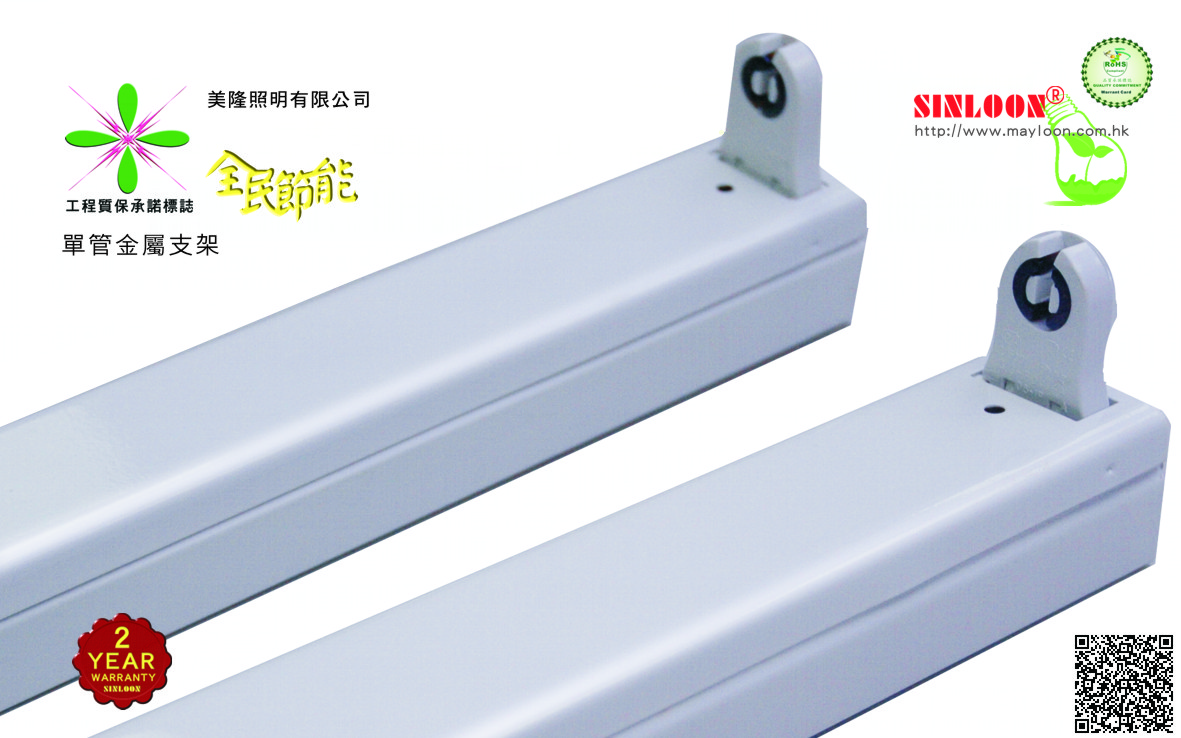

| ◆ Body Fixtures: | Figure: | ||||||||
| ● The chassis uses high quality cold rolled steel with standard acid packing, |  |
 |
|||||||
| ●The product has been static electricity spray painted with environ mental | |||||||||
| power. It can be resistant to rust. | |||||||||
| ●The service life of LED tube can be 50000hrs. The way of power supply is |  |
 |
|||||||
| single-ended. | |||||||||
| ●The voltage is AC110V-277V | |||||||||
| Applying: | |||||||||
| ●Industrial factory buildings, underground packing lots, schools, shopping malls. | |||||||||
| ■ Describe of the lighting fixture: | |||||||||
| Model No. | Specification | Dimension (mm) | Remark | ||||||
| Case | Lid | L | W | H | h | ||||
| T5F2-6050-10W | T5 | Plat band | 575 | 40 | 30 | 58 | 2ft | 0.6M | |
| T5F4-12050-18W | T5 | Plat band | 1175 | 40 | 30 | 58 | 4ft | 1.2M | |
| T8F2-6050-10W | T8 | Plat band | 625 | 50 | 38 | 74 | 2ft | 0.6M | |
| T8F4-12050-18W | T8 | Plat band | 1230 | 50 | 38 | 74 | 4ft | 1.2M | |

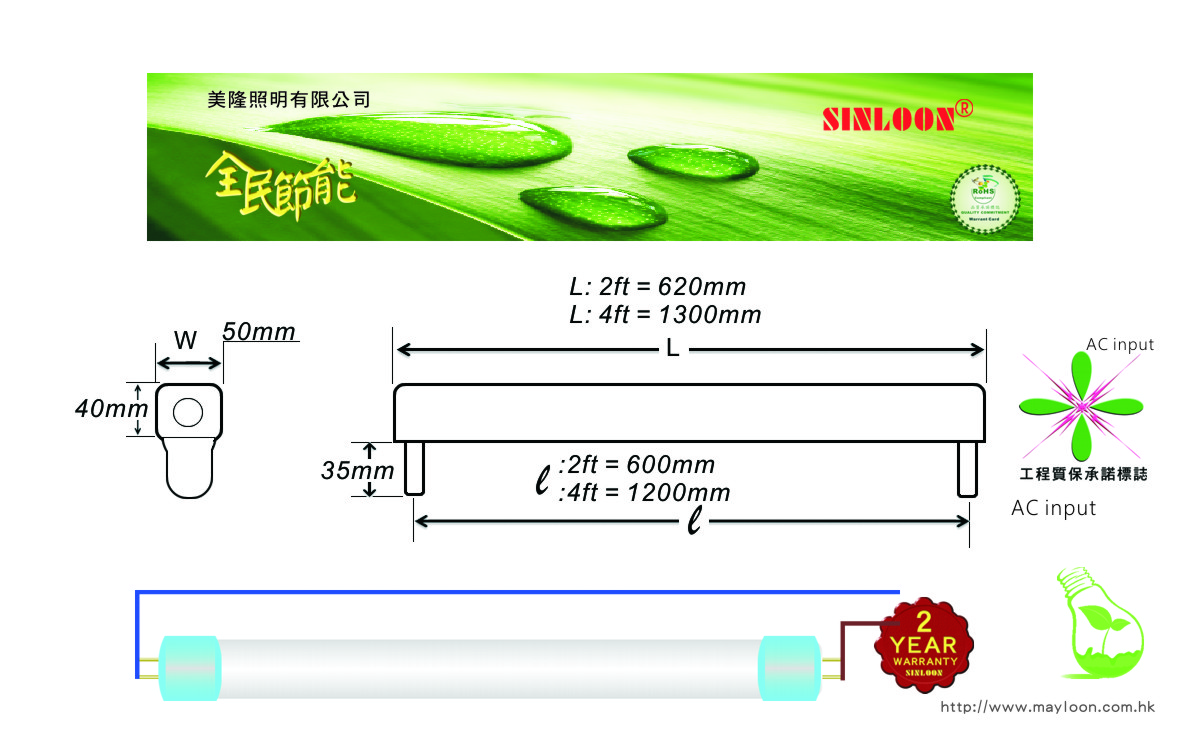

| Dimension: | |||||||||
 |
- | ||||||||
| 產品描述: | |||||||||
| 燈具殼體採用高強度優質鋼板,表面静電噴塑處理,粉體黏附力強,色澤均勻,防銹和不易脫漆。 | |||||||||
| 本體經鉚接而成,側面有加強筋設計結構,高強度,使燈具不易扭曲變形。 | |||||||||
| 燈座及接線端子均採用阻燃PC材料,符合國家3C標準。 | |||||||||
| 接駁電線耐溫90℃,耐壓300-500V.符合國家3C標準。 | - |  |
|||||||
| 安裝方式可採用吸頂, 吊杆,吊鏈式,靈活應用。 | |||||||||

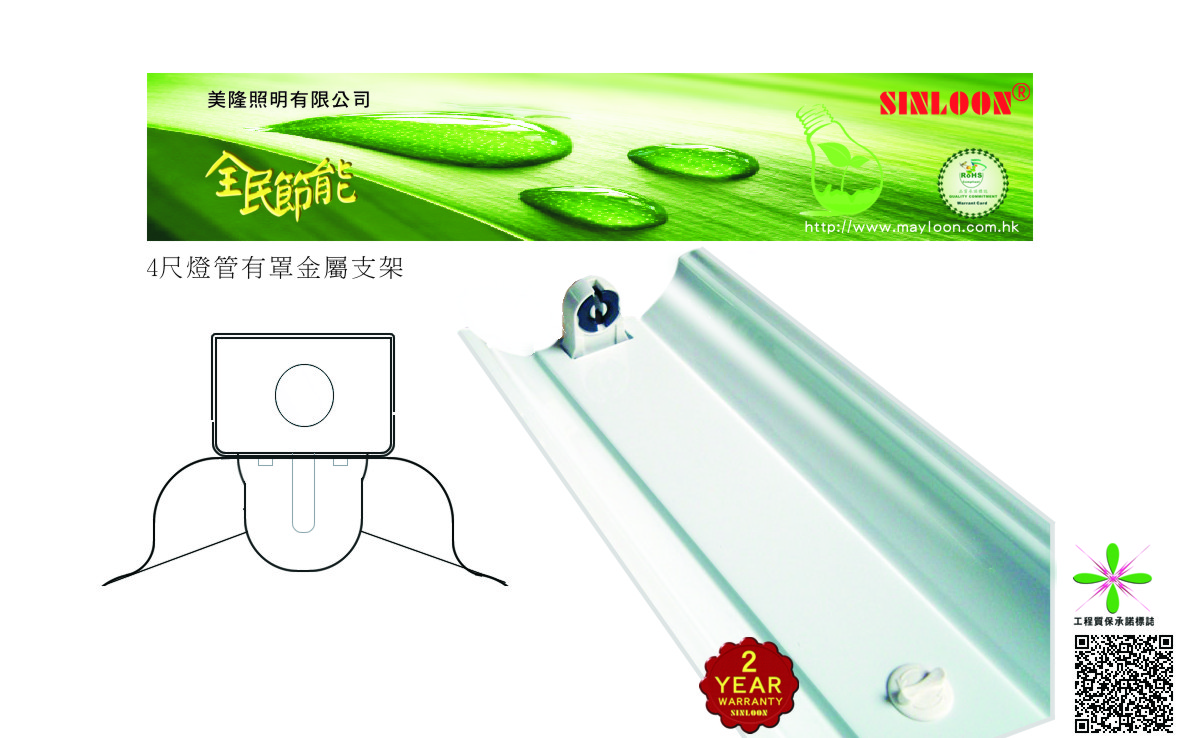

| 體殼有平盖,人字盖,可以根據用戶要求配置。 | |||||||||
