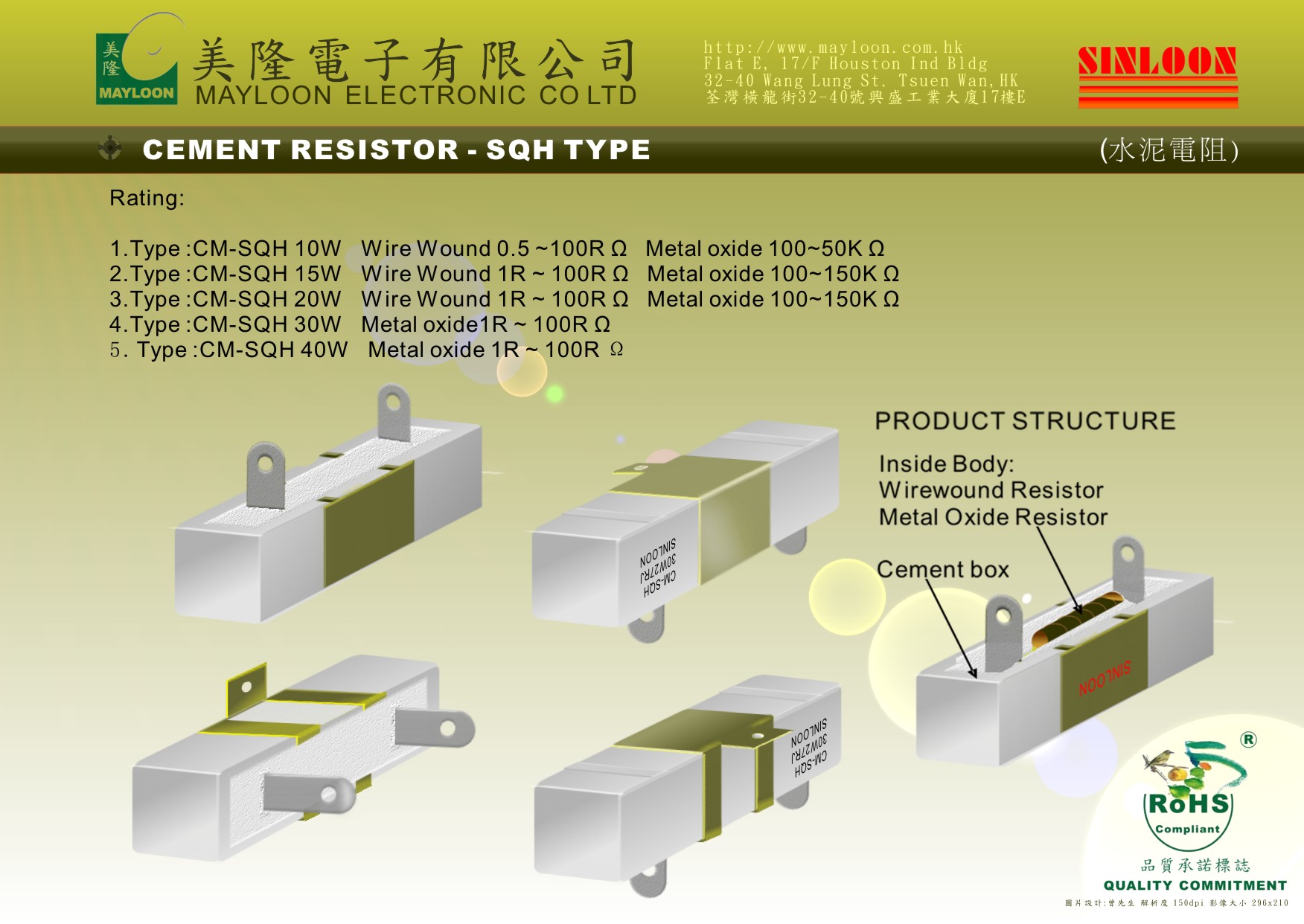

Cement Resistor - SQH Type

E-mail 列印

水泥電阻

Data Sheet  PDF File  Data Spec Cement Resistor - SQH Type

Cement FEATURE

  • Exceptionally small and sturdy, mechanically safe.
  • Excellent electrical characteristic
  • Tolerance of ±5% and ±10% are standard.
  • Non-inductive type are available on request.
  • Heat and flame resistance
  • The materials used and the construction techniques ensure excellent   flame resistance, arc resistance and moisture resistance as well as self-extinguishing capabilities, They will withstand the most rigorous loading test.
  • As resistors in radio and television receiver, The hazardous conditions of  smoking and reheat can be completely prevented by the proper choice of power resistors.
  • For high resistance value, The winding core will be replaced by metal oxide film core (RS Type)
  • Applicable specifications: EIA RS-344 and EIA RC-649
CM-SQH CM-SQP CM-SQM CM-SQT CM-SQZ CM-SQV CM-MPH CM-AH CM-PHD CM-MPR
Rated

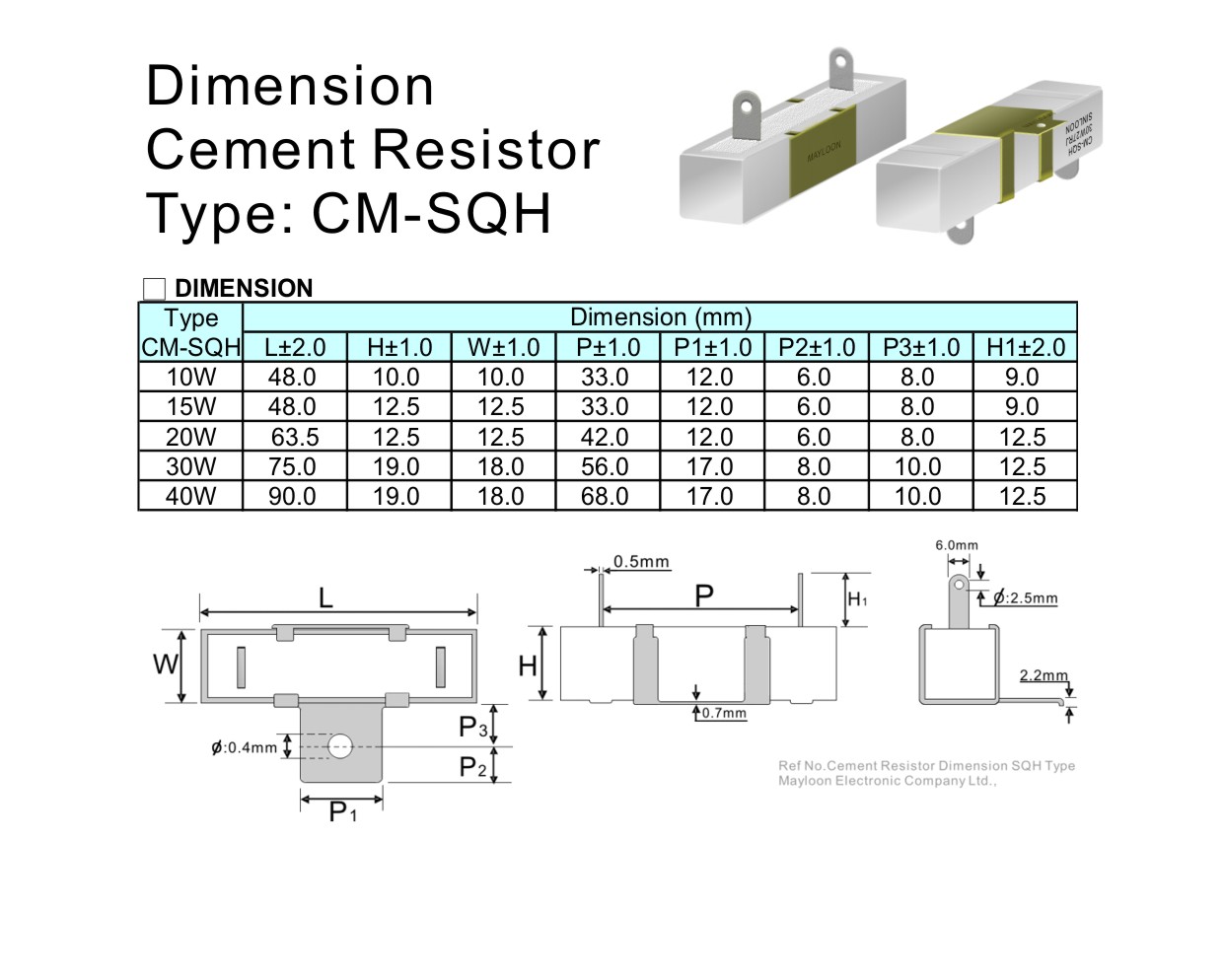

Type Power Resistance  (Ω) Max. working Dimension Dimension (mm)
Rated Wire Wound Metal Oxide Voltage Size (mm) L±2.0 H±1.0 W±1.0 P±1.0
CM-SQH 10W 0.5R ~ 100R 100R ~ 50K 500V 48x10x10 48.0 10.0 10.0 33.0
15W 1.0R ~ 100R 100R ~ 150K 500V 48x12x12 48.0 12.5 12.5 33.0
20W 1.0R ~ 100R 100R ~ 150K 500V 65x12x12 63.5 12.5 12.5 42.0
30W 1.0R ~ 100R 1KV 75x19x18 75.0 19.0 18.0 56.0
40W 1.0R ~ 100R 1KV 90x19x18 90.0 19.0 18.0 68.0
