Data Sheet Cement Resistor - SQP Type
FEATURE
- Exceptionally small and sturdy, mechanically safe.
- Excellent electrical characteristic
- Tolerance of ±5% and ±10% are standard.
- Non-inductive type are available on request.
- Heat and flame resistance
- The materials used and the construction techniques ensure excellent flame resistance, arc resistance and moisture resistance as well as self-extinguishing capabilities, They will withstand the most rigorous loading test.
- As resistors in radio and television receiver, The hazardous conditions of smoking and reheat can be completely prevented by the proper choice of power resistors.
- For high resistance value, The winding core will be replaced by metal oxide film core (RS Type)
- Applicable specifications: EIA RS-344 and EIA RC-649
CM-SQH | CM-SQP | CM-SQM | CM-SQT | CM-SQZ | CM-SQV | CM-MPH | CM-AH | CM-PHD | CM-MPR |

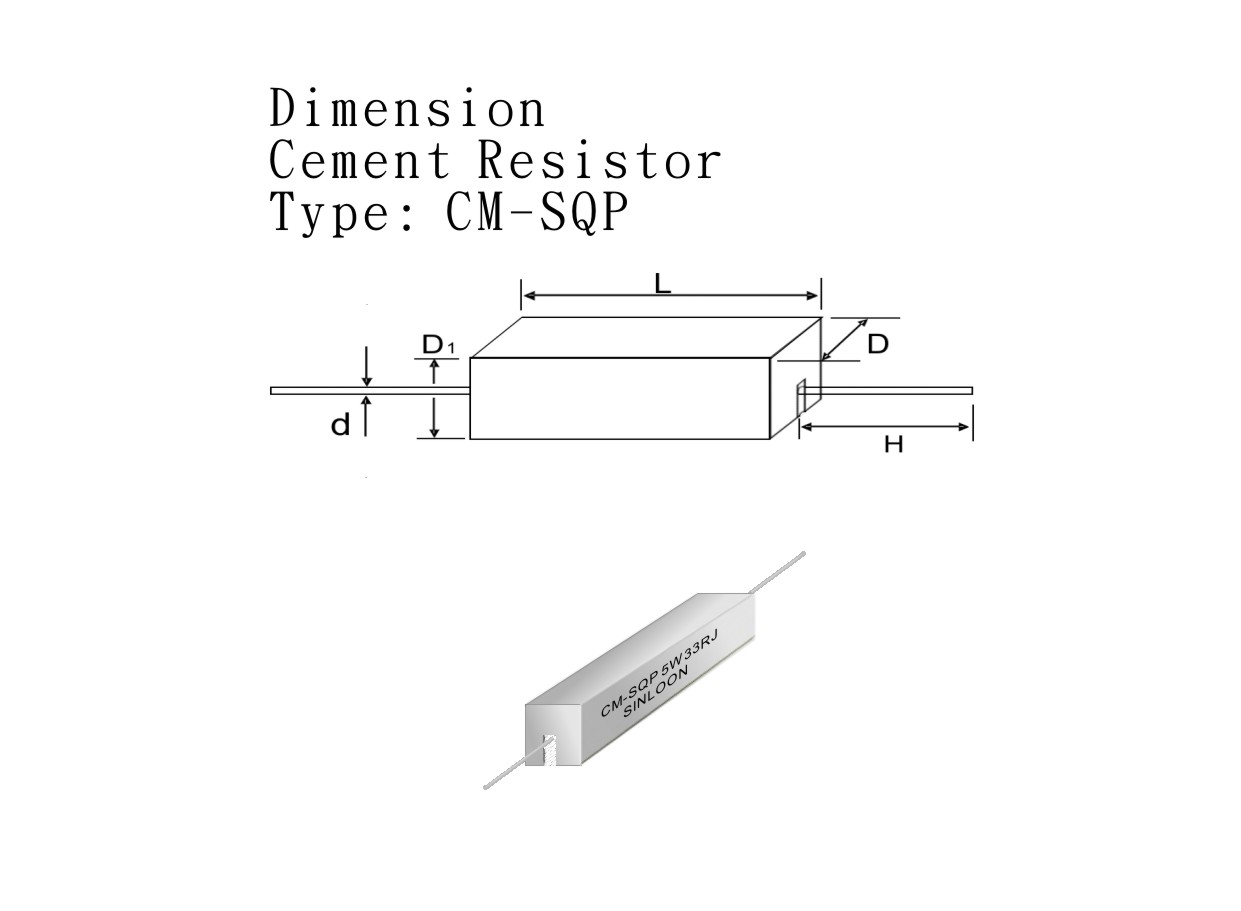

DIMENSION AND DATA RATING | |||||||||
TYPE | Value Range (Ω) | Max working | Dimension (mm) | ||||||
CM-SQP | Wire Wound | Metal oxide | voltage | L | H±3.0 | D | D1 | d±0.03 | |
2W | 0.1~50 | 50~20K | 150V | 18.0 | 32.0 | 7.0 | 7.0 | 0.65 | |
3W | 0.1~50 | 50~33K | 300V | 22.0 | 32.0 | 8.0 | 8.0 | 0.80 | |
5W | 0.1~50 | 50~50K | 350V | 22.0 | 32.0 | 9.5 | 9.0 | 0.80 | |
7W | 0.1~100 | 100~50K | 500V | 35.0 | 32.0 | 9.5 | 9.0 | 0.80 | |
10W | 0.1~100 | 100~50K | 500V | 48.0 | 32.0 | 9.5 | 9.0 | 0.80 | |
15W | 0.1~100 | 100~50K | 500V | 48.0 | 32.0 | 12.0 | 12.0 | 0.80 | |
20W | 0.1~100 | 100~150K | 500V | 60.0 | 32.0 | 13.0 | 13.0 | 0.80 | |
25W | 0.1~100 | 100~150K | 1KV | 60.0 | 32.0 | 13.0 | 13.0 | 0.80 | |
30W | 0.1~500 | 1KV | 77.0 | 32.0 | 18.0 | 17.0 | 0.80 | ||
40W | 0.1~500 | 1KV | 90.0 | 32.0 | 19.0 | 18.0 | 0.80 | ||
Resistance Range for standard resistance, Below of over this resistance request. | |||||||||
Non-inductive type up 20Ω only. |
