高精密金屬膜晶圓電阻 Resistor - MELF

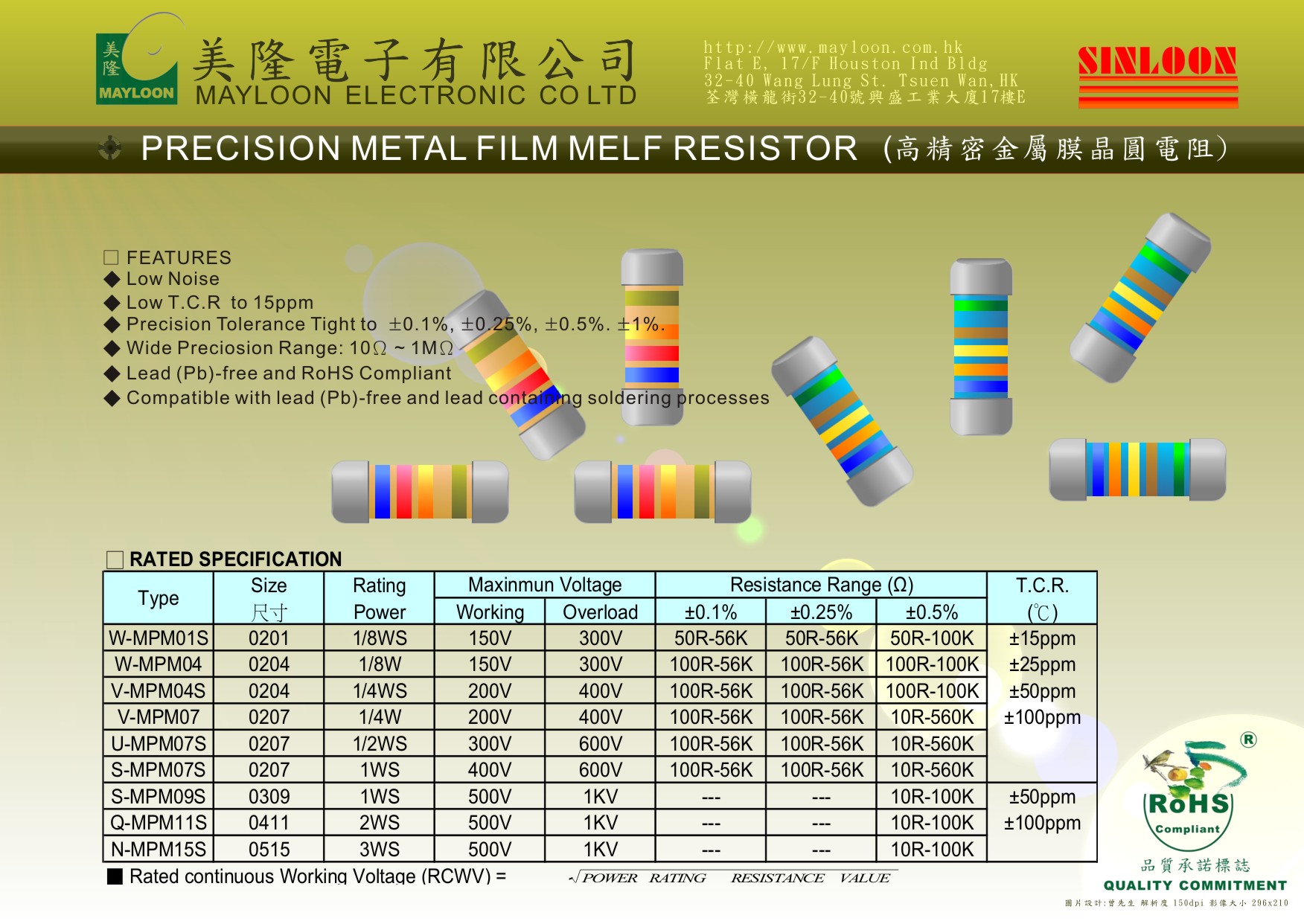

SINLOON^®		高精密金屬膜晶圓電阻			U-MPM07 (1/2WS)
		Tolerance: ±0.1% ~ ±1%			Precision Metal Film MELF Resistor

EATURES
Low Noise
Low T.C.R to 15ppm
Precision Tolerance Tight to ±0.1%, ±0.25%, ±0.5%. ±1%.
Wide Precision Range: 10Ω ~ 1MΩ							-	-
Lead (Pb)-free and RoHS Compliant
Compatible with lead (Pb)-free and lead containing soldering processes

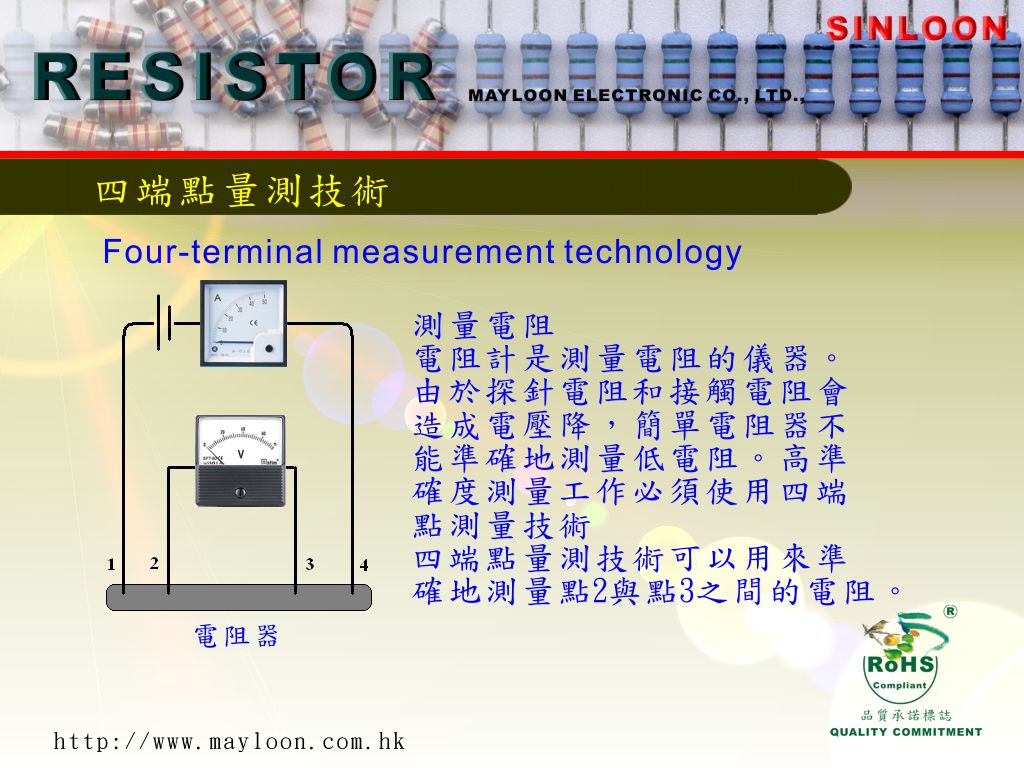

PPLICATIONS					四端點量測技術可以用來準確地測量點2與點3之間的電阻。
Test and measuring equipment					測量電阻電阻計是測量電阻的儀器。由於探針電阻和接觸電阻會造成電壓降，簡單電阻器不能準確地測量低電阻。高準確度測量工作必須使用四端點測量技術（four-terminal measurement technology）。
Industrial and medical electronics

The MPM- Metal film Resistor are made by depositing special treated
metal film onto ceramic core in ultra high vacuum. Both ends
of the core are plated with precious metal to ensure low noise
and small temperature coefficient. MPM Resistor are widely applied in
high fidelity stereo, electronic calculators, computers, testing instruments,
meters, auto controlled equipment, military devices and aerospace equipment.

RATED SPECIFICATION
Type	Size	Rating	Maximum Voltage		Resistance Range (Ω)			Package
		Power	Working	Overload	±0.1%	±0.25%	±0.5%	Quantity Reel
U-MPM07	0207	1/2WS	300V	600V	50R-56K	50R-56K	10R-560K	2000 pcs
