Cement Resistor - SQV Type

E-mail 列印

水泥電阻

PDF File  Data Spec Cement Resistor - SQV Type

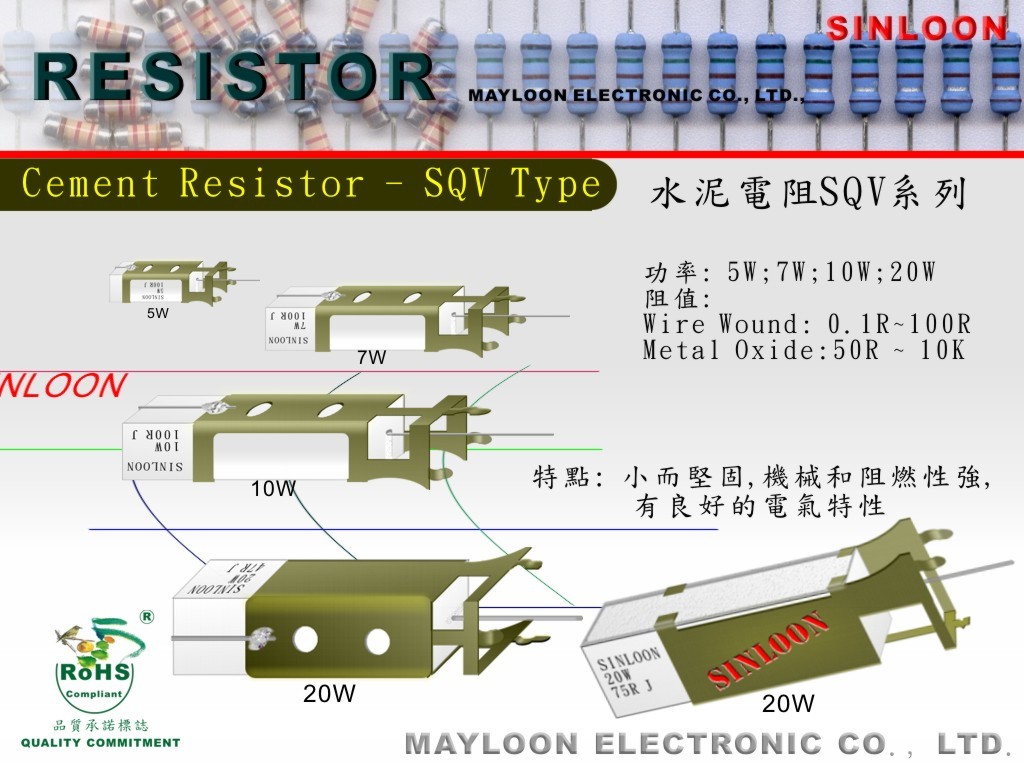

Cement FEATURE

  • Exceptionally small and sturdy, mechanically safe.
  • Excellent electrical characteristic
  • Tolerance of ±5% and ±10% are standard.
  • Non-inductive type are available on request.
  • Heat and flame resistance
  • The materials used and the construction techniques ensure excellent   flame resistance, arc resistance and moisture resistance as well as self-extinguishing capabilities, They will withstand the most rigorous loading test.
  • As resistors in radio and television receiver, The hazardous conditions of  smoking and reheat can be completely prevented by the proper choice of power resistors.
  • For high resistance value, The winding core will be replaced by metal oxide film core (RS Type)
  • Applicable specifications: EIA RS-344 and EIA RC-649




♦  產品特點: 小而堅固,機械安全,耐熱和阻燃性強及有良好的電氣特性,電阻值誤差 5% 和 10%







CM-SQH CM-SQP CM-SQM CM-SQT CM-SQZ CM-SQV CM-MPH CM-AH CM-PHD CM-MPR
DATA RATING

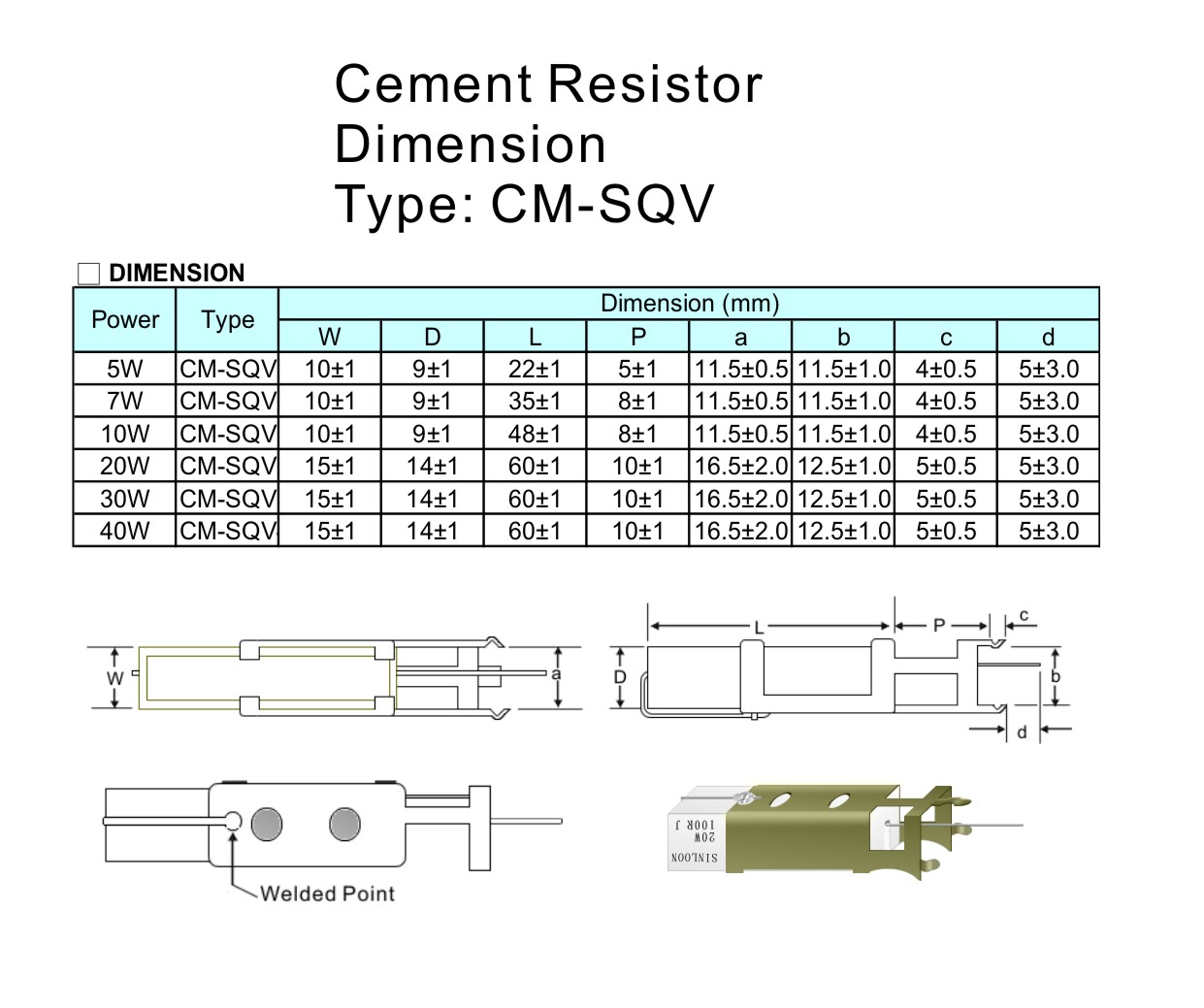

Power Type Value Range (Ω) Max working Dimension
Wire Wound Metal oxide Voltage W D L P a
5W CM-SQV5W 0.1~50 50~3.6K 350V 10±1 9±1 22±1 5±1 11.5±0.5
7W CM-SQV7W 0.1~50 50~4.7K 500V 10±1 9±1 35±1 8±1 11.5±0.5
10W CM-SQV10W 0.1~100 50~6.8K 500V 10±1 9±1 48±1 8±1 11.5±0.5
20W CM-SQV20W 0.1~100 100~10K 500V 15±1 14±1 60±1 10±1 16.5±2.0
30W CM-SQV30W 0.1~100 100~10K 500V 15±1 14±1 60±1 10±1 16.5±2.0
40W CM-SQV40W 0.1~100 100~10K 500V 15±1 14±1 60±1 10±1 16.5±2.0
