分流電阻
| SINLOON® | 分流電阻(旁路電阻) | Type: |  MSR15 (9A) |
||||||
| Low ohm & High Current: 2A~50A | Shunt Resistor | ||||||||
 eature |
(特性) |  |
 |
 |
 |
||||

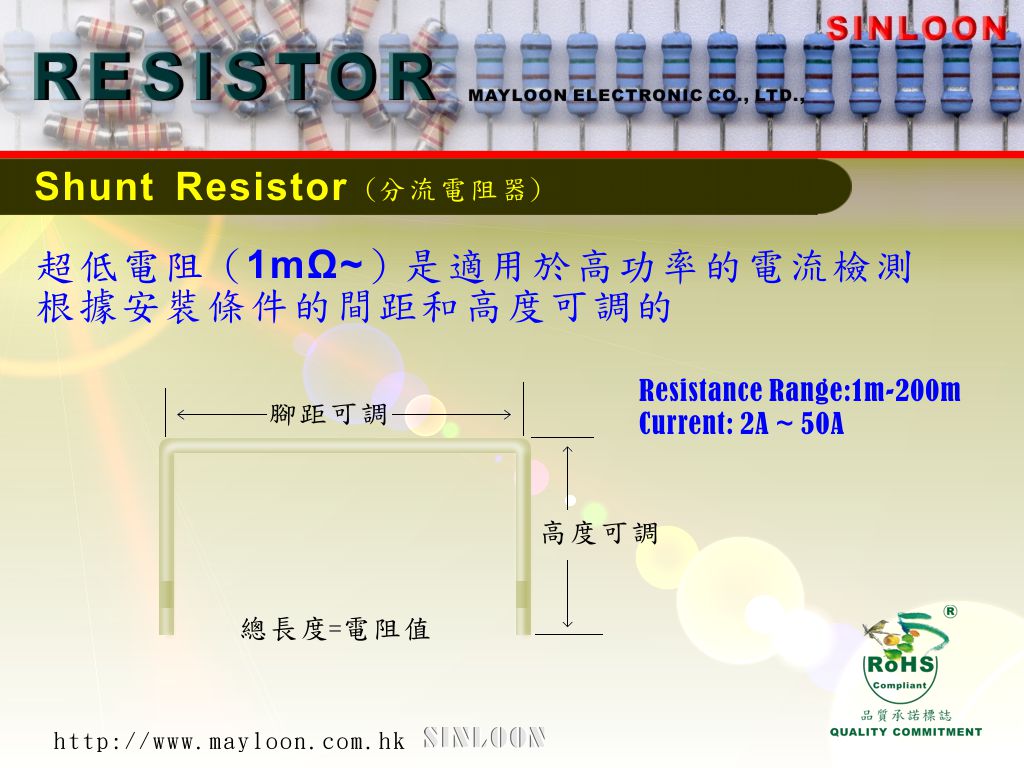

| Low ohm (1m ~ 200mΩ) High Current (2A ~ 50A). | |||||||||
| The MSR Series is suitable for high power current detection. | |||||||||
| Parches and heights adjustable according to mounting conditions. | |||||||||
| All custom-made products Easy soldering. | 並聯電阻通常應用於電流電路，作為分流。可以在電路中，作為終止對電流互感器或作為一個單獨的電阻測量附件。當使用一個組合的分流電阻可以測量大電流或結合示波器，可觀測電流波形。超低電阻（1mΩ~）是適用於高功率的電流檢測l根據安裝條件的間距和高度可調的. |
||||||||
| Products with lead-free terminations meet EU RoHS requirement. | |||||||||
|
低阻值(1m~200mΩ), 大電流 (2A~50A). |
|||||||||
|
MSR 系列適用於高功率的電流檢測. |
|||||||||
|
可依使用要求兩端間距和高度可調制 |
|||||||||
|
所有產品易於焊鍚 |
|||||||||
|
產品符歐盟RoHS要求環保條件. |
|||||||||
 pecification |
|||||||||
| Part No: | Max.(A)* | Resistance | Tolerance | TCR(Max.) | - | - | |||
| MSR15 | 9 | 10~20m | ±1%~±10% | ±100ppm/℃ | |||||
| Rated Ambient Temperature: | +70℃ | ||||||||
| Operator Temperature Range: | -40℃ to +180℃ | ||||||||
| (A)*: | Current Rated | ||||||||
| * Others data not in the specification of data, please contact us. | - | - | - |  |
|||||
| 如果你要求的規格不在本規格書裡請與我們聯絡. | |||||||||
| - | |||||||||
