晶圓電阻

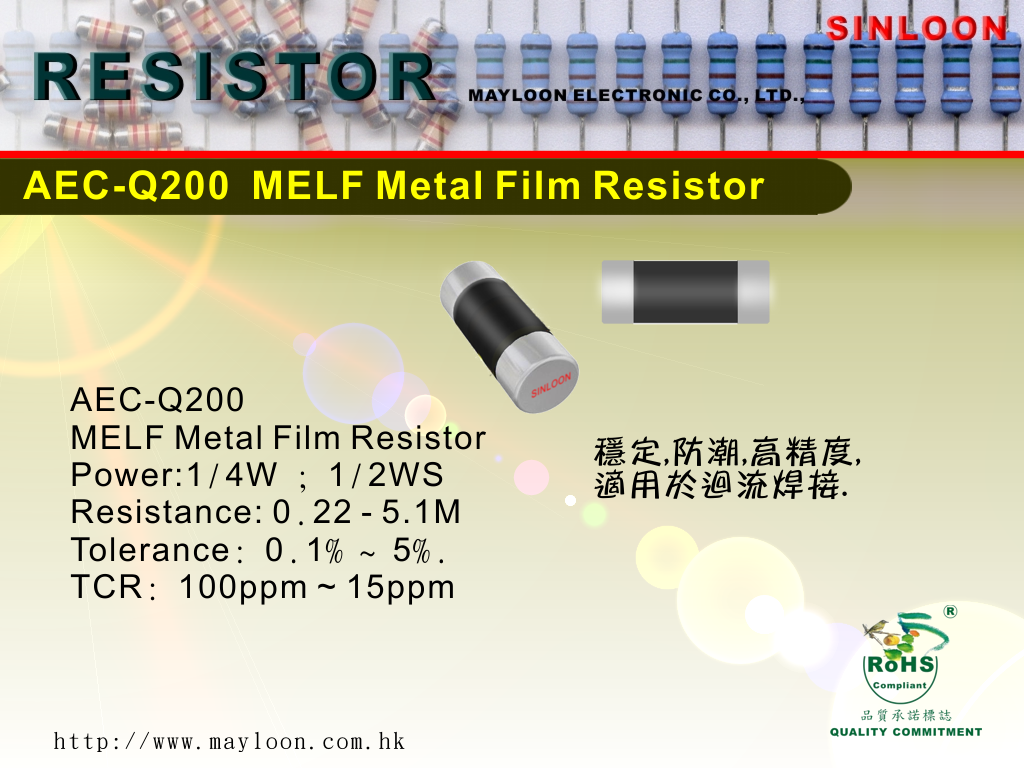

SINLOON® | AEC-Q200 高精密金屬膜晶圓電阻 | AEC-Q200 AQMMR Series | ||||||||
Tolerance: ±0.1% ~ ±5% | Precision Metal Film MELF Resistor | |||||||||
AEC-Q200 AQMMR | ||||||||||
• FEATURES | - | - | - | |||||||
♦Low Noise | ||||||||||
♦Low T.C.R to 15ppm | ||||||||||
♦The electrode strength is firm. | ||||||||||
♦Moisture proof, Non-Combustibility | - | - | - | - | ||||||
♦Wide Precision Range: 0.22Ω ~ 5MΩ | ||||||||||
♦Lead (Pb)-free and RoHS Compliant | ||||||||||
♦Precision Tolerance Tight to ±0.1%, ±0.25%, ±0.5%. ±1%. | ||||||||||
♦Compatible with lead (Pb)-free and lead containing soldering processes | ||||||||||
The AQMMR- Metal film Resistor are made by depositing special treated metal film onto ceramic core in ultra high vacuum. | ||||||||||
Both ends of the core are plated with precious metal to ensure low noise and small temperature coefficient. | ||||||||||
MPM Resistor are widely applied in high fidelity stereo, electronic calculators, computers, | ||||||||||
testing instruments, meters, auto controlled equipment, military devices and aerospace equipment. | ||||||||||
|
||||||||||
□ RATED SPECIFICATION | ||||||||||
Type | Size | Rating | Maxinmun Voltage | Resistance Range (Ω) | ||||||
Power | Working | Overload | ±0.1% | ±0.25% | ±0.5% | ±1% | ±5% | |||
V-AQMMR07 | 0207 | 1/4W | 200V | 500V | 100R-100K | 100R-100K | 10R-560K | 1R - 5M | 0.22R - 5M | |
U-AQMMR07 | 0207 | 1/2WS | 300V | 600V | 100R-100K | 100R-100K | 10R-560K | 1R - 5M | 0.22R - 5M | |
TCR: | ±15ppm; ±25ppm; ±50ppm; ±100ppm | |||||||||
- | ||||||||||
- | ||||||||||
- | ||||||||||
