AEC-Q200 Low Ohm Chip Resistor (AEC-Q200 低阻值貼片電阻 )

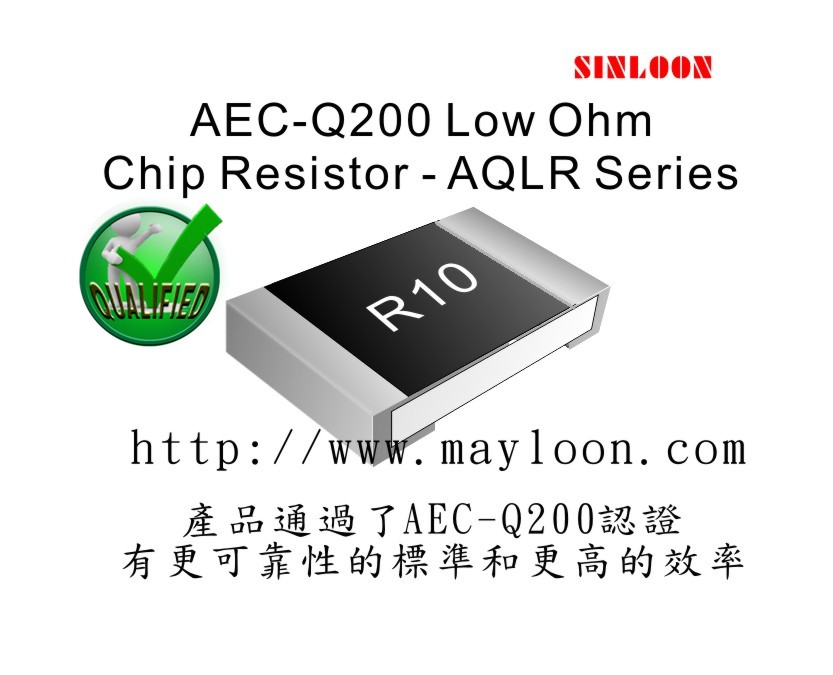

AEC-Q200 Low Ohm Chip Resistor - AQLR Series
| SINLOON® | AEC-Q200 低阻值貼片電阻 | AQLR Series | ||||||||
| AEC-Q200 Low Ohm Chip Resistor | ||||||||||
| AQLR 貼片電阻，已通過AEC-Q200認證，將可協助汽車製造商符合業界安全和可靠性標準，提高電子設計的效率和可靠性。 | ||||||||||
| FEATURE | Application | |||||||||
| AEC-Q200 rev. D compliant | Automotive electronic | |||||||||
| RoHS compliant version available | Appliance: Air conditioner, Refrigerator | |||||||||
| Leadless surface mount construction | Entertainment: Stereo, TV tuners, Tape recorder. | |||||||||
| Reliability high quality and fast delivery | Indoor lighting, Central door locking, Wiper module | |||||||||
| Reduction of assembly costs matching with placement machines | Communication equipment: Cell phone, Fax machine | |||||||||
| High precision tolerance: ±0.1% ; High power 2W - 2030. | Power equipment: Power supply, illumination equipment. | |||||||||
| Standard General Electrical Specification | ||||||||||
| Rated | Case | Type | Rated | Max. Voltage | Resistance | Tolerance | T.C.R | |||
| at 70℃ | Voltage (V) | Working | Overload | Range (mΩ) | (ppm/℃) | |||||
| 1/16W | 0402 | AQLR02 | 0.17-0.25 | 0.25V | 0.624V | 470~990 | ±1%;±5% | ±800 | ||
| 1/10W | 0603 | AQLR03 | 0.1-0.31 | 0.31V | 0.775V | 100~330 | ±1%;±5% | ±800 | ||
| 331~510 | ±600 | |||||||||
| 511~990 | ±400 | |||||||||
| 1/8W | 0805 | AQLR05 | 0.04-0.35 | 0.35V | 0.875V | 10~50 | ±1%;±5% | ±1000 | ||
| 51~100 | ±800 | |||||||||
| 101~330 | ±600 | |||||||||
| 331~990 | ±400 | |||||||||
| 1/4W | 1206 | AQLR06 | 0.05-0.5 | 0.5V | 1.25V | 10~50 | ±1%;±5% | ±800 | ||
| 51~100 | ±600 | |||||||||
| 101~330 | ±500 | |||||||||
| 331~990 | ±400 | |||||||||
| 1/3W | 1210 | AQLR10 | 0.06-0.57 | 0.57V | 1.425V | 10~50 | ±1%;±5% | ±800 | ||
| 51~100 | ±600 | |||||||||
| 101~330 | ±500 | |||||||||
| 331~990 | ±400 | |||||||||
| 1/2W | 1812 | AQLR12 | 0.07-0.7 | 0.7V | 1.75V | 10~50 | ±1%;±5% | ±800 | ||
| 51~100 | ±600 | |||||||||
| 101~330 | ±500 | |||||||||
| 331~990 | ±400 | |||||||||
| 1/2W | 2010 | AQLR20 | 0.07-0.7 | 0.7V | 1.75V | 10~50 | ±1%;±5% | ±800 | ||
| 51~100 | ±600 | |||||||||
| 101~330 | ±500 | |||||||||
| 331~990 | ±400 | |||||||||
| 1W | 1812 | AQLR18 | 0.1-0.99 | 0.99V | 2.475V | 10~50 | ±1%;±5% | ±800 | ||
| 51~100 | ±600 | |||||||||
| 101~330 | ±500 | |||||||||
| 331~990 | ±400 | |||||||||
| 1W | 2512 | AQLR25 | 0.1-0.99 | 0.99V | 2.475V | 10~50 | ±1%;±5% | ±800 | ||
| 51~100 | ±600 | |||||||||
| 101~330 | ±500 | |||||||||
| 331~990 | ±400 | |||||||||
| Jumper Resistance Value: | 50m Ω Maximum | |||||||||
| Operating Temperature Range: | -55℃ ~ +155℃ | |||||||||
 |
 |
|
||||||||
