Chip Resistor

E-mail 列印

AEC-Q200 Chip Resistor (AEC-Q200 標準型貼片電阻 )

PDF File AEC-Q200 Chip Resistor - AQCR Series

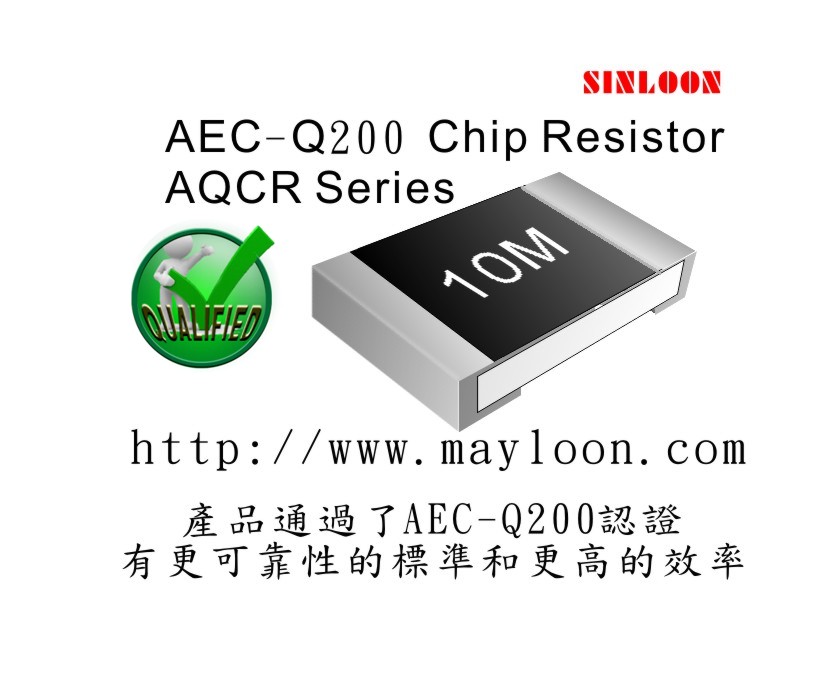

SINLOON® AEC-Q200 貼片電阻 AQCR Series
AEC-Q200 Chip Resistor
AQCR 貼片電阻,已通過AEC-Q200認證,將可協助汽車製造商符合業界安全和可靠性標準,提高電子設計的效率和可靠性。
FEATURE Application
AEC-Q200 rev. D compliant Automotive electronic
RoHS compliant version available Appliance: Air conditioner, Refrigerator
Leadless surface mount construction Entertainment: Stereo, TV tuners, Tape recorder.
Reliability high quality and fast delivery Indoor lighting, Central door locking, Wiper module
Reduction of assembly costs matching with placement machines Communication equipment: Cell phone, Fax machine
High precision tolerance:  ±0.1% ; High power 2W - 2030. Power equipment: Power supply, illumination equipment.
Standard General Electrical Specification
Size Type Rated Max. Voltage T.C.R Resistance Range (Ω) Tolerance Jumper
at 70 Working Overload (ppm/) 0.1%,0.5%. ±1%; ±2%;±5%. Current
0402 AQCR02 1/16W 50V 100V 0~+400 --- 1R-9.9R 1A
±300 --- 10R-990R
±200 10R-1M 1K~10M
0603 AQCR03 1/10W 50V 100V ±400 --- 1R-9.9R 1A
±200 --- 10R-10M
±100 10R-1M
0805 AQCR05 1/8W 150V 300V ±400 --- 1R-9.9R 1A
±200 --- 10R-10M
±100 10R-1M
1206 AQCR06 1/4W 200V 400V ±400 --- 1R-9.9R 2A
±200 --- 10R-10M
±100 10R-1M
1210 AQCR10 1/3W 200V 400V ±400 --- 1R-9.9R 2A
±200 --- 10R-10M
±100 10R-1M
1812 AQCR12 1/2W 200V 400V ±400 --- 1R-9.9R 2A
±200 --- 10R-10M
±100 10R-1M
2010 AQCR20 1/2W 200V 400V ±400 --- 1R-9.9R 2A
±200 --- 10R-10M
±100 10R-1M
1218 AQCR18 1W 200V 400V ±400 --- 1R-9.9R 2A
±200 --- 10R-10M
±100 10R-1M
2512 AQCR25 1W 200V 400V ±400 --- 1R-9.9R 2A
±200 --- 10R-10M
±100 10R-1M
2030 AQCR30 2W 200V 400V ±400 --- 1R-9.9R 2A
±200 --- 10R-10M
±100 10R-1M
Jumper Resistance Value: 50m Ω   Maximum
Operating Temperature Range: -55 ~  +155
AEC-Q200 試驗條件
