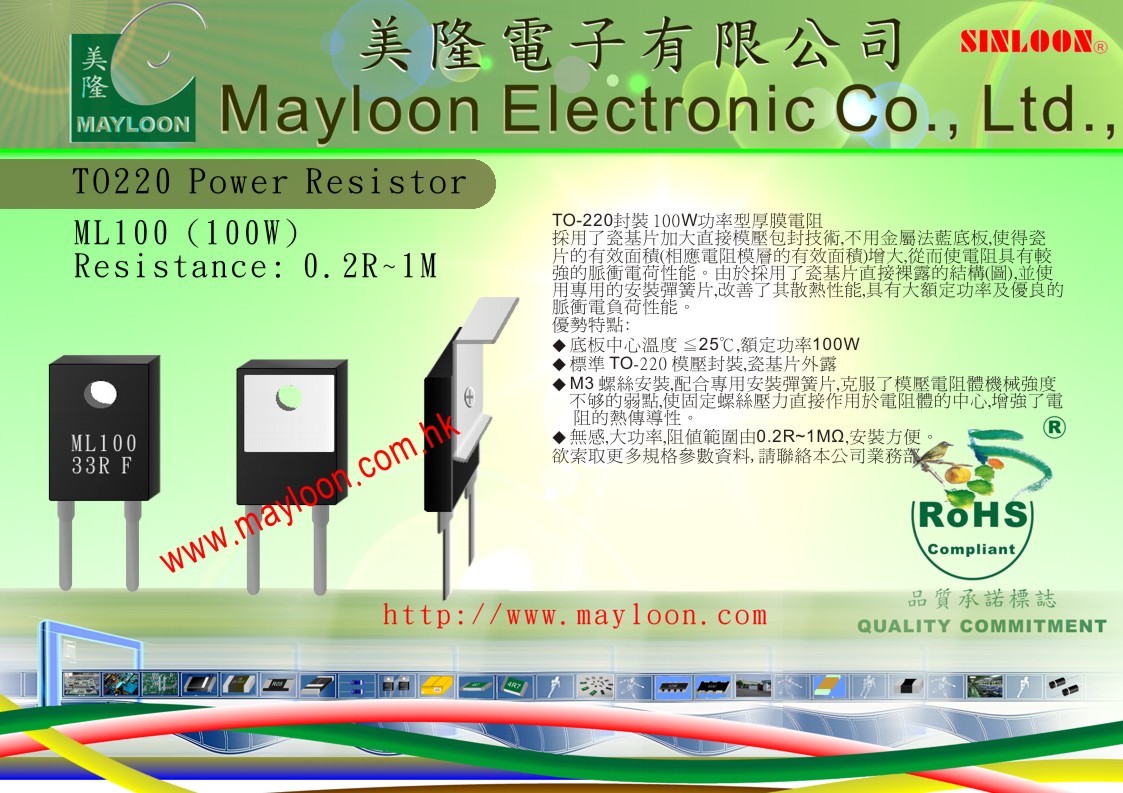

Mayloon Products Power Resistor ML series resistors satisfy demanding applications for accurate and stable power resistors housed in the convenient TO-220 case. The resistance element is
Isolated from the mounting tab by an alumina ceramic layer, providing very low ther- mal resistance and ensuring high insulation resistance between terminals and tab.
The non-inductive design makes these products especially useful in high frequency and high speed pulse applications.
Features:
- Low inductance(<50nH)
- Available in 25W,35W,or 50W
- TO-220 Style Power Package
- Single Screw Mounting to Heat Sink.
- High stability film resistance elements
- Molded Case for Protection and Easy to Mount.
- 50 Watt at 25°C Case Temperature Heat Sink Mounted
- RoHS compliant
Applications
- UPS
- Snubbers.
- Voltage Regulation.
- Low Energy Pulse Loading.
- Gate Resistors in Power Supplies.
- Terminal Resistance in RF Power Amplifiers.
- Load and Dumping Resistors in CRT Monitors.
