| SINLOON® | 貼片型熱敏電阻 | Type: 0805 (2010) | |||||||

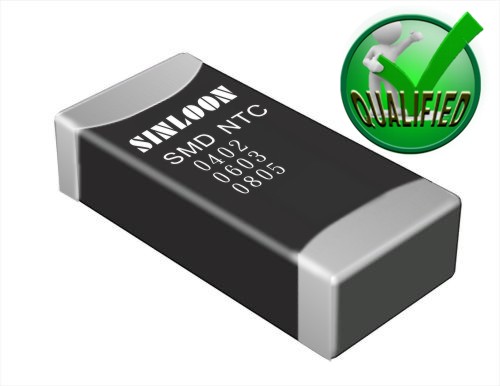

| Chip NTC Thermistor | Resistance Range: 4.7K ~ 200K ohm | ||||||||
  Data Spec NTC 0805 |
|||||||||
| ＊ 電阻Resistor - 溫度 Temperature 特性利用: |  |
 |
|||||||
| NTC 熱敏電阻隨環境溫度(T)升高,電阻值'(R)會下降,反之,當溫度(T)下降,電阻值'(R)會上升( R25℃), | |||||||||
| 其對溫度感測非常靈敏,適用於各種溫度的感測與補償電路. | |||||||||
| DATA SPECIFICATION | |||||||||
| Part Number (0805) | Resistance | B-constance | Maximum | Dissipation | Operating | Size | |||
| 25℃ | 25℃/85℃ K | Power Rating | Constant | Temp.(℃) | (mm) | ||||
| SMD05-472□3I-Β | 4K7 Ω | 3435 | 400 mW | 4 mW/℃ | -40~125 | 2.0x1.25 | |||
| SMD05-502□3I-Β | 5K Ω | 3435 | 400 mW | 4 mW/℃ | -40~125 | ||||
| SMD05-103□3I-Β | 10K Ω | 3435 | 400 mW | 4 mW/℃ | -40~125 | ||||
| SMD05-103□3K-Β | 10K Ω | 3550 | 400 mW | 4 mW/℃ | -40~125 | ||||
| SMD05-103□3T-Β | 10K Ω | 3970 | 400 mW | 4 mW/℃ | -40~125 | ||||
| SMD05-223□3RΒ | 22K Ω | 3900 | 400 mW | 4 mW/℃ | -40~125 | ||||
| SMD05-473□4A-Β | 47K Ω | 4000 | 400 mW | 4 mW/℃ | -40~125 | ||||
| SMD05-503□4A-Β | 50K Ω | 4000 | 400 mW | 4 mW/℃ | -40~125 | ||||
| SMD05-104□4A-B | 100K Ω | 4000 | 400 mW | 4 mW/℃ | -40~125 | ||||
| SMD05-204□4B-B | 200K Ω | 4100 | 400 mW | 4 mW/℃ | -40~125 | ||||
| Remark: |  |
||||||||
| □ | Resistance tolerance | ||||||||
| Β | B-constance tolerance | ||||||||
| ※ | Maximum Power Rating = Dissipation Constant x (Max. Operation Temperature - 25℃). | ||||||||
| ＊ | Please inquire to contact us for others specification. | ||||||||
