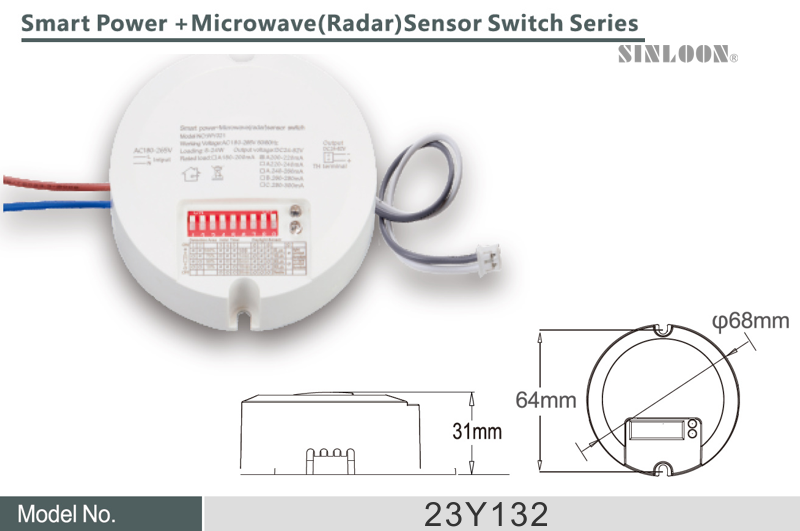

智慧電源+微波（雷達）感測器開關系列 Smart Power + Microwave (Radar) Sensor Switch Series |
|
|
|
Model No. |
23Y132F |
|
|
Working Voltage |
AC180 – 265V 50/60Hz |
|
|
Output Voltage |
DC24-82V |
|
|
Current |
210mA±10mA (Customizable) |
|
|
Controllable Loading |
8 – 24W |
|
|
Dimming Ratio |
25% (can be Customizable) |
|
|
Dimming mode selection |
All days Slightly illuminated by startup light |
|
|
Power consumption |
≦1W (Standby) |
|
|
Frequency range |
5.8GH±75MHz, OSM wave band |
|
|
Transmitting power |
<0.5mW |
|
|
Induction radius |
≧3meter |
|
|
Detection angle |
360° (ceiling installation); 160° (wall installation). |
|
|
Sensitive distance |
10%; 50%; 75%; 100% (Stall portfolio adjustment, Max 8m) |
|
|
Photo sensing setting |
≦5Lux/≦10Lux/≦30Lux/≦50Lux/≦2000Lux (Stall portfolio adjustment) |
|
|
Time delayed setting |
10 Secs / 1 mins / 5 mins / 10 mins / 30 mins (Stall portfolio adjustment) |
|
|
Sensing speed |
0.5 – 3m/s |
|
|
Typical mounting height |
3 meters (up to 6 meters) |
|
|
Operating temperature |
-20℃ ~ 45℃ |
|
|
Packing |
100 pcs / Carton. |
|
