智慧電源+微波（雷達）感測器開關系列 Smart Power + Microwave (Radar) Sensor Switch Series |
|
|
|
Model No. |
23Y145 |
|
|
Working Voltage |
AC180 – 265V 50/60Hz |
|
|
Output Voltage |
DC70-170V |
|
|
Current |
210mA±10mA (Customizable) |
|
|
Controllable Loading |
24 - 36W |
|
|
Dimming Ratio |
30% (can be Customizable) |
|
|
Dimming mode selection |
All days Slightly illuminated by startup light |
|
|
Power consumption |
≦1W (Standby) |
|
|
Frequency range |
5.8GH±75MHz, ISM wave band |
|
|
Transmitting power |
<0.5mW |
|
|
Induction radius |
≧3 meter |
|
|
Detection angle |
360° (ceiling installation); 160° (wall installation). |
|
|
Sensitive distance |
75%; 100% (Stall portfolio adjustment, Max 8m) |
|
|
Photo sensing setting |
≦10 Lux / All day (gear selection) |
|
|
Time delayed setting |
30 secs / 1 mins (gear selection) |
|
|
Sensing speed |
0.5 – 3m/s |
|
|
Typical mounting height |
3 meters (up to 6 meters) |
|
|
IP Rating |
IP20 |
|
|
Operating temperature |
-20℃ ~ 45℃ |
|
|

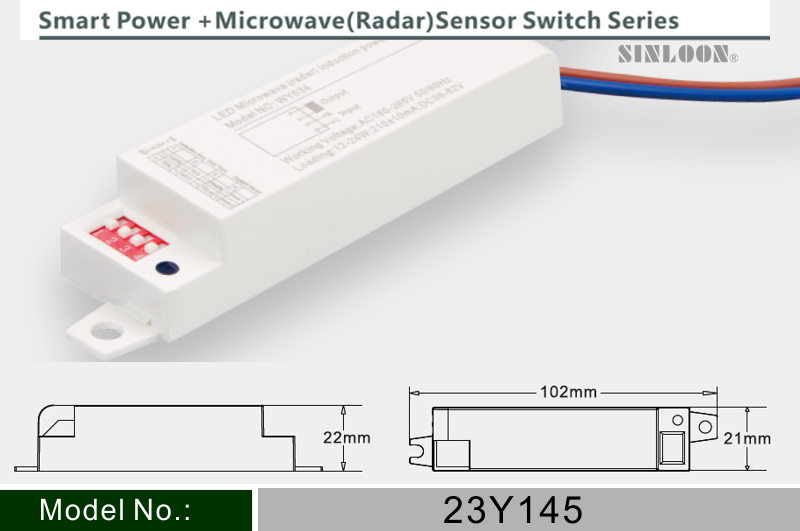

Size (mm) |
L102*W21*H22 |
|
|
Packing |
Quantity: 10 Box, 100 pcs / Carton |
|
