美隆電子有限公司

微波雷達感測器開關系列

Microwave (Radar) Sensor Switch Series

Data Specification.

Model No.

21CZ10915XAK

21CZ10915MAK

Working Voltage

AC220V  50/60Hz

AC85 – 265V 50/60Hz

Controllable Loading

≦ 100W ≦ 3 lamps

≦ 100W ≦ 5 lamps

Standby power consumption

≦ 1W

Frequency range

5.8GH±75MHz, ISM wave band

Transmitting power

<0.5mW

Induction radius

≧3 meter

Detection angle

360° (ceiling installation); 160° (wall installation).

Start Lux setting

≦ 2 Lux ~ ≦ 2000Lux (Gear selection)

Sensitive distance

10% ~ 100% (Gear selection, 8M Max.)

Time delayed

6 secs ~ 15 Mins (Gear selection)

Sensing speed

0.5 – 3m/s

Typical mounting height

3 meters (up to 6 meters)

IP Rating

IP20

Operating temperature

-20℃ ~ 45℃

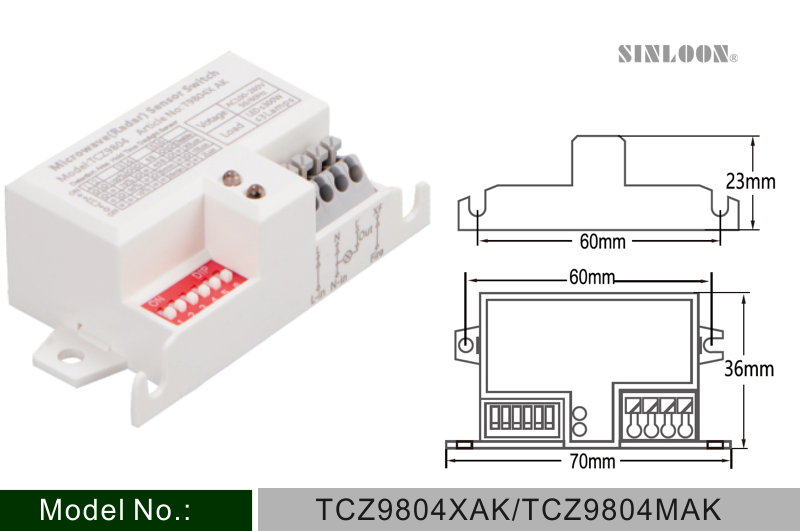

Size (mm)

L70*W36*H23

Packing

Quantity: 10 Box, 100 pcs / Carton
