微波雷達感測器開關系列 Microwave (Radar) Sensor Switch Series |
|
||
|
Model No. |
21CZ10916XAK |
21CZ10916MAK |
|
|
Working Voltage |
AC220V 50/60Hz |
AC85 – 265V 50/60Hz |
|
|
Controllable Loading |
≦ 100W ≦ 3 lamps |
≦ 100W ≦ 5 lamps |
|
|
Standby power consumption |
≦ 1W |
||
|
Frequency range |
5.8GH±75MHz, ISM wave band |
||
|
Transmitting power |
<0.5mW |
||
|
Induction radius |
≧3 meter |
||
|
Detection angle |
360° (ceiling installation); 160° (wall installation). |
||
|
Start Lux setting |
≦ 2 Lux ~ ≦ 2000Lux (Gear selection) |
||
|
Sensitive distance |
10% ~ 100% (Gear selection, 8M Max.) |
||
|
Time delayed |
6 secs ~ 15 Mins (Gear selection) |
||
|
Sensing speed |
0.5 – 3m/s |
||
|
Typical mounting height |
3 meters (up to 6 meters) |
||
|
IP Rating |
IP20 |
||
|
Operating temperature |
-20℃ ~ 45℃ |
||
|

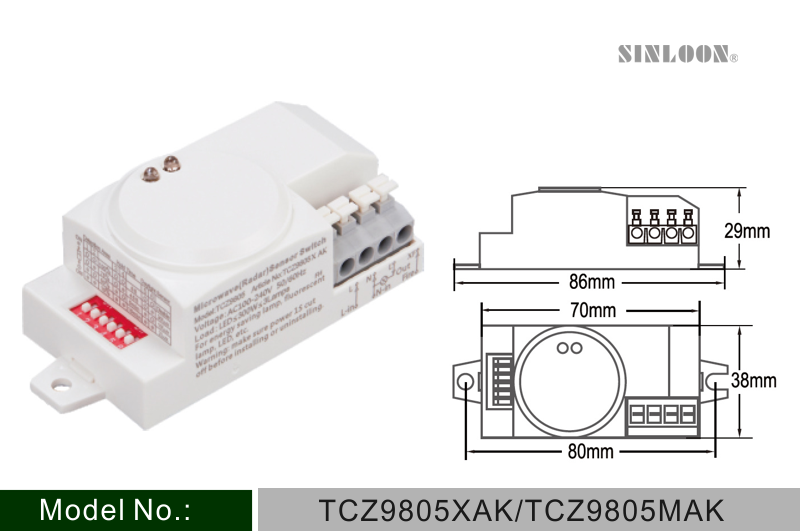

Size (mm) |
L86*W38*H29 |
||
|
Packing |
Quantity: 10 Box, 100 pcs / Carton |
||
