美隆電子有限公司

微波雷達感測器開關系列

Microwave (Radar) Sensor Switch Series

Data Specification.

Model No.

21CZ4911

Working Voltage

AC85 - 265V   50/60Hz

Controllable Loading

≦ 300W ≦ 3 lamps

Standby power consumption

≦ 1W

Frequency range

5.8GH±75MHz, ISM wave band

Transmitting power

<0.5mW

Induction radius

≧3 meter

Detection angle

360° (ceiling installation); 180° (wall installation).

Inductive distance

1-8m (Adjustable)

Start Lux setting

2000 Lux - 2 Lux. (Adjustable)

Sensing Speed

0.5-3M/s

Time delayed

3 secs - 4 mins (Adjustable)

Sensing speed

0.5 – 3m/s

Typical mounting height

3 meters (up to 6 meters)

IP Rating

IP20

Operating temperature

-20℃ ~ 45℃

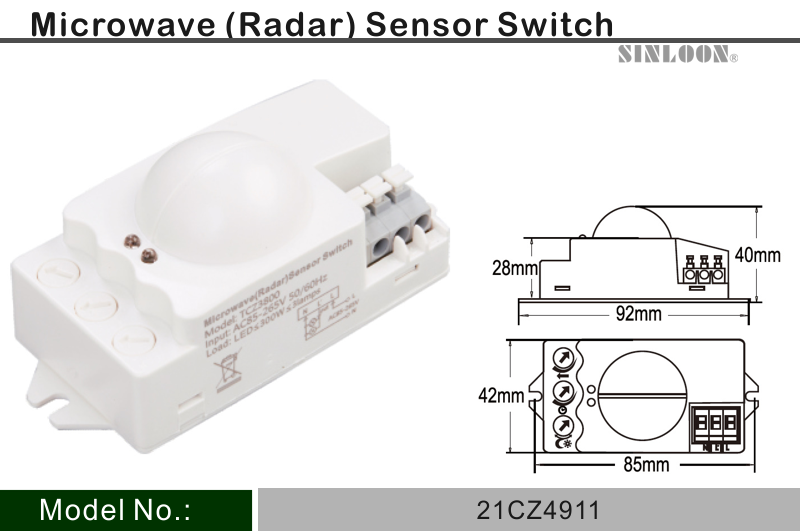

Size (mm)

L92*W42*H40

Packing

Quantity: 10pcs / Box,   100 pcs / Carton
