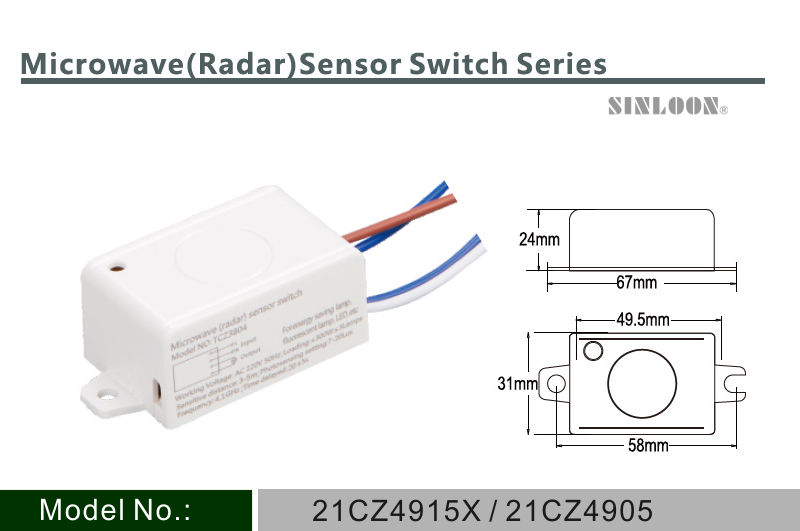

微波雷達感測器開關系列 Microwave (Radar) Sensor Switch Series |
|
||
|
Model No. |
21CZ4915X |
21CZ4915 |
|
|
Working Voltage |
AC220V 50Hz |
AC220V 50Hz |
|
|
Controllable Loading |
≦ 300W ≦ 3 lamps |
≦ 100W ≦ 5 lamps |
|
|
Standby power consumption |
≦ 1W |
||
|
Frequency range |
4.1GH±75MHz, ISM wave band |
||
|
Transmitting power |
<0.5mW |
||
|
Induction radius |
≧3 meter |
||
|
Detection angle |
360° (ceiling installation); 160° (wall installation). |
||
|
Inductive distance |
3 – 5m |
||
|
Start Lux Setting |
7 – 20 Lux |
||
|
Time delayed |
20 ±5secs |
||
|
Sensing speed |
0.5 – 3m/s |
||
|
Typical mounting height |
3 meters (up to 6 meters) |
||
|
IP Rating |
IP20 |
||
|
Operating temperature |
-20℃ ~ 45℃ |
||
|
Size (mm) |
L67*W31*H24 |
||
|
Packing |
Quantity: 10pcs / Box, 50 Box / Carton |
||
