微波雷達感測器開關系列 Microwave (Radar) Sensor Switch Series |
|
|
|
Model No. |
21CZ4918MA |
|
|
Working Voltage |
AC220V 50Hz |
|
|
Controllable Loading |
≦ 100W ≦ 5 lamps |
|
|
Standby power consumption |
≦ 1W |
|
|
Frequency range |
5.8GH±75MHz, ISM wave band |
|
|
Transmitting power |
<0.5mW |
|
|
Induction radius |
≧3 meter |
|
|
Detection angle |
360° (ceiling installation); 160° (wall installation). |
|
|
Inductive distance |
6 - 8m |
|
|
Start Lux setting |
7- 20 Lux. |
|
|
Time delayed |
30±5sese |
|
|
Sensing speed |
0.5 – 3m/s |
|
|
Typical mounting height |
3 meters (up to 6 meters) |
|
|
IP Rating |
IP20 |
|
|
Operating temperature |
-20℃ ~ 45℃ |
|
|

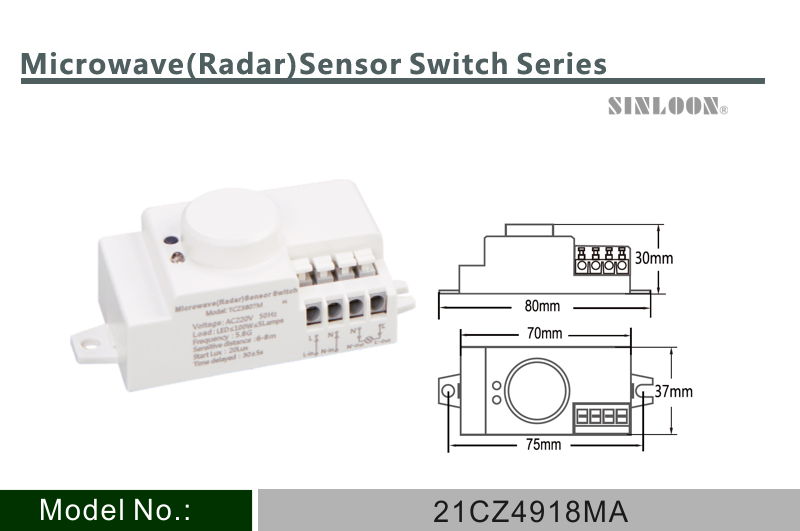

Size (mm) |
L80*W37*H30 |
|
|
Packing |
Quantity: 50pcs / Box, 500 pcs / Carton |
|
