微波雷達感測器開關系列 Microwave (Radar) Sensor Switch Series |
|
|
|
Model No. |
21CZ101011 |
|
|
Working Voltage |
AC85-265V 50/60Hz |
|
|
Controllable Loading |
≦ 300W ≦ 3 lamps |
|
|
Standby power consumption |
≦ 1W (Standby) |
|
|
Frequency range |
5.8GH±75MHz, ISM wave band |
|
|
Transmitting power |
<0.5mW |
|
|
Induction radius |
≧3 meter |
|
|
Detection angle |
360° (ceiling installation); 180° (wall installation). |
|
|
Start Lux setting |
≦2 Lux / ≦25 Lux /≦ 2000 Lux. (Gear selection) |
|
|
Sensitive distance |
1 – 8m (Adjustable) |
|
|
Time delayed |
3 sese / 45 sese / 4 mins (Gear selection) |
|
|
Sensing speed |
0.5 – 3m/s |
|
|
Typical mounting height |
3 meters (up to 6 meters) |
|
|
IP Rating |
IP20 |
|
|
Operating temperature |
-20℃ ~ 45℃ |
|
|

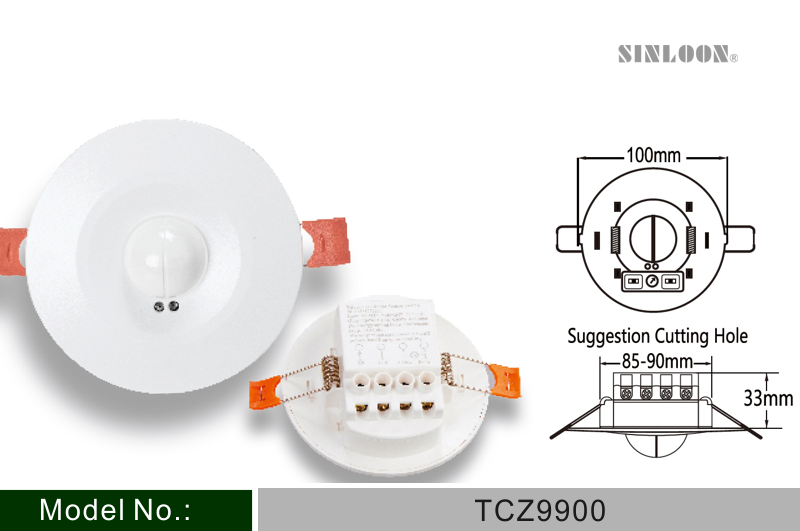

Size (mm) |
Ø 100 (suggest to install Ø 85-90) |
|
|
Packing |
Quantity: 50 pcs / Carton |
|
