塗裝絕緣保險絲電阻
Coat-Insulated Fusing Resistor - RF Series

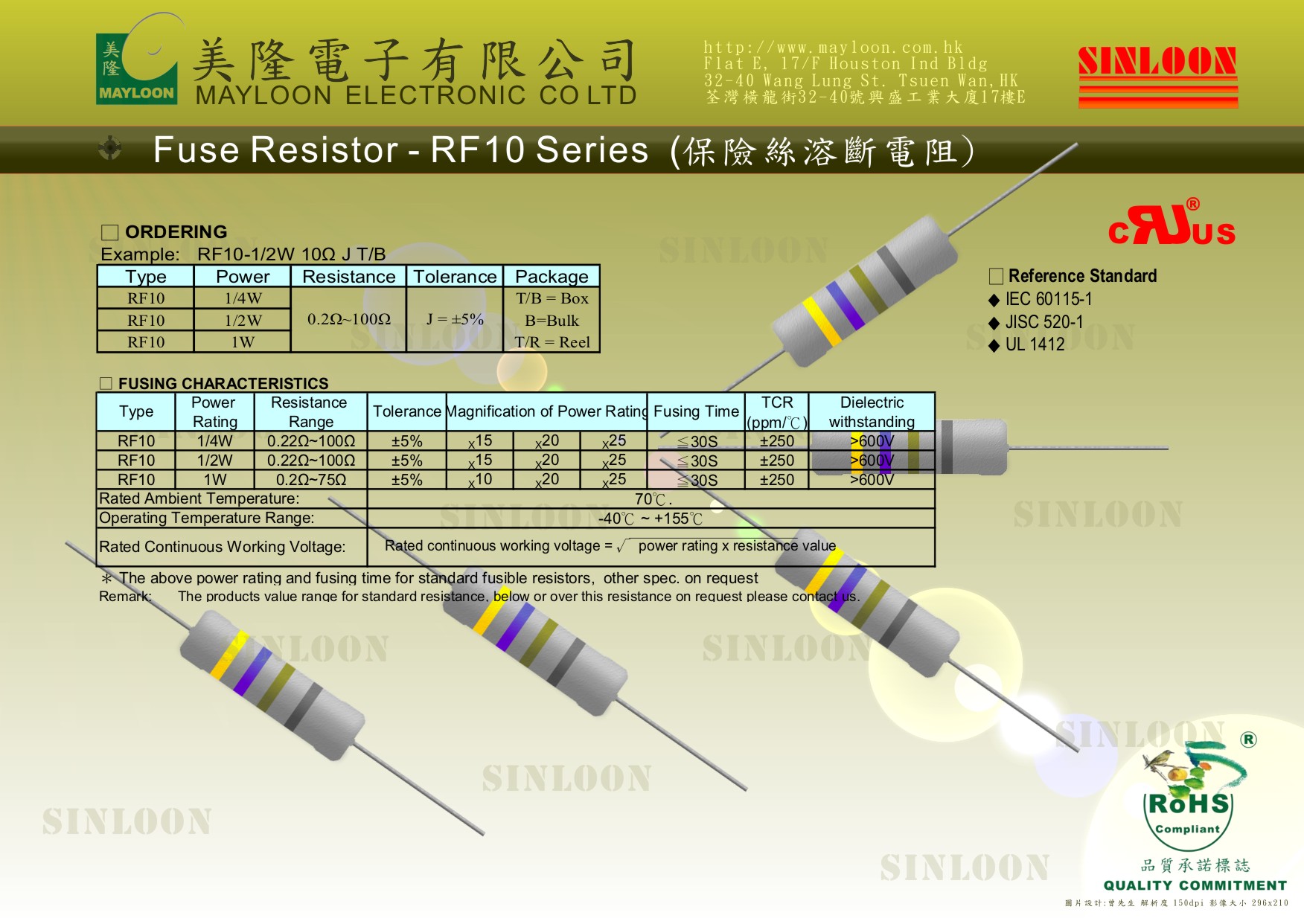

 Fusing Resistor – RF10 Series |
|||||||||
| FUSING CHARACTERISTICS | |||||||||
| Type | Power | Resistance | Tolerance | Fusing of Power Rating | Fusing Time | TCR | Dielectric | ||
| Rating | Range | (ppm/℃) | withstanding | ||||||
| RF10 | 1/4W | 0.22Ω~100Ω | ±5% | X15 | X20 | X25 | ≦30S | ±250 | >600V |
| RF10 | 1/2W | 0.22Ω~100Ω | ±5% | X15 | X20 | X25 | ≦30S | ±250 | >600V |
| RF10 | 1W | 0.2Ω~75Ω | ±5% | X10 | X20 | X25 | ≦30S | ±250 | >600V |
| There are some similarities between resistor and fuses in material and structure, Fusing Resistor contain both function, as being resistor | |||||||||
| in normal condition and changed into fuse while abnormal current comes in to product machine and equipment. Since two functions | |||||||||
| performed by resistor, the cost therefore saved. | |||||||||
| Our RF10 Fusing Resistor series are produced with precision technique, enabling precise fusing time and stabilized aiming to reach best | |||||||||
| quality resistors. | |||||||||
| Features: | |||||||||
| It is suitable for protecting circuit and design. | |||||||||
| Small in size with competitive price. | |||||||||
| Noncombustible insulating coat “Solvent” proof and resistant to high temperature. | |||||||||
| Low temperature coefficient. (<±250ppm/℃) | |||||||||
| Uniform in fusing time. (10s~30s) | |||||||||
| Coated by UL recognized 94V-0 Flame-retardant coating. | |||||||||
| 應用說明: | |||||||||
| 保險絲電阻與電阻器在材質及構造上本身就有類似之處,而保險絲電阻器具有兩者之特性功能,在正常使用情況下可當作一般電阻, | |||||||||
| 一旦電流有異常時就可發揮其保險絲的作用來保護電器等產品設備。 | |||||||||
| 高端產品及其它需要UL安全認證之家電產品,採購使用保險絲零部件時,也必需具備有UL認證的保絲電阻廠家才能取得相關的認證。 | |||||||||
| 本司所經銷之RF 保險絲電阻也已具備了這一認證條件。查詢更多資料請向本司業務部接洽。 | |||||||||
 |
|||||||||
