PIR- 紅外線感測器開關系列 Infrared sensor switch series |
|
||
|
Model No. |
21-461 |
21-461B |
|
|
Working Voltage |
AC220V 50Hz |
AC220V 50Hz |
|
|
Controllable Loading |
≦ 300W ≦ 3 lamps |
≦ 100W ≦ 5 lamps |
|
|
Standby power consumption |
≦ 1W (Standby) |
||
|
Start Lux Setting |
< 2Lux /< 25Lux/< 2000Lux (Gear selection) |
||
|
Induction range |
The radius of the induction top is 1-2 meter |
||
|
Time delayer |
10s/40s/4mins (Gear selection) |
||
|
Detection angle |
110° (ceiling installation) |
||
|
Mounting height |
3.5m Max. |
||
|
IP Rating |
IP20 |
||
|
Size (mm) |

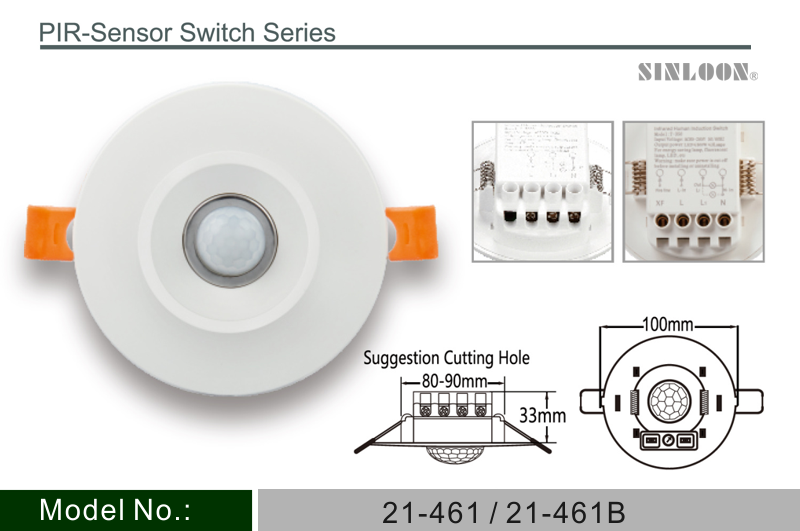

Ø 100 Ceiling installation (suggest install Ø80-90mm) |
||
|
Packing |
Quantity: 50 pcs / Carton |
||
