PIR- 紅外線感測器開關系列 Infrared sensor switch series |
|
|||
|
Model No. |
21-462 |
21-462B |
21-363 |
21-363X |
|
Working Voltage |
AC220V 50Hz |
AC220V 50Hz |
||
|
Controllable Loading |
≦ 300W ≦ 3 lamps |
≦ 100W ≦ 5 lamps |
≦ 9-100W ≦ 3 lamps |
≦ 9-100W ≦ 5 lamps |
|
Standby power consumption |
≦ 1W (Standby) |
|||
|
Start Lux Setting |
< 10Lux |
|||
|
Induction range |
The radius of the induction top is 1-2 meter |
|||
|
Time delayer |
40s±10s |
|||
|
Detection angle |
110° (ceiling installation) |
|||
|
Mounting height |
3.5m Max. |
|||
|
Operating temperature |
‘20℃ ~ 45℃ |
|||
|
IP Rating |
IP20 |
|||
|

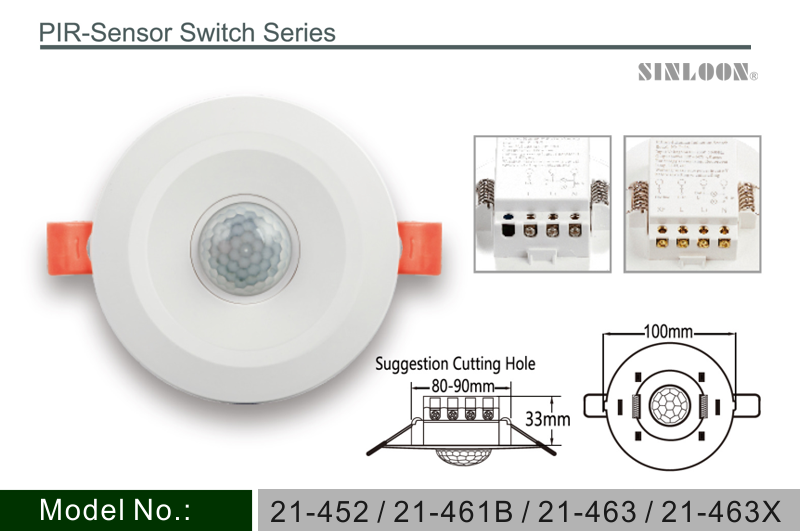

Size (mm) |
Ø 100 Ceiling installation (suggest install Ø80-90mm) |
|||
|
Packing |
Quantity: 100 pcs / Carton |
|||
