聲光可控制延時開關系列

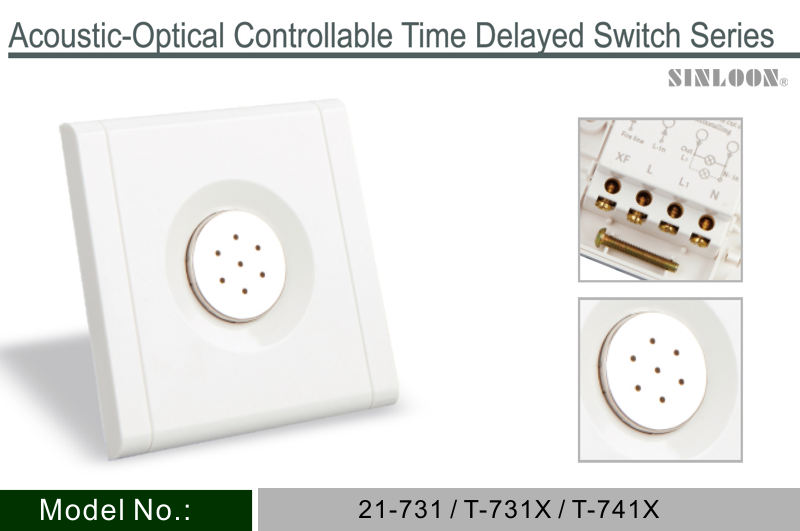

Acoustic Optical Controllable Time Delayed Switch Series

Data Specification.

Model No.

21-731

21-731X

21-741X

Working Voltage

AC220V  50Hz

AC220V  50Hz

AC220V  50Hz

Controllable Loading

9-100W ≦ 3 lamps

9-100W ≦ 5 lamps

300W ≦ 3 lamps

Standby power consumption

≦ 1W (Standby)

Star decibel

75db (5meter range)

75db (5meter range)

Start Lux Setting

< 10Lux

< 10Lux

Time delayer

40±10s

40±10secs

Operating height

-20 ℃ ~ 45 ℃

-20 ℃ ~ 45 ℃

IP Rating

IP20

IP20

Size (mm)

Wall & Ceiling installation

(Suitable for 86*86*34 basement box)

(Suitable for 77*77*38 basement box)

Packing

50pcs/carton

• 「本公司保留隨時修改或變更內容之權利，恕不另行通知。」
• 「The company reserves the right to modify or change the content at any time without prior notice. 」
