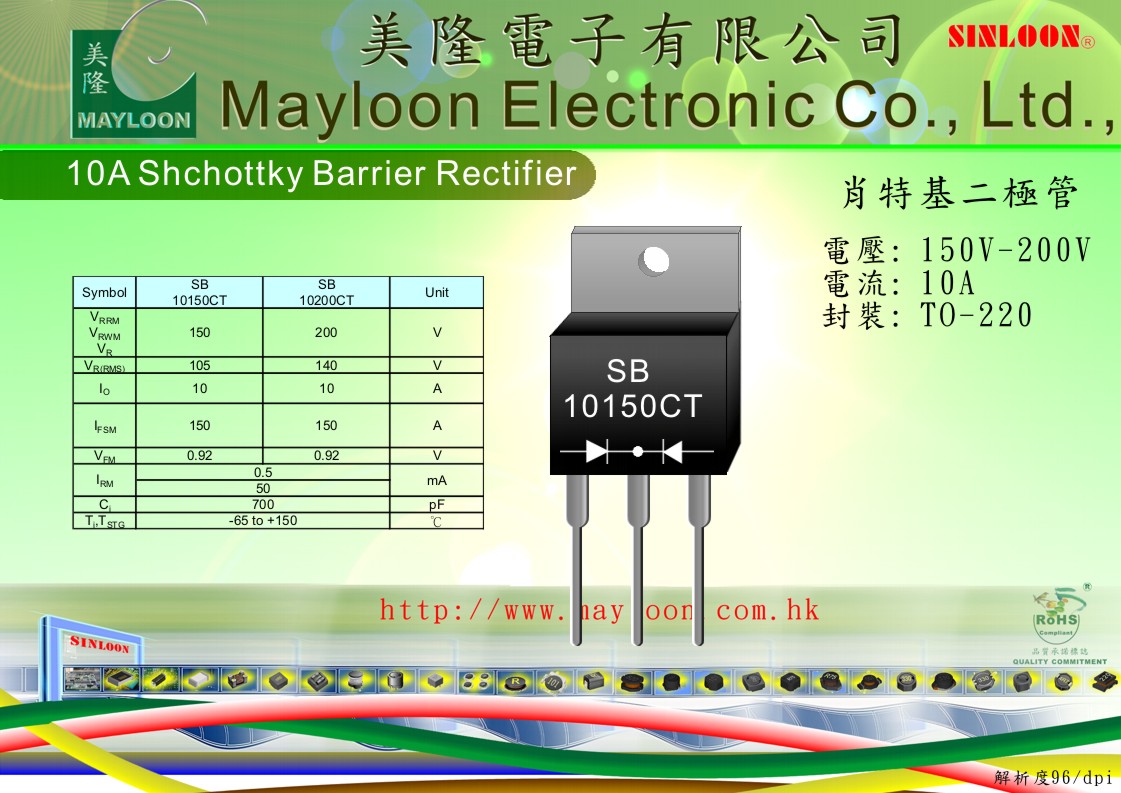

10A High Voltage Schottky Barrier Rectifier Diode
10A SB10150CT-SB10200CT (150V-200V)
Rating
Case: TO-220
Voltage: 150V ~ 200V
Current: 10A
Feature
Schottky Barrier Chip
Guard Ring for Transient Protection
Low Forward Voltage Drop
Low Reverse leakage Current
High Surge Current Capability
Plastic Material has UL Flammability Classification 94V-0
Mechanical Data
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 2.24 grams (approx)
Mounting Position: Any
Mounting Torque: 11.5 cm-kg (10 in-lbs) max.
Lead Free: For RoHS / Lead Free Version Add “-LF” Suffix to part Number.
