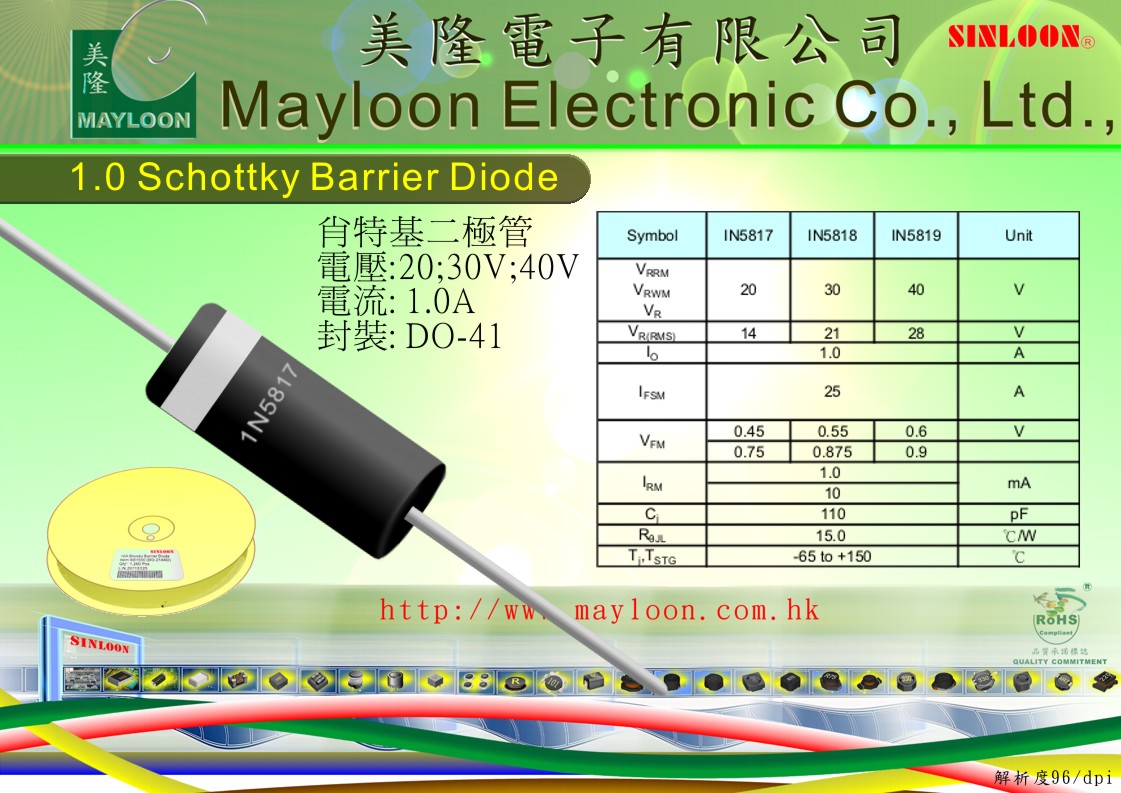

1A Schottky Barrier Rectifier Diode
1A IN5817 - IN5819 (20V - 40V)
| Feature | ||||||
| Schottky Barrier Chip | ||||||
| Guard Ring Die Construction for Transient Protection | ||||||
| High Current Capability | ||||||
| Low Power Loss, High Efficiency | ||||||
| High Surge Current Capability | ||||||
| For Use un Low Voltage, High Frequency Inverters, Free Wheeling | ||||||
| and Polarity Protection Applications. | ||||||
| Mechanical Data | ||||||
| Case: DO-41 Moldes Plastic | ||||||
| Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 | ||||||
| Polarity: Cathode Band. | ||||||
| Weight: 0.34 grams (approx) | ||||||
| Mounting Position: Any | ||||||
| Mounting : Type Number | ||||||
| Lead Free: For RoHS / Lead Free Version Add “-LF” Suffix to part Number. | ||||||
| Dimension | ||||||
| Case: DO-41 | (mm) | |||||
| Dim | Min | Max | * | |||
| A | 25.4 | --- | ||||
| B | 4.06 | 5.21 | ||||
| C | 0.71 | 0.864 | ||||
| D | 2.0 | 2.72 | ||||
| Marking Information | ||||||
| Cathode | = Device Number | |||||
| IN581x | = Device Number |  |
||||
| x | = 7, 8, 9. | |||||
| Polarity | = As Marked Body | |||||
