2A Schottky Barrier Rectifier Diode

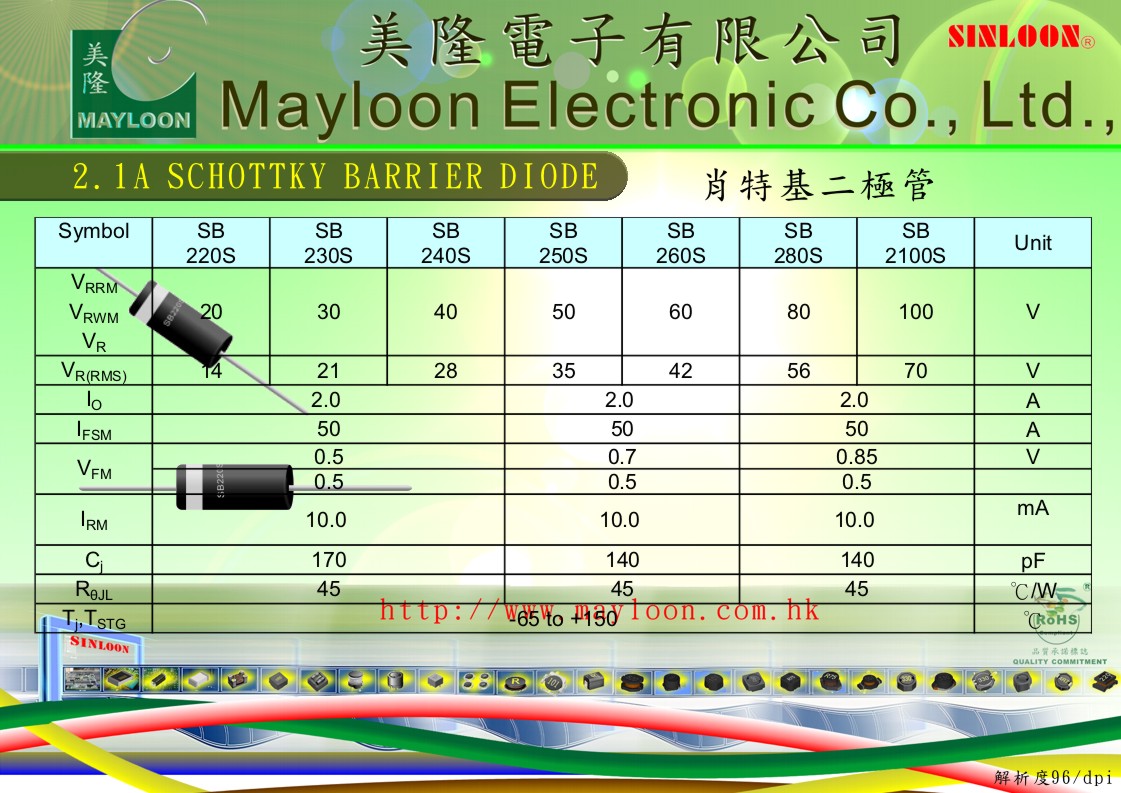

2A SB220S - SB2100S (20V - 100V)
Rating
Case: DO-41
Voltage: 20V ~ 100V
Current: 2.0A
Type Series Device IF(AV) Vrrm Range
DO-41 IN5817~IN5819 1A 20V,30V,40V.
DO-41 SB220S~SB2100S 2A 20V ~ 100V
SMA/DO-214AC SR22 – SR210 2A 20V ~ 100V
DO-201AD SB520 – SB5100S 5A 20V ~ 100V
TO-220A SB820-SB8100 8A 20V ~ 100V
TO-220 SB820CT~SB8100CT 8A 20V ~ 100V
TO-263 SB820D~SB8100D 8A 20V ~ 100V
TO-263 SB820DC~SB8100DC 8A 20V ~ 100V
ITO-220A SB820F~SB8100F 8A 20V ~ 100V
ITO-220 SB820FCT~SB8100FCT 8A 20V ~ 100V
TO-220A SB8150-SB8200 8A 150V ~ 200V
TO-220 SB8150CT~SB8200CT 8A 150V ~ 200V
TO-263 SB8150D~SB8200D 8A 150V ~ 200V
TO-263 SB815DC~DC8200DC 8A 150V ~ 200V
ITO-220A SB8150F~SB8200F 8A 150V ~ 200V
ITO-220 SB8150FCT-SB8200FCT 8A 150V ~ 200V
2A SB220S - SB2100S (20V - 100V)
□ Feature
◆ Schottky Barrier Chip
◆ Guard Ring Die Construction for Transient Protection
◆ High Current Capability
◆ Low Power Loss, High Efficiency
◆ High Surge Current Capability
◆ For Use un Low Voltage, High Frequency Inverters, Free Wheeling
and Polarity Protection Applications.
□ Mechanical Data
◆ Case: DO-41 Moldes Plastic
◆ Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
◆ Polarity: Cathode Band.
◆ Weight: 0.34 grams (approx)
◆ Mounting Position: Any
◆ Mounting : Type Number
◆ Lead Free: For RoHS / Lead Free Version Add “-LF” Suffix to part Number.
