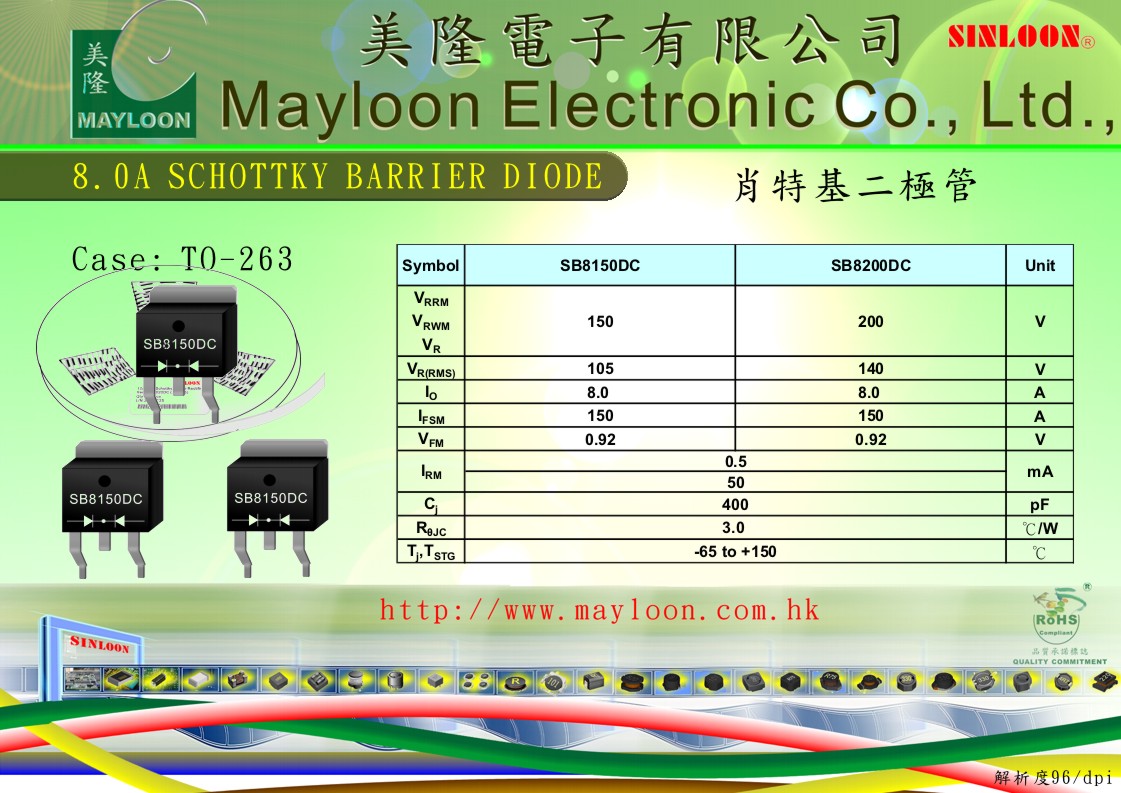

8A Schottky Barrier Rectifier Diode
8A SB8150DC-SB8200DC (150V or 200V)
Rating
Case: TO-263
Voltage: 150V or 200V
Current: 8.0A
Type Series Device IF(AV) Vrrm Range
TO-220A SB820-SB8100 8A 20V ~ 100V
TO-220 SB820CT~SB8100CT 8A 20V ~ 100V
TO-263 SB820D~SB8100D 8A 20V ~ 100V
TO-263 SB820DC~SB8100DC 8A 20V ~ 100V
ITO-220A SB820F~SB8100F 8A 20V ~ 100V
ITO-220 SB820FCT~SB8100FCT 8A 20V ~ 100V
TO-220A SB8150-SB8200 8A 150V ~ 200V
TO-220 SB8150CT~SB8200CT 8A 150V ~ 200V

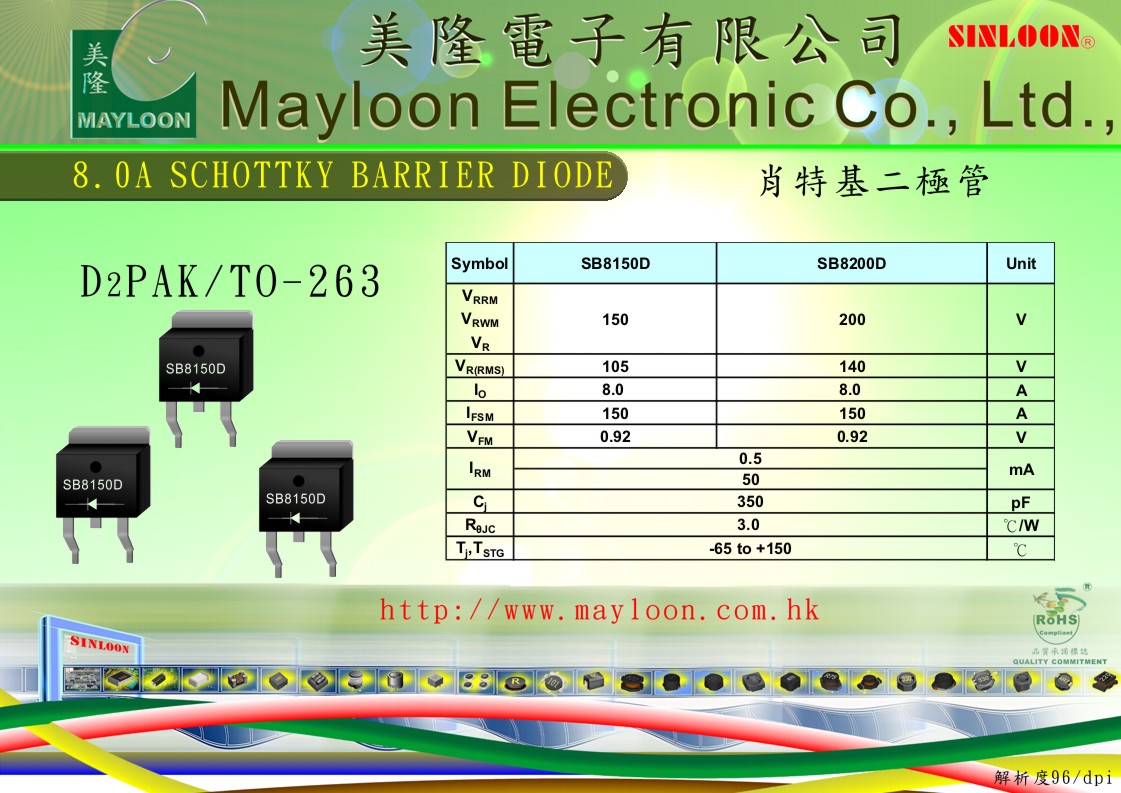

TO-263 SB8150D~SB8200D 8A 150V ~ 200V
TO-263 SB815DC~DC8200DC 8A 150V ~ 200V
ITO-220A SB8150F~SB8200F 8A 150V ~ 200V
ITO-220 SB8150FCT-SB8200FCT 8A 150V ~ 200V
Feature
Schottky Barrier Chip
Guard Ring for Transient Protection
Low Forward Voltage Drop
Low Reverse leakage Current
High Surge Current Capability
Plastic Material has UL Flammability Classification 94V-0
Mechanical Data
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 2.24 grams (approx)
Mounting Position: Any
Mounting posution : Any
Lead Free: For RoHS / Lead Free Version Add “-LF” Suffix to part Number.
