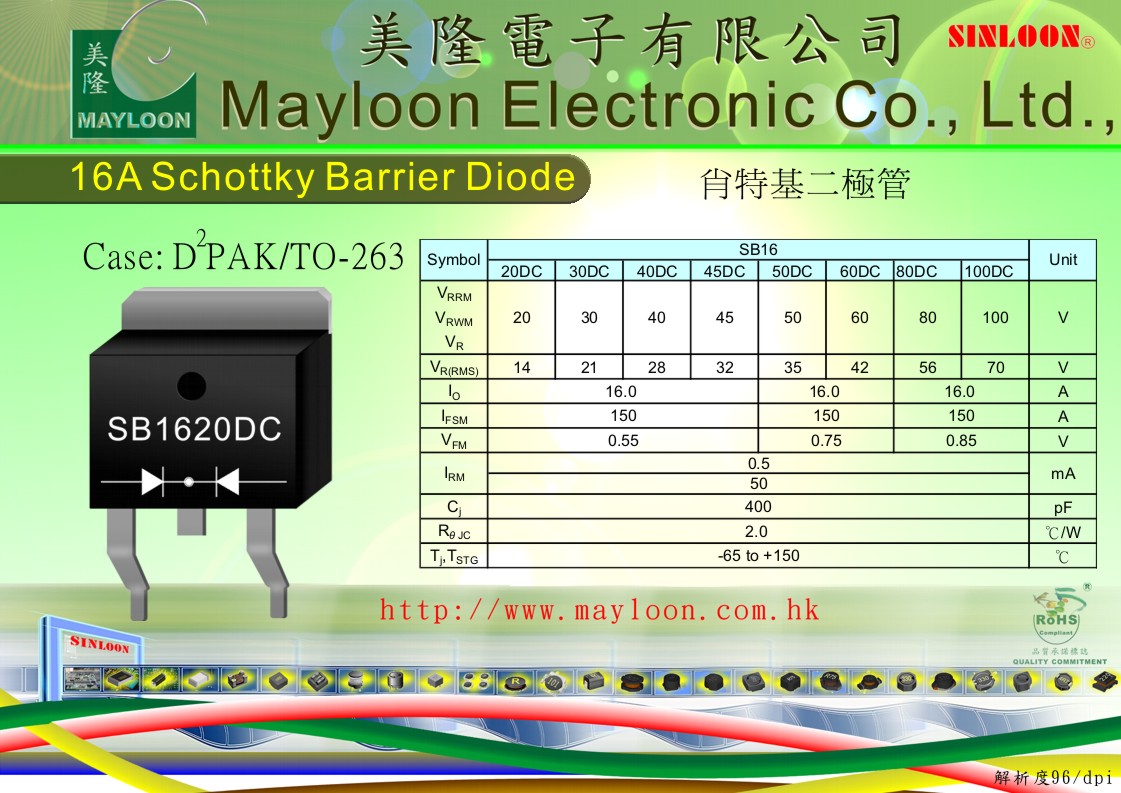

16A Schottky Barrier Rectifier Diode
16A SB1620DC-SB16100DC (20V-100V)
Rating
Case: TO-263
Voltage: 20V ~ 100V
Current: 16A
Type Series Device IF(AV) Vrrm Range
TO-3P S16D30C-S16D60C 16A 30V ~ 60V
TO-220 SB1620CT – SB16100CT 16A 20V ~ 100V
ITO-220 SB1620FCT-SB16100FCT 16A 20V ~100V
TO-263 SB1620DC-SB16100DC 16A 20V ~ 100V
TO-220 SB16150CT – SB16200CT 16A 150V ~ 200V
TO-263 SB16150DC – SB16200DC 16A 150V ~ 200V
ITO-220 SB16150FCT – SB16200FCT 16A 150V ~ 200V
□ Feature
◆ Schottky Barrier Chip
◆ Guard Ring for Transient Protection
◆ Low Forward Voltage Drop
◆ Low Reverse leakage Current
◆ High Surge Current Capability
◆ Plastic Material has UL Flammability Classification 94V-0
□ Mechanical Data
◆ Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
◆ Polarity: See Diagram
◆ Weight: 2.24 grams (approx)
◆ Mounting Position: Any
◆ Mounting Torque: 11.5 cm-kg (10 in-lbs) max.
◆ Lead Free: For RoHS / Lead Free Version Add “-LF” Suffix to part Number.
