20A HV Schottky Barrier Rectifier Diode

20A S20D30C-S20D60C (30V-60V)

Rating

Case:  TO-3P

Voltage: 30V ~ 60V

Current: 20A

Type Series Device IF(AV) Vrrm Range

TO-3P S16D30C-S16D60C 16A 30V ~ 60V

TO-220 SB1620CT – SB16100CT 16A 20V ~ 100V

ITO-220 SB1620FCT-SB16100FCT 16A 20V ~100V

TO-263 SB1620DC-SB16100DC 16A 20V ~ 60V

TO-220 SB16150CT – SB16200CT 16A 150V ~ 200V

TO-263 SB16150DC – SB16200DC 16A 150V ~ 200V

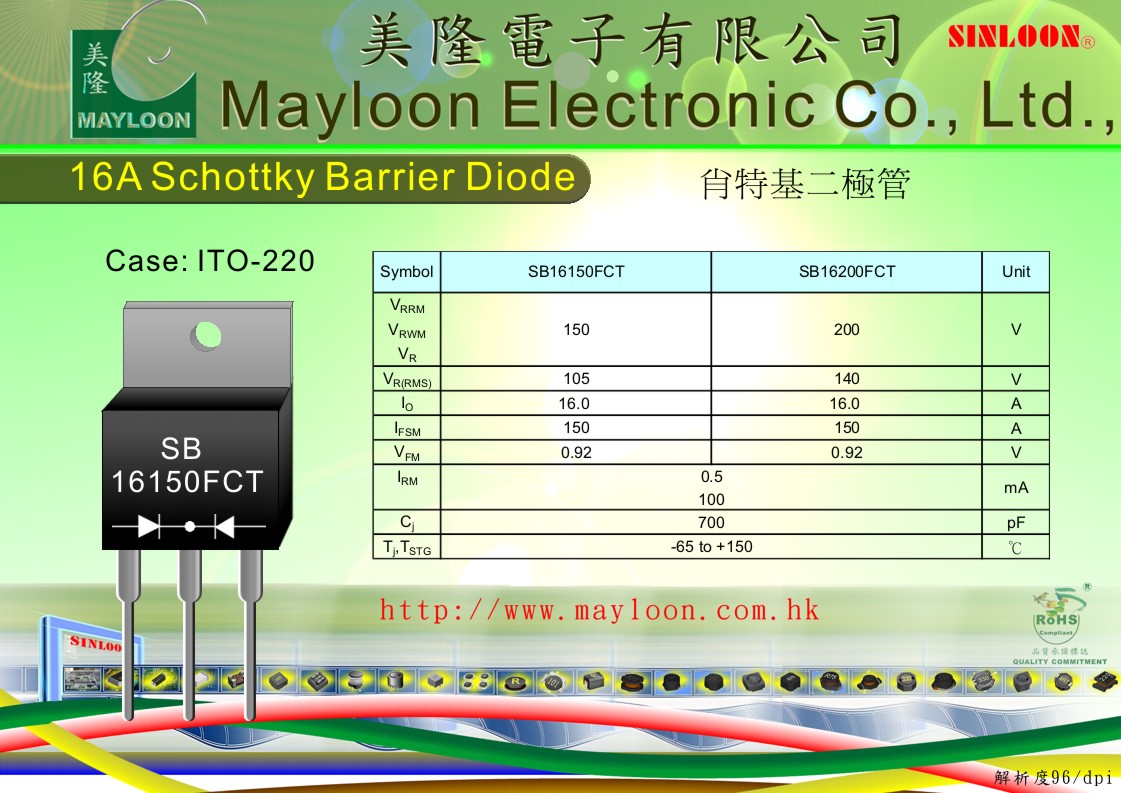

ITO-220 SB16150FCT – SB16200FCT 16A 150V ~ 200V

TO-3P S20D30C-S20D100C 20A 30V ~ 60V

TO-220 SB2020CT-SB20100CT 20A 20V ~ 100V

ITO-220 SB2020FCT-SB20100FCT 20A 20V ~ 100V

TO-220 SB20150CT-SB20200CT 20A 150V ~ 200V

ITO-220 SB20150FCT-SB20200FCT 20A 150V ~ 200V

TO-220 SB2520CT-SB2520CT 25A 20V ~ 100V

ITO-220 SB2520FCT-SB20100FCT 25A 20V ~ 100V

TO-3P S30D30C-S30D100C 20A 30V ~ 100V

□ Feature

◆ Schottky Barrier Chip

◆ Guard Ring for Transient Protection

◆ Low Forward Voltage Drop

◆ Low Reverse leakage Current

◆ High Surge Current Capability

◆ Plastic Material has UL Flammability Classification 94V-0

□ Mechanical Data

◆ Terminals: Plated Leads Solderable per MIL-STD-202, Method 208

◆ Polarity: See Diagram

◆ Weight: 2.24 grams (approx)

◆ Mounting Position: Any

◆ Mounting Torque: 11.5 cm-kg (10 in-lbs) max.

◆ Lead Free: For RoHS / Lead Free Version Add “-LF” Suffix to part Number.
