| SINLOON® | 模壓精密金屬膜電阻 | HPMD Series | |||||||
| Precision Metal Film Resistors ( ±0.02%) | (Molding Type) | ||||||||

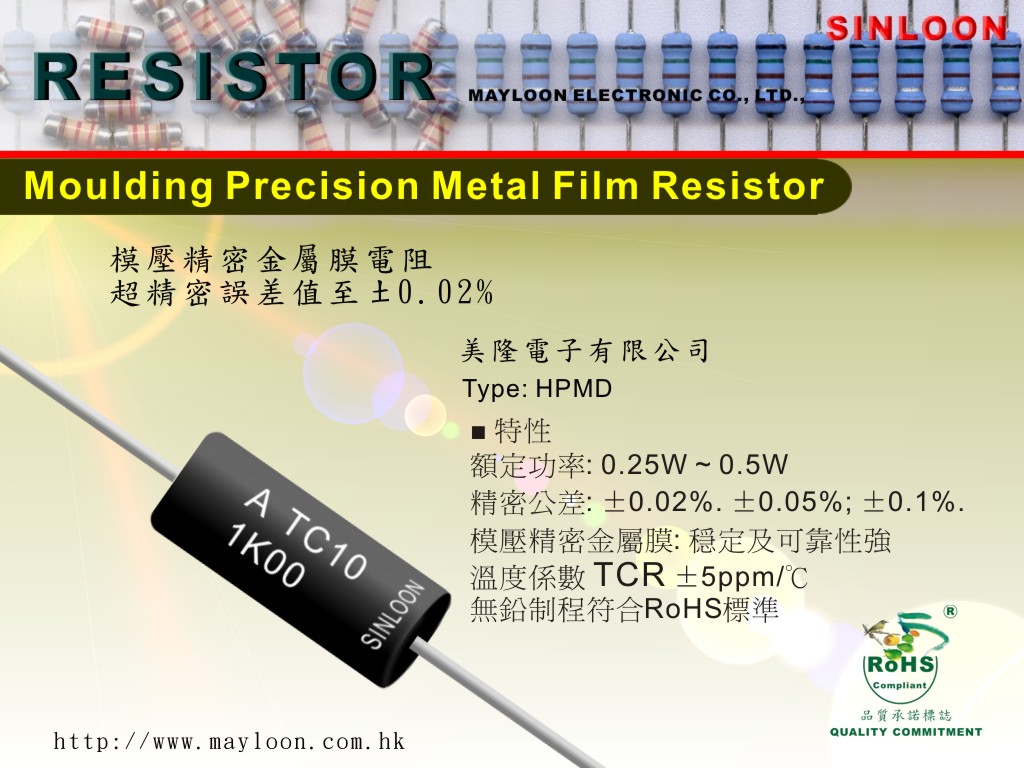

 Data Specification :  Molding Precision Metal Film Resistor - HPMD |
|||||||||
| Features | - | - |  |
||||||
| Power Rating :0.125W ~ 1W. | |||||||||
| Precision tolerance tight to A2(±0.02). | |||||||||
| Precision metal film, good stability and reliability. | - | - | - | ||||||
| Superior electrical TCR performances narrowed to ± 5 ppm/°C . | |||||||||
| Lead (Pb)-free and RoHS compliant, Covers all general type resistors. | |||||||||
| 應用: | 特性 | Applications | |||||||
| 電信通訊設備 | 額定功率: 0.25W ~ 0.5W | Medical electronics. | |||||||
| 測量和校準設備 | 精密公差: ±0.02%. ±0.05%; ±0.1%. | Measuring and calibration equipment. | |||||||
| 工業控制系統 | 模壓精密金屬膜: 穏定及可靠性強 | High gain feedback applications. | |||||||
| 音響音頻及視頻電路 | 溫度係數 TCR ±5ppm/℃ | Precision Instruments, Avionics. | |||||||
| 精密儀器,儀表,國防軍工及器材等電子設備 | 無鉛制程符合RoHS標準 | Telecom. | |||||||
| RATED STANDARD POWER | |||||||||
| Type | Power | Max. Operating Vol. | Precision Tolerance | T.C.R | P | ||||
| Working | Overload | ±0.02% | ±0.05% | ±0.1% | ℃ | ||||
| HPMD0727 | 1/4W | 250V | 500V | 10~1M Ω | 10~1M Ω | 10~1M Ω | ±5ppm | ||
| ±10ppm | |||||||||
| ±15ppm | |||||||||
| ±25ppm | |||||||||
| HPMD1040 | 1/2W | 300V | 600V | 10~1M Ω | 10~1M Ω | 10~1M Ω | ±5ppm | ||
| ±10ppm | |||||||||
| ±15ppm | |||||||||
| ±25ppm |  |
||||||||
| Operating Temperature Range: | -55 ~ +125℃ | ||||||||
