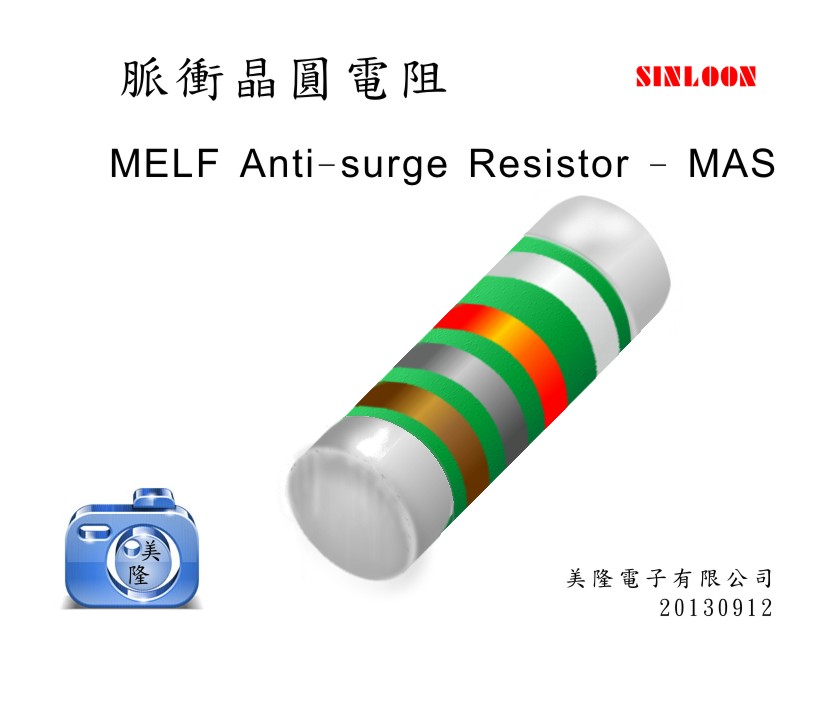

脈衝晶圓電阻 (耐衝擊)
Melf Anti-Surge Resistor - MAS
| 脈衝型 MAS | 碳膜 MCF | 金屬膜 MMF | 高壓型 MMG | 氧化膜 MMO | 高精密 MPM | 保險絲電阻FRM |
 RATED SPECIFICATION |
||||||
| Type | Size | Power | Max. Surge | Resistance | Tolerance | |
| 型號 | 尺寸 | 功率 | Voltage | Range (Ω) | (%) | |
| W-MAS02 | 0102 | 1/8W | 100V | ＊10R~ 1G | ||
| V-MAS04 | 0204 | 1/4W | 150V | ±5% | ||
| U-MAS07 | 0207 | 1/2W | 200V | ±10% | ||
| S-MAS09 | 0309 | 1W | 280V | ±20% | ||
| Q-MAS11 | 0411 | 2W | 400V | |||
| N-MAS15 | 0515 | 3W | 500V | |||
¾ The standard resistor color code table
| STANDARD RESISTANCE VALUE IN A DECADE (標準電阻器阻值) | |||||||||||||||||
| E24 | 10 | 11 | 12 | 13 | 15 | 16 | 18 | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 43 | 47 |
| 51 | 56 | 62 | 68 | 75 | 82 | 91 | |||||||||||
| E96 | 100 | 102 | 105 | 107 | 110 | 113 | 115 | 118 | 121 | 124 | 127 | 130 | 133 | 137 | 140 | 143 | 147 |
| 150 | 154 | 158 | 162 | 165 | 169 | 174 | 178 | 182 | 187 | 191 | 196 | 200 | 205 | 210 | 215 | 221 | |
| 226 | 232 | 237 | 243 | 249 | 255 | 261 | 267 | 274 | 280 | 287 | 294 | 301 | 309 | 316 | 324 | 332 | |
| 340 | 348 | 357 | 365 | 374 | 383 | 392 | 402 | 412 | 422 | 432 | 442 | 453 | 464 | 475 | 487 | 499 | |
| 511 | 523 | 536 | 549 | 562 | 576 | 590 | 604 | 619 | 634 | 649 | 665 | 681 | 698 | 715 | 732 | 750 | |
| 768 | 787 | 806 | 825 | 845 | 866 | 887 | 909 | 931 | 953 | 976 | |||||||
 |
|||||||||||||||||
