 穏壓二極管 |

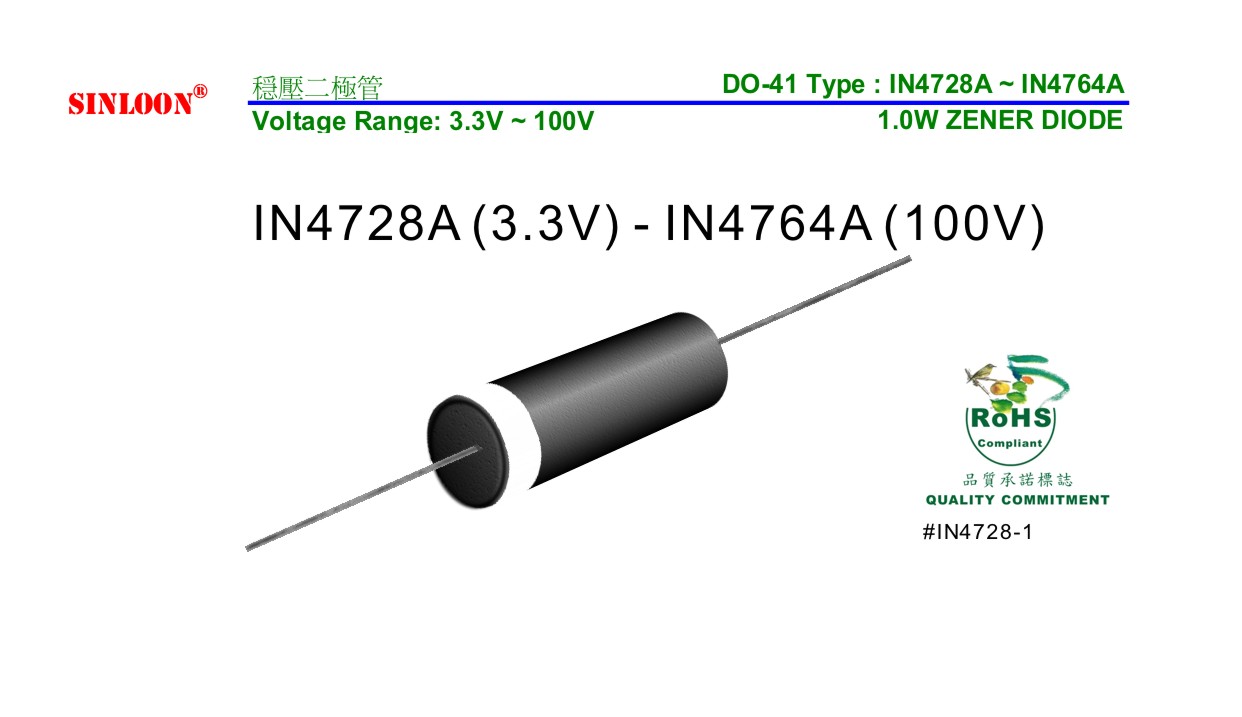

DO-41 Type : IN4728A ~ IN4764A | |||||||
| Voltage Range: 3.3V ~ 100V | 1.0W ZENER DIODE | ||||||||
  DO-41 Type : IN4728A - IN4764A |
|||||||||
| Electrical Characteristics Single Diode @TA=25℃ unless otherwise specifiled | SINLOON | ||||||||
| Type | Mominal | Test | Maximum Zener Impedance (note 3) | Leakage Current | Max.DC | Max Surge | |||
| Number | Vol.(Note 2) | Current | ZZT@IZT | ZZK@IZK | IZK | IR | @VR | Current | Current 8.3ms |
| (Note 1) | VZ@IZT (V) | IZT (mA) | (Ω) | (Ω) | (mA) | (μA) | (V) | IZM(mA) | IZS (mA) |
| IN4728A | 3.3 | 76 | 10 | 400 | 1.0 | 100 | 1.0 | 276 | 1380 |
| IN4729A | 3.6 | 69 | 10 | 400 | 1.0 | 100 | 1.0 | 252 | 1260 |
| IN4730A | 3.9 | 64 | 9.0 | 400 | 1.0 | 50 | 1.0 | 234 | 1190 |
| IN4731A | 4.3 | 58 | 9.0 | 400 | 1.0 | 10 | 1.0 | 217 | 1070 |
| IN4732A | 4.7 | 53 | 8.0 | 500 | 1.0 | 10 | 1.0 | 193 | 970 |
| IN4733A | 5.1 | 49 | 7.0 | 550 | 1.0 | 10 | 1.0 | 178 | 890 |
| IN4734A | 5.6 | 45 | 5.0 | 600 | 1.0 | 10 | 2.0 | 162 | 810 |
| IN4735A | 6.2 | 41 | 2.0 | 700 | 1.0 | 10 | 3.0 | 146 | 730 |
| IN4736A | 6.8 | 37 | 3.5 | 700 | 1.0 | 10 | 4.0 | 133 | 660 |
| IN4737A | 7.5 | 34 | 4.0 | 700 | 0.5 | 10 | 5.0 | 121 | 605 |
| IN4738A | 8.2 | 31 | 4.5 | 700 | 0.5 | 10 | 6.0 | 110 | 550 |
| IN4739A | 9.1 | 28 | 5.0 | 700 | 0.5 | 10 | 7.0 | 100 | 500 |
| IN4740A | 10 | 25 | 7.0 | 700 | 0.25 | 10 | 7.6 | 91 | 454 |
| IN4741A | 11 | 23 | 8.0 | 700 | 0.25 | 5.0 | 8.4 | 83 | 414 |
| IN4742A | 12 | 21 | 9.0 | 700 | 0.25 | 5.0 | 9.1 | 76 | 380 |
| IN4743A | 13 | 19 | 10 | 700 | 0.25 | 5.0 | 9.9 | 69 | 344 |
| IN4744A | 15 | 17 | 14 | 700 | 0.25 | 5.0 | 11.4 | 61 | 304 |
| IN4745A | 16 | 16 | 16 | 700 | 0.25 | 5.0 | 12.2 | 57 | 285 |
| IN4746A | 18 | 14 | 20 | 750 | 0.25 | 5.0 | 13.7 | 50 | 250 |
| IN4747A | 20 | 12.5 | 22 | 750 | 0.25 | 5.0 | 15.2 | 45 | 225 |
| IN4748A | 22 | 11.5 | 23 | 750 | 0.25 | 5.0 | 16.7 | 41 | 205 |
| IN4749A | 24 | 10.5 | 25 | 750 | 0.25 | 5.0 | 18.2 | 38 | 190 |
| IN4750A | 27 | 9.5 | 35 | 750 | 0.25 | 5.0 | 20.6 | 34 | 170 |
| IN4751A | 30 | 8.5 | 40 | 1000 | 0.25 | 5.0 | 22.8 | 30 | 150 |
| IN4752A | 33 | 7.5 | 45 | 1000 | 0.25 | 5.0 | 25.1 | 27 | 135 |
| IN4753A | 36 | 7.0 | 50 | 1000 | 0.25 | 5.0 | 27.4 | 25 | 125 |
| IN4754A | 39 | 6.5 | 60 | 1000 | 0.25 | 5.0 | 29.7 | 23 | 115 |
| IN4755A | 43 | 6.0 | 70 | 1500 | 0.25 | 5.0 | 32.7 | 22 | 110 |
| IN4756A | 47 | 5.5 | 80 | 1500 | 0.25 | 5.0 | 35.8 | 19 | 95 |
| IN4757A | 51 | 5.0 | 95 | 1500 | 0.25 | 5.0 | 38.8 | 18 | 90 |
| IN4758A | 56 | 4.5 | 110 | 2000 | 0.25 | 5.0 | 42.6 | 16 | 80 |
| IN4759A | 62 | 4.0 | 125 | 2000 | 0.25 | 5.0 | 47.1 | 14 | 70 |
| IN4760A | 68 | 3.7 | 150 | 2000 | 0.25 | 5.0 | 51.7 | 13 | 65 |
| IN4761A | 75 | 3.3 | 175 | 2000 | 0.25 | 5.0 | 56.0 | 12 | 60 |
| IN4762A | 82 | 3.0 | 200 | 3000 | 0.25 | 5.0 | 62.2 | 11 | 55 |
| IN4763A | 91 | 2.8 | 250 | 3000 | 0.25 | 5.0 | 69.2 | 10 | 50 |
| IN4764A | 100 | 2.5 | 350 | 3000 | 0.25 | 5.0 | 76.0 | 9.0 | 45 |
 |
|||||||||
Zener Diode
