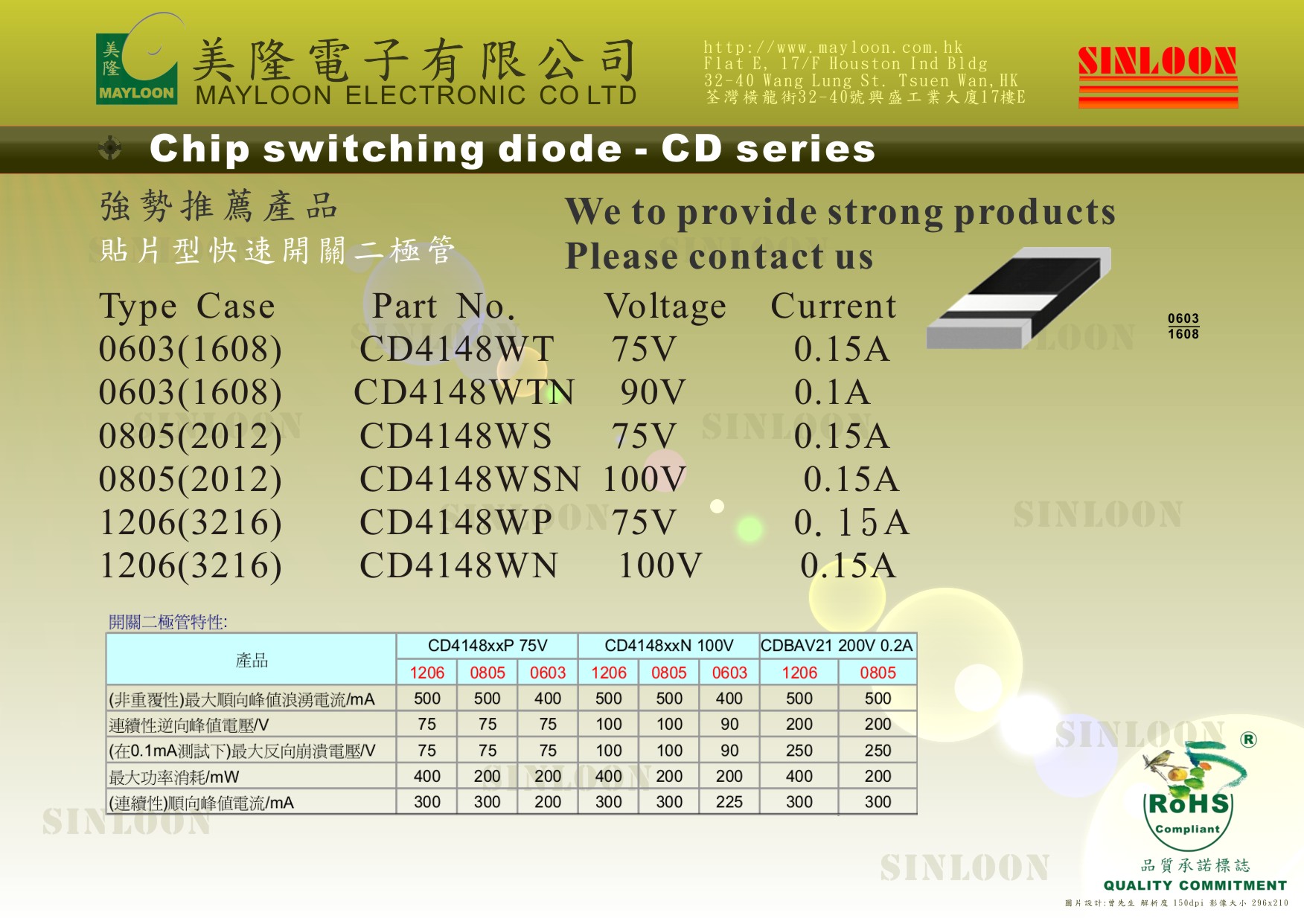

Chip Switching Diode - CD4148WTN (0603 90V 0.1A)
FEATUR
- Silicon epitaxial planar diode
- Surface comut patern , available in various dimension included 0805 & 1206
- Lead free and RoHS compliance components
- Fast AC switching input as rectified circuit and high reverse voltage location
| 產品 | CD4148xxP 75V | CD4148xxN 100V | CDBAV21 200V 0.2A | |||||
| 1206 | 0805 | 0603 | 1206 | 0805 | 0603 | 1206 | 0805 | |
| (非重覆性)最大順向峰值浪湧電流/mA | 500 | 500 | 400 | 500 | 500 | 400 | 500 | 500 |
| 連續性逆向峰值電壓/V | 75 | 75 | 75 | 100 | 100 | 90 | 200 | 200 |
| (在0.1mA測試下)最大反向崩潰電壓/V | 75 | 75 | 75 | 100 | 100 | 90 | 250 | 250 |
| 最大功率消耗/mW | 400 | 200 | 200 | 400 | 200 | 200 | 400 | 200 |
| (連續性)順向峰值電流/mA | 300 | 300 | 200 | 300 | 300 | 225 | 300 | 300 |
| Parameter at Tamb = 25℃ | (貼片二極管特性參數) | SINLOON® | ||||||||
| 型號 | 類型 | VRRM | IFSM | IF(AV) | 型號 | 類型 | VRRM | IFSM | IF(AV) | |
| Part No. | Type | (V) | (mA) | (mA) | Part No. | Type | (V) | (mA) | (mA) | |
| BAV19WS | SOD-323 | 100V | 250 | 400 | CD4148WSN | 0805 | 100 | 500 | 150 | |
| BAV20WS | SOD-323 | 150V | 250 | 400 | CD4148WSP | 0805 | 75 | 500 | 150 | |
| BAV21WS | SOD-323 | 200V | 250 | 400 | CD4148WTN | 0603 | 90V | 500 | 150 | |
| BAV56 | SOT-23 | 75 | 200 | 300 | CD4148WTP | 0603 | 75 | 500 | 150 | |
| BAV56W | SOT-323 | 75 | 200 | 300 | CDBAV21W | 1206 | 200 | 500 | 200 | |
| BAV70 | SOT-23 | 75 | 200 | 300 | CDBAV21WS | 0805 | 200 | 500 | 200 | |
| BAV70W | SOT-323 | 75 | 200 | 300 | CDBAW56 | SOT-23 | 70 | 200 | 200 | |
| BAV99 | SOT-23 | 75 | 200 | 300 | CDBAV70 | SOT-23 | 70 | 200 | 200 | |
| BAV99W | SOT-323 | 75 | 200 | 300 | CDBAV99 | SOT-23 | 70 | 200 | 200 | |
| CD4148WN | 1206 | 100 | 500 | 150 | IN4148W | SOD-123 | 75 | 200 | 150 | |
| CD4148WP | 1206 | 75 | 500 | 150 | MMBD4148 | SOT-23 | 75 | 200 | 300 | |
|
|
||||||||||
CD4148
