金屬釉高壓高阻值電阻
Metal Glaze High Ohm Resistor - MGHO
SCOPE: 電阻兩端鐵帽電極的距離1mm,可以承受1KV的脈衝高壓. |
This specification is available for Metal Glaze Resistor manufactured by Mayloon. |
The resistor is manufactured highly quality-controlled process and guaranteed high reliability. |
|
|
|
|
|
|
|
|
STANDARD MEASURING CONDITIONS |
Temperature 20±2℃, Humidity 65±5℃. |
Being on about about the judgment, measurements can be made within the following |
Temperature 5 ~ 35℃, Humidity 45 ~ 85%. |
|
|
|
|
|
|
|
|

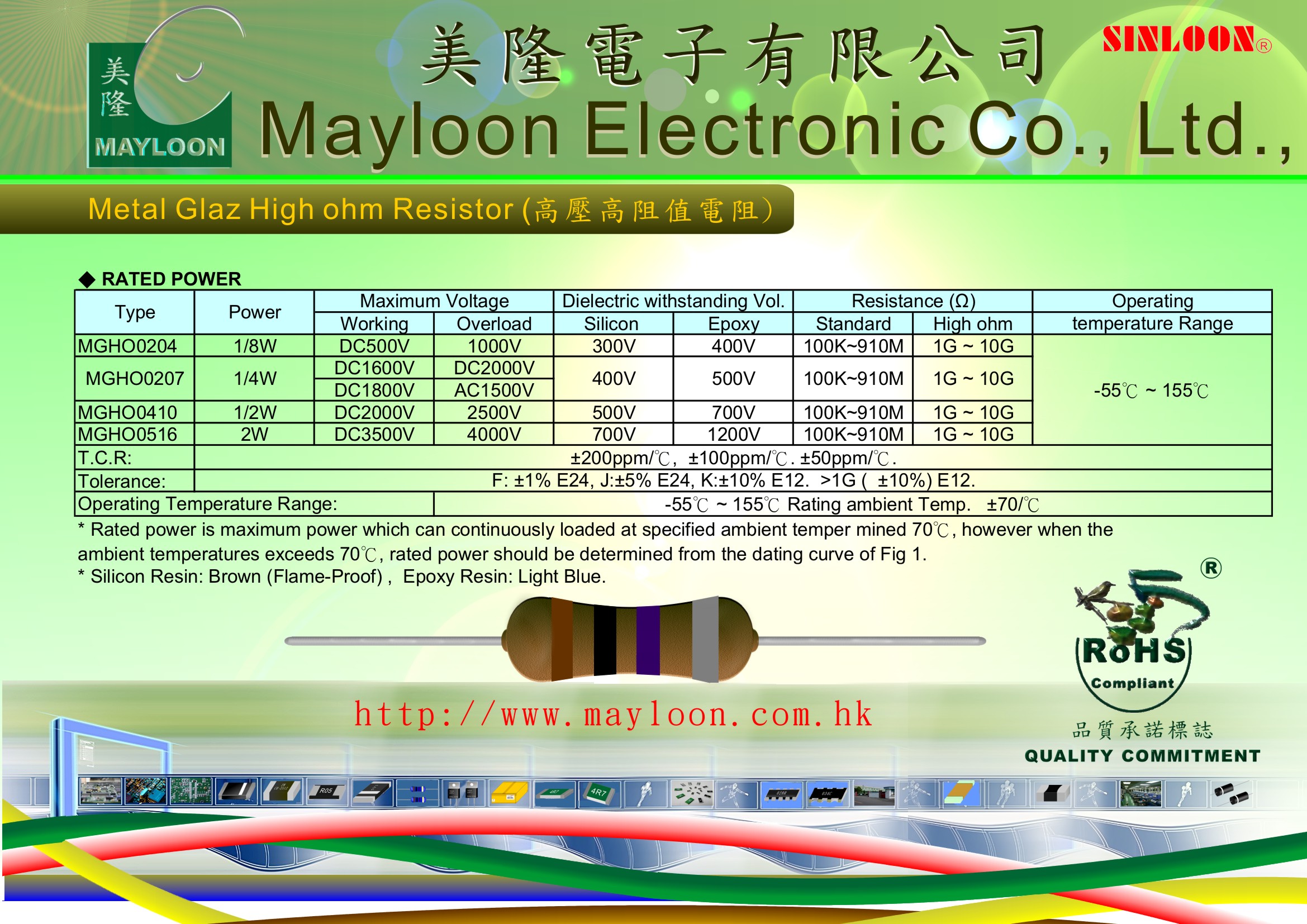

RATED POWER |
Type |
Power |
Maximum Voltage |
Dielectric withstanding Vol. |
Resistance (Ω) |
Working |
Overload |
Silicon |
Epoxy |
Standard |
High ohm |
MGHO0204 |
1/8W |
DC500V |
1000V |
300V |
400V |
100K~910M |
1G ~ 10G |
MGHO0207 |
1/4W |
DC1600V |
DC2000V |
400V |
500V |
100K~910M |
1G ~ 10G |
DC1800V |
AC1500V |
MGHO0410 |
1/2W |
DC2000V |
2500V |
500V |
700V |
100K~910M |
1G ~ 10G |
MGHO0516 |
2W |
DC3500V |
4000V |
700V |
1200V |
100K~910M |
1G ~ 10G |
T.C.R: |
±200ppm/℃, ±100ppm/℃. ±50ppm/℃. |
Tolerance: |
F: ±1% E24, J:±5% E24, K:±10% E12. >1G ( ±10%) E12. |
Operating Temperature Range: |
-55℃ ~ 155℃ Rating ambient Temp. ±70/℃ |
* Rated power is maximum power which can continuously loaded at specified ambient temper mined 70℃, however when the |
|
ambient temperatures exceeds 70℃, rated power should be determined from the dating curve of Fig 1. |
* Silicon Resin: Brown (Flame-Proof) , Epoxy Resin: Light Blue. |
|
|
|
|
|
|
|
|
|
|
